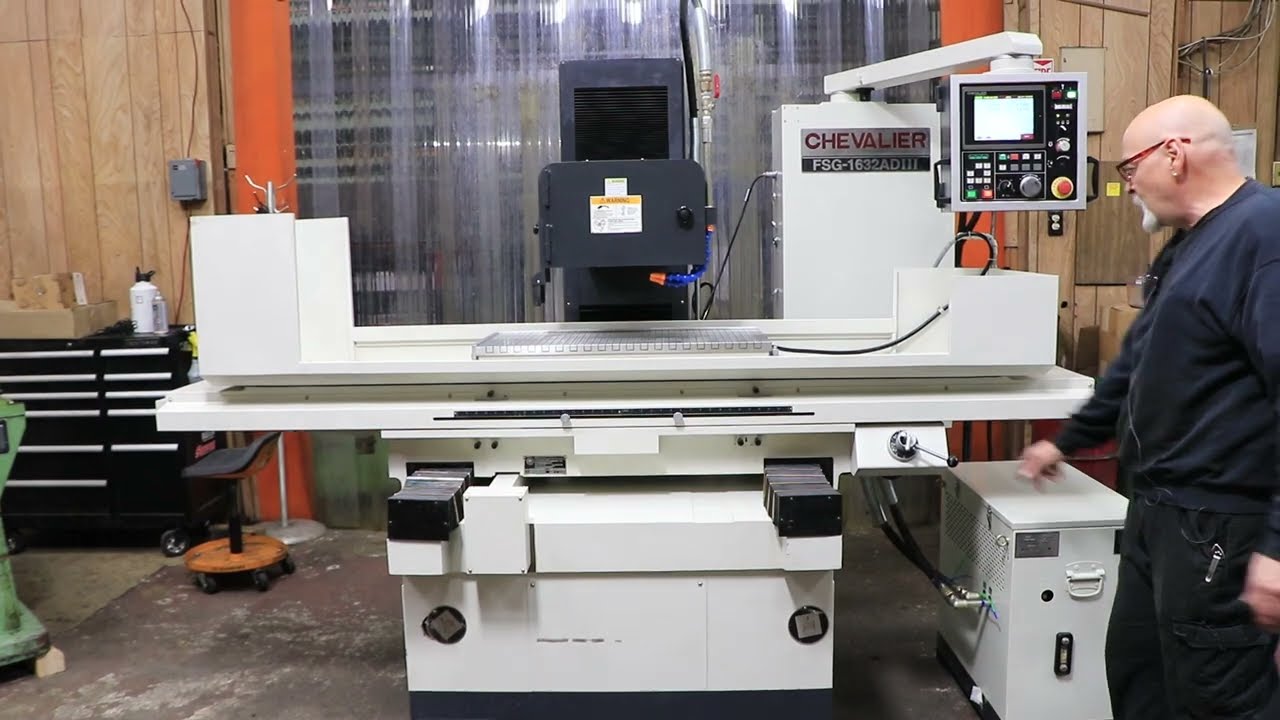

Chevalier FSG-1632 ADIV Automatic Precision Surface Grinding Machine

http://www.dugard.com for more information Features: PLC touch screen 3 axes fully automatic surface and plunge grinding system 10.4” TFT high resolution 65536 color control to ensure ease of operation High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding Remove period Wheel head will raise up to end, start and reference positions Table parks at left or right side after cycle is completed I/O diagnosis & alarm display To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material Remove period Automatic Dressing on Table Load Force Detection In-Machine Dynamic Balancing Variable Speed Spindle Specification: Touch Screen Monitor 3-Axis Fully Automatic Table Size (W x L): up to 400 x 1,000mm (16" x 40") Auto Dressing and Compensation (Optional) Elevation and Crossfeed are driven by Servo Motor 3-Axis Linear Roller Slide Way Max. Grinding Size: up to 400 x 1,000mm (16" x 40") Spindle Power: up to 5HP http://www.dugard.com for more information
