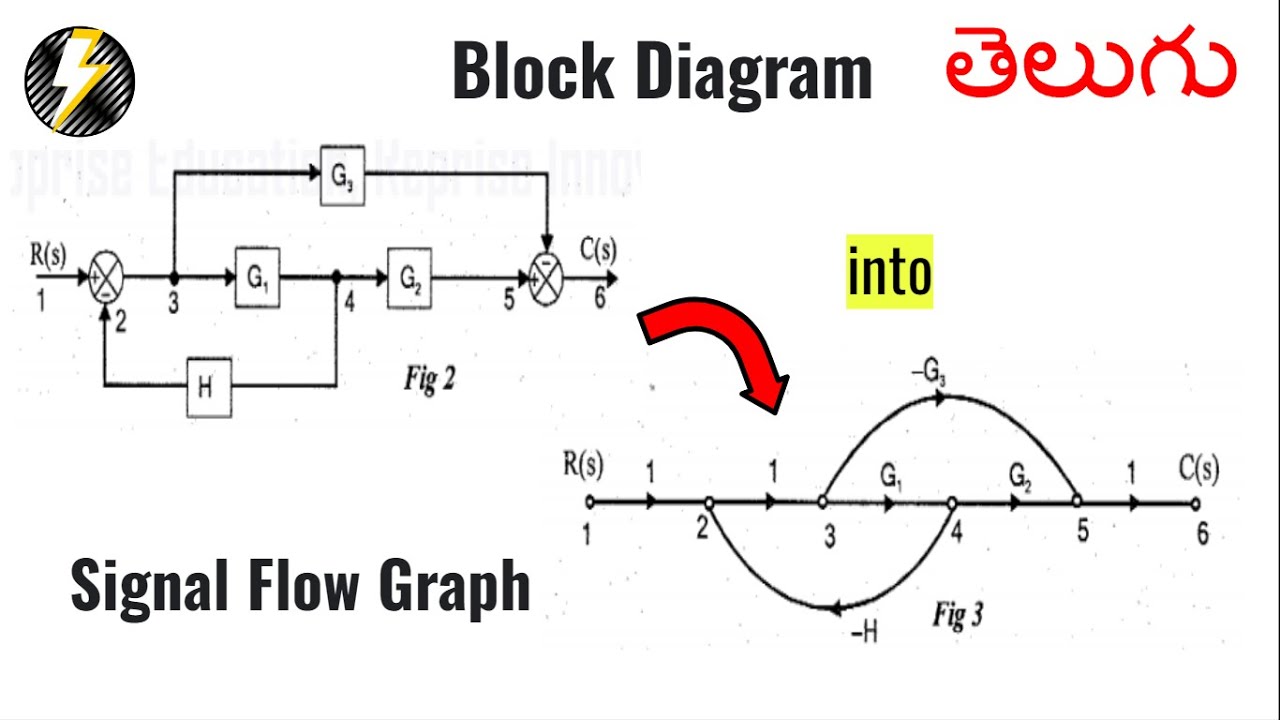

   • Understanding Block Diagrams and Signal Fl...   #transfer_function #control_system #Signal_Flow_Graph #problem_on_signal_flow_graph_in_telugu What is a Transfer Function IN TELUGU Conversion of Block Diagrams into Signal Flow Graphs Follow these steps for converting a block diagram into its equivalent signal flow graph. Represent all the signals, variables, summing points and take-off points of block diagram as nodes in signal flow graph. Represent the blocks of block diagram as branches in signal flow graph. Represent the transfer functions inside the blocks of block diagram as gains of the branches in signal flow graph. Connect the nodes as per the block diagram. If there is connection between two nodes (but there is no block in between), then represent the gain of the branch as one. For example, between summing points, between summing point and takeoff point, between input and summing point, between take-off point and output. Welcome to my YouTube channel, where you can learn everything you need to know about electrical and electronics in Telugu! I create clear and concise tutorials on a wide range of topics, including: Basic electrical and electronics concepts Electrical circuits Electronic components and devices Digital electronics Microcontrollers and embedded systems Robotics And much more! Whether you're a student, hobbyist, or professional, my channel has something to offer you. I'm passionate about teaching electrical and electronics, and I'm always looking for new and innovative ways to make my tutorials even better. Subscribe to my channel today to learn new skills, expand your knowledge, and stay up-to-date on the latest trends in electrical and electronics. Facebook -  / d.sandeepkrishna   Twitter -  / %40electricalande6   Instagram -  / eee_tutorials   #   / @electricalandelectronicstu1136
