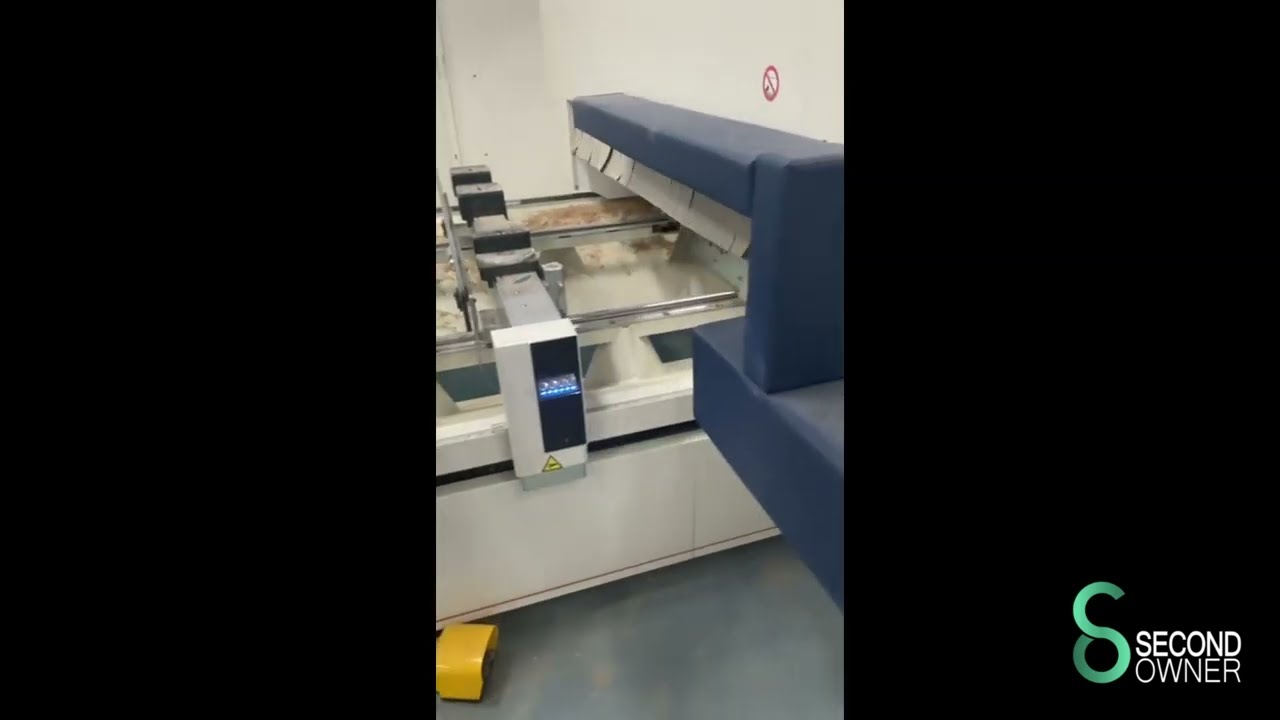

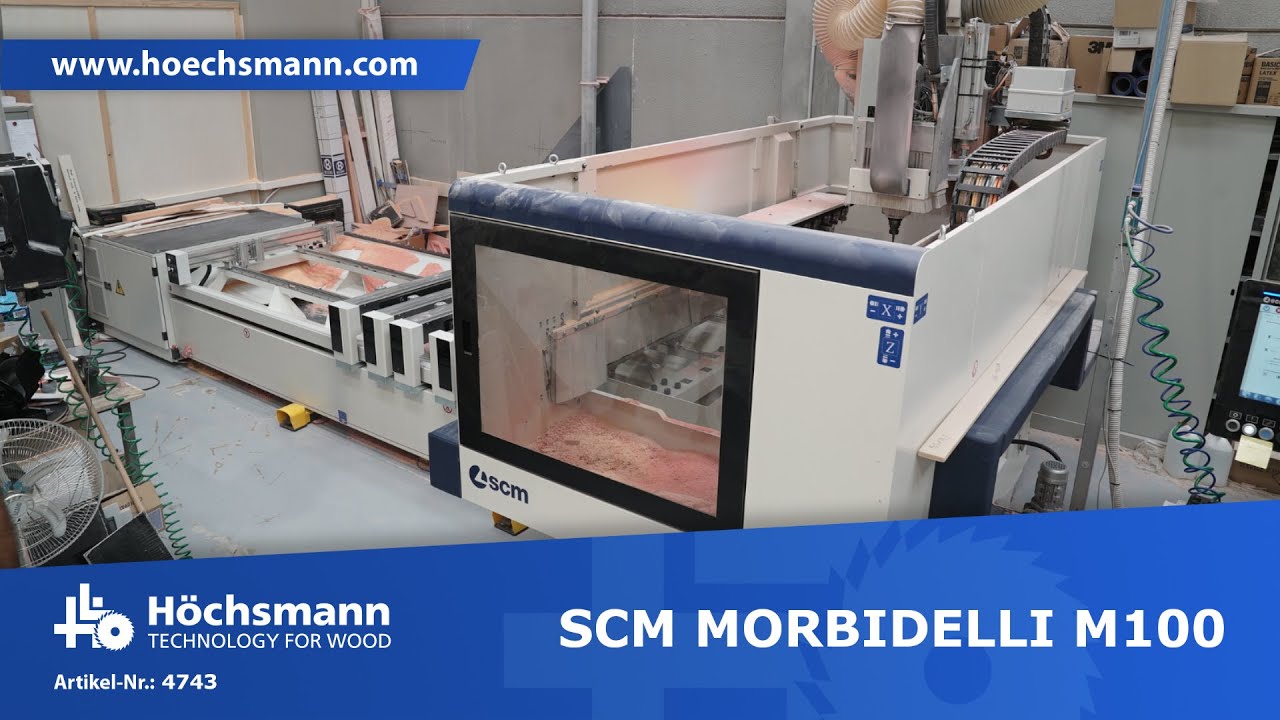

SCM Morbidelli Author M100 - Numerical controlled machining centres

Machine with very low usage hours (1015h) completed with several tools and upgrades. This highly modular machining centre provides answers to all the problems associated with woodworking, advanced materials processing and his superior technology for machining with 5 axes it´s and more features. For more specific details ´Download Brochure / SCM Link´. Brand: SCM Morbidelli Model: Author M100 Type: Numerical controlled machining centres Year: 2017 Made in Italy Technical specifications: Operation System: MAESTRO SUITE CAD/CAM programming software to design all the production processes. Working areas / Axes Working area X / Y axes: 5510 x 1320 mm Vectorial speed X/Y axes: 56 m/min. (ProSpace) / 78 m/min. (ProSpeed) Z- axis panel passage: 180 mm Routing Unit Motor power (máx.): 15kW / 20,5 hp Rotation speed (máx.): 24000 rpm Available tools on tool changer (máx.): 44 places Drilling Unit Independent vertical spindles (máx.): n. 21 Independent horizontal spindles (máx.): n. 12 Rotation speed (máx.): 8000 rpm Integrated blade in X, diameter: 125 mm Installation Exhaust air consumption: 4430 m³/h Exhaust air speed: 25 m/sec Exhaust outlet diameter: 250 mm 0-90° blade unit Motor power (máx.): 2,2 kW / 3 hp Rotation speed (máx.): 6000 rpm Auxiliary routing unit Motor power (máx.): 4,5 kW / 6 hp Rotation speed (máx.): 18000 rpm Dimensions: Length: 1550 mm Width: 2700 mm Height: 1550 mm Weight: 4900 kg Extras included: 15x tools / 1x Diamond, 1x straight, 1x Lamello cutter / Several drillings / 14 big , 7 small cups / 2x clamps. (Value of € 7.000,- approx.) Air filter system Laser measure feature Conveyor belt For more information, please contact us: contact@glomacht.com
