VETTER Krantechnik - DowelPlate-System VAS2 (mounting example)

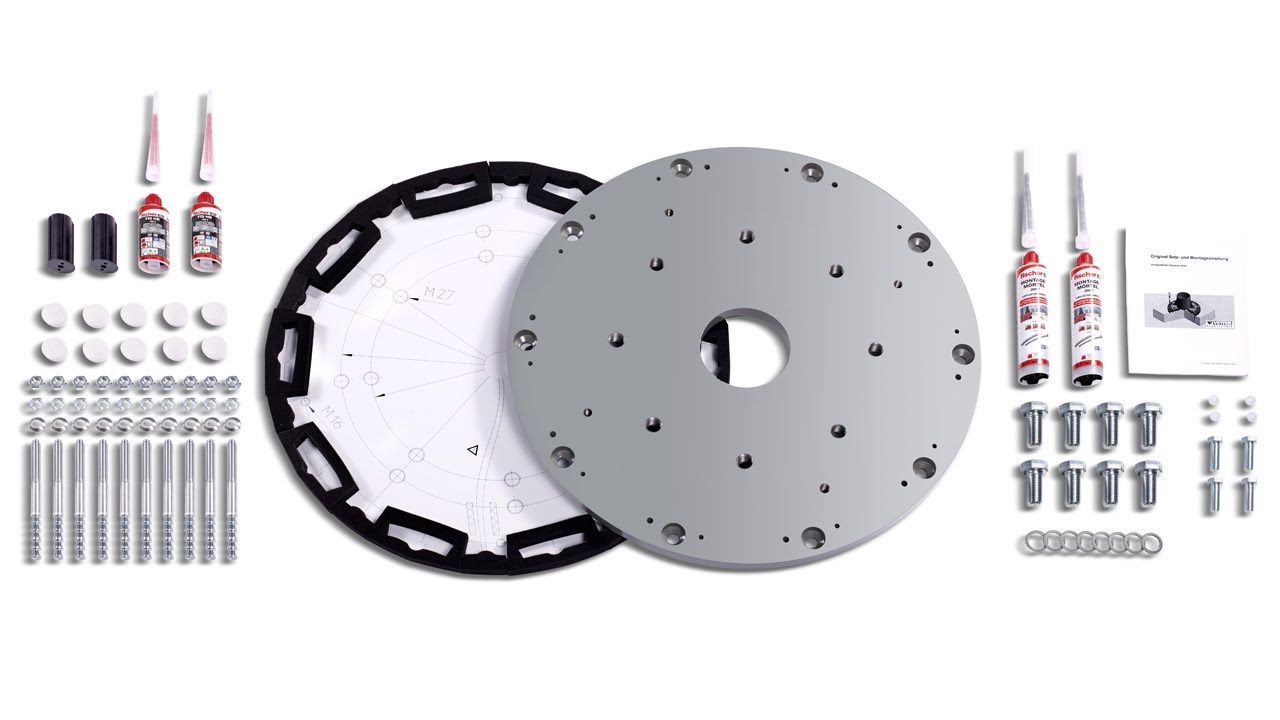

The VETTER-DowelPlate-System VAS2: Innovative system for dowelling slewing jib cranes on concrete floors - A smart plate follows the form The advantages at a glance: ======================= Quick and easy alignment of DowelPlate thanks to integrated levelling bolts Faster levelling of ground irregularities (up to max. 15 mm) thanks to defined, elastic supporting surface of VETTER levelling buffers – no time-consuming alignment. The buffer elements are filled with fast-curing special mortar to ensure uniform pressure load and immediate commissioning. Clearly presented assembly kit: All required components are packed in a well-structured way and contribute to a quick and easy assembly. No time-consuming foundation works – doweling directly onto hall floor (concrete floor/ceiling (C20/25) with a minimum thickness of 190 mm) Easy disassembly: Relocation of installed crane systems is much easier now. Removal of crane possible without any damage, no destruction of hall floor which is especially important for rented or leased halls. Dynamic DowelPlates, which are approved by construction authorities, provide for stability when anchoring dynamic loads No risk of tripping thanks to countersunk DowelPlates Easily accessible power supply between buffer elements
