How To Change Morso Blades

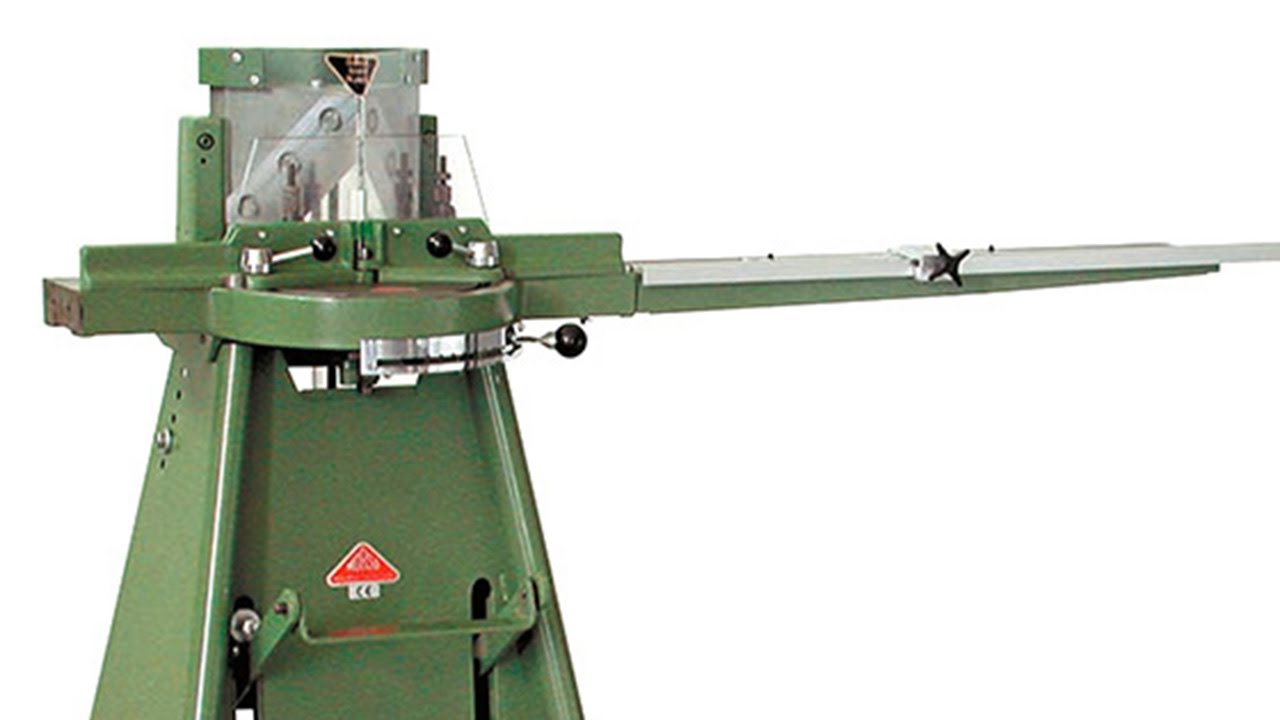

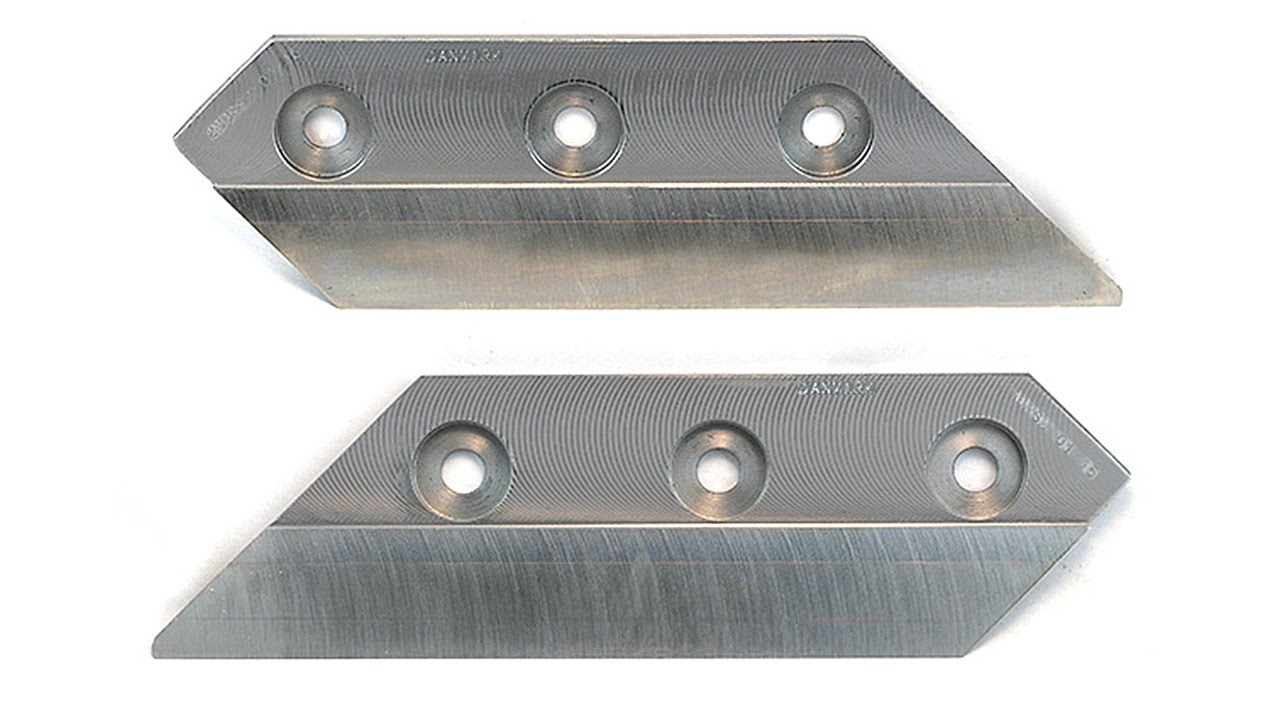

Watch how to change the blades on a Dan-list Morso Mitre Guillotine. Change Morso blades in 8 steps: 1) Lock down the foot pedal using the pedal adjuster and a 17mm socket spanner. 2) Loosen bottom blades with a T-handled 5mm hex key and remove them. 3) Loosen and remove bolts on both sides, top and bottom ones first. Lastly, the middle bolt and carefully lift the blade out. 4) Clean the blade holder with a dry, lint-free cloth. 5) Fit the new blades, starting with the middle bolt. Only hand tighten at this stage. 6) Use a large flat-bladed screwdriver to adjust positioning so that the bottom edges of the blades are aligned. 7) Fully tighten the bolts in the upper blades with your socket spanner. 8) Adjust bottom blades so that they just meet the top blades. Work front to back while raising the blades with the foot pedal. 9) Now the fixed bottom blades should be a smooth fit again the moving blades. Re-fit rebate supports and top guard. #pictureframes #pictureframing #pictureframe
