SOLIDWORKS What's New 2010: Section 31 - Event Based Motion Tutorial

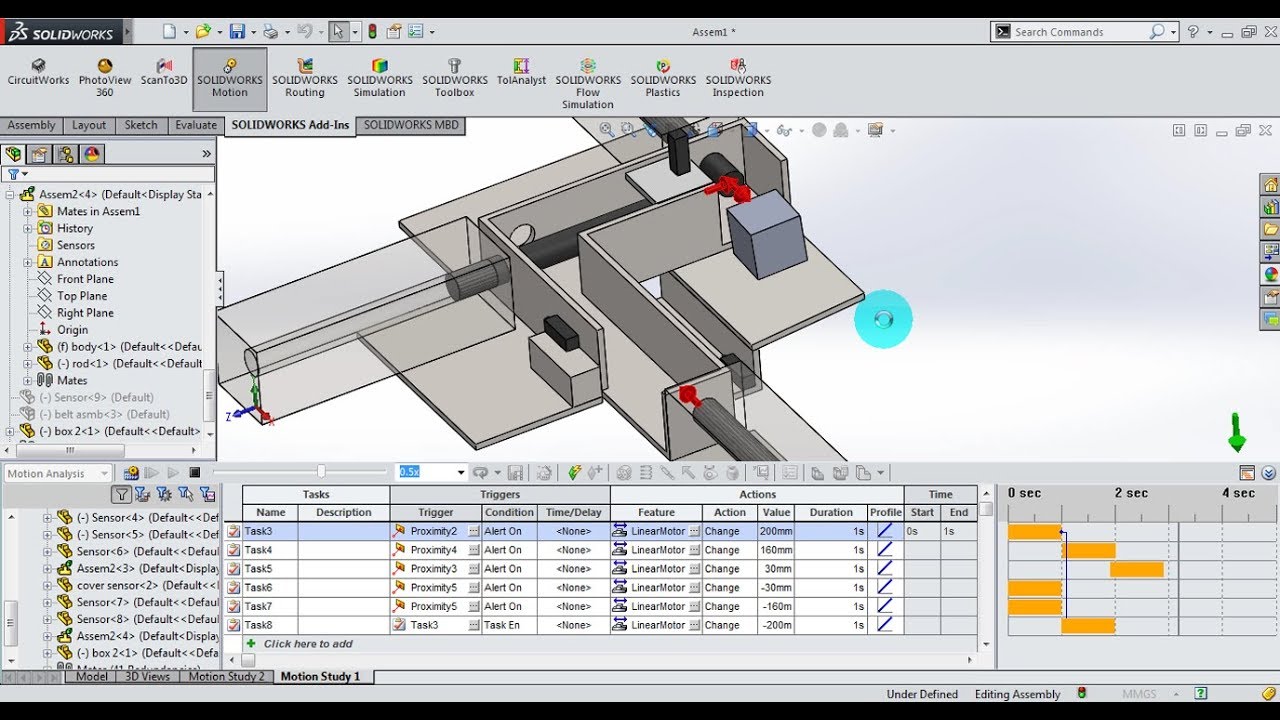

With SolidWorks Simulation® Professional added in, you can use Motion Analysis to calculate the motion of an assembly that incorporates event-based motion control. Event-based motion requires a set of tasks. The tasks can be sequential or can overlap in time. Each task is defined by a triggering event and its associated task action. Task actions control or define motion during the task. A task trigger is the event that drives the motion control action for a task. You can define task triggers based on time, previous tasks, or sensed values, such as component position. You can create triggers from: • Sensors: Interference detection Detects collisions. Proximity Detects motion of a body crossing a line. Detects the relative position of components from dimensions. Dimension • Previous tasks in the event schedule • Start and finish times for task actions A task action defines or constrains the motion of one or more components in the assembly. You can define actions to suppress or activate mates, stop motion, or to change values for motors, forces, or torques. You can define a task action to: • Start, stop, or change the value of a constant speed motor, constant force, constant torque, or a servo motor • Stop the motion 110 • Suppress a selected mate
