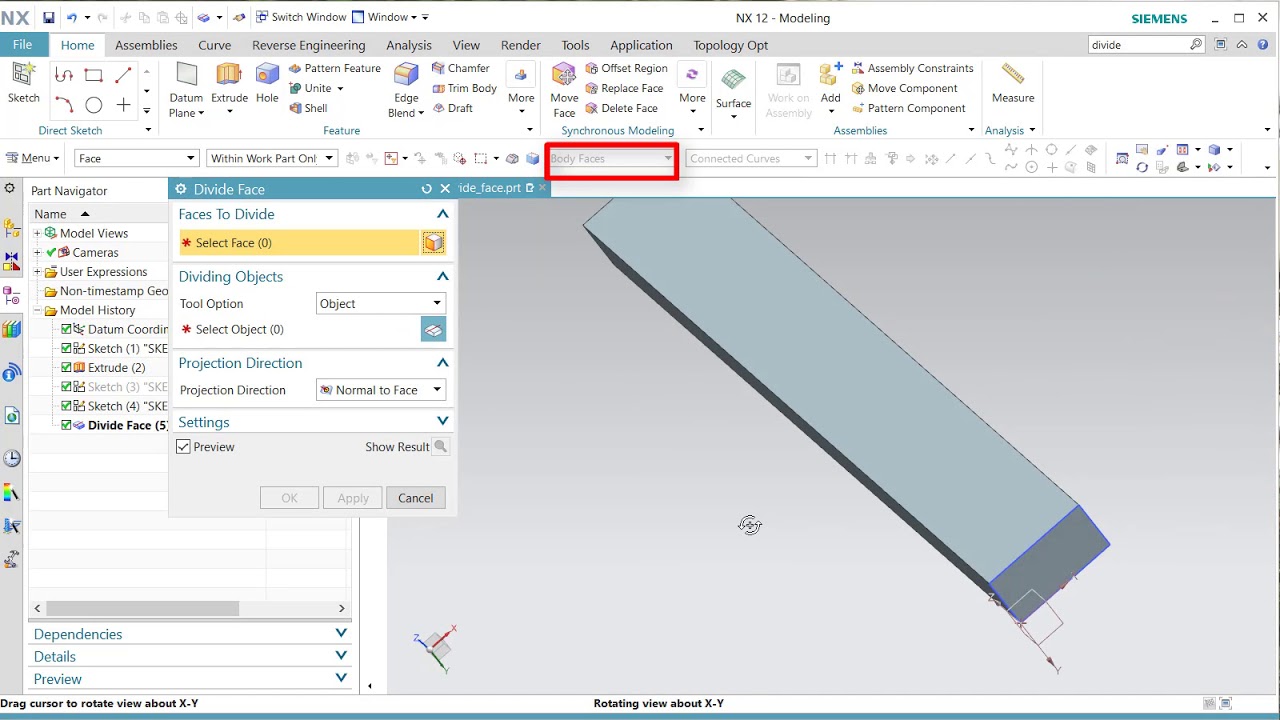

NX Modeling | Divide Face | How to use Divide Face in NX | #nxtutorials | NX CAD | cad2liv Learn NX basic tutorial how to use Divide Face, check it out!!! Learn how to effectively use the powerful Divide Face command in Siemens NX (Unigraphics)! This essential tool is crucial for preparing complex faces on 3D models for advanced operations like draft analysis, filleting of specific areas, applying split lines for molding, or setting up faces for texturing and FEA (Finite Element Analysis) meshing. This tutorial walks you through everything you need to know, from the basics to practical applications: What is Divide Face? Understand the core function of the command and why it's a vital part of your NX modeling workflow. Step-by-Step Guide: See a clear demonstration of how to activate and utilize the Divide Face tool. Key Methods & Options: Learn how to divide a face using different geometry types, including: Points and Edges: Splitting a face based on selected boundary geometry. Curves and Sketches: Using a 2D curve or sketch projected onto the 3D face to define the split. Planes/WCS: Cutting the face with a reference plane. Practical Examples: Watch a real-world example of preparing a complex part for a specific manufacturing or analysis task. 🎯 Perfect for: NX users of all skill levels, especially those involved in product design, mold design, or CAE preparation. #DivideFace #nxtutorials #nx2027 #siemensnx #modeling #cad2liv To subscribe our channel visit:    / @cad2liv   Please show your love & support: “Subscribe", "Like" and "Share"
