PLC Logic Gates - AND , OR , NOT , NAND , NOR , X-OR Gate function with ladder Logic diagrams. Hindi

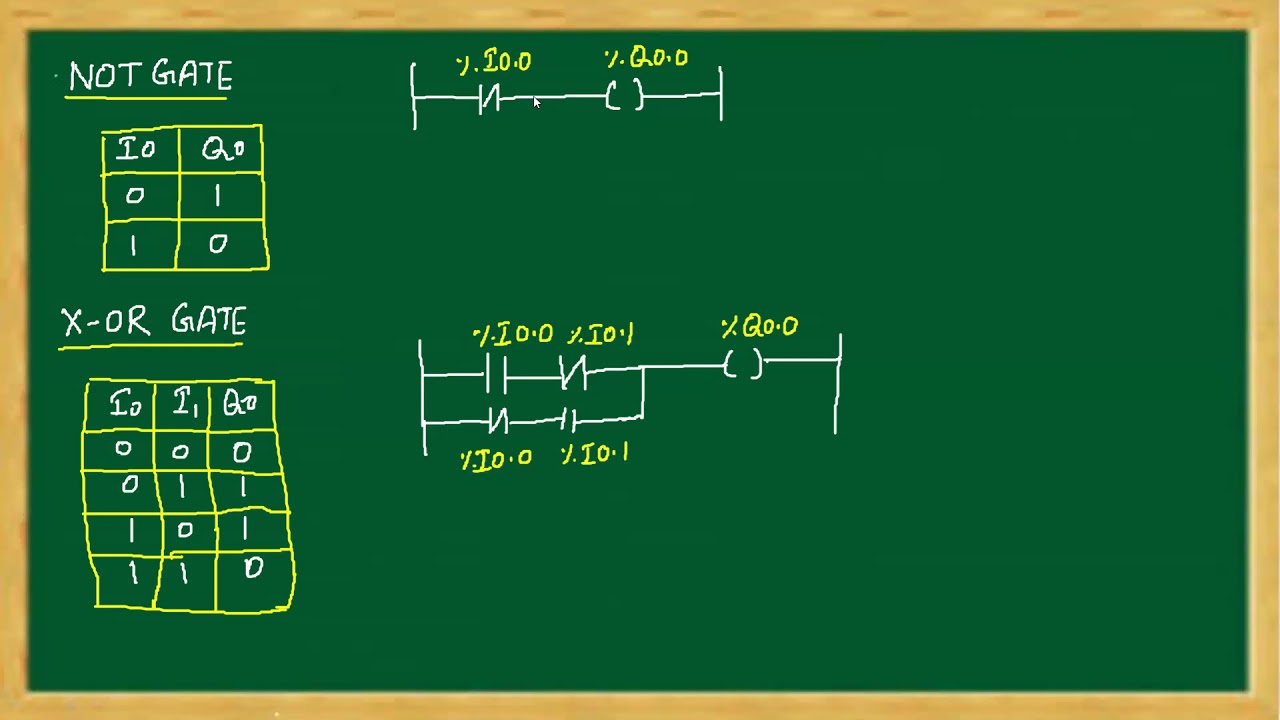

Free PLC and SCADA Training Courses In this video, we will learn the PLC logic gates tutorial of AND , OR , NOT , NAND , NOR , X-OR function with ladder logic diagrams. Connect with us: https://ageinautomation.com/plc-inter... support@agein.in https://agein.in/plc-scada-automation...   / ageingroup     / agein-group   What is ladder diagram? Ladder diagrams are specialized schematics commonly used to document industrial control logic systems. They are called “ladder” diagrams because they resemble a ladder, with two vertical rails (supply power) and as many “rungs” (horizontal lines) as there are control circuits to represent. Example of ladder diagram via basic logic gates:- AND gate:- By connecting Normally Open / XIC contacts in series, AND gate can be implemented. When both inputs are set to 1, then and then only output goes high. OR gate:- By connecting Normally Open / XIC contacts in parallel, OR Gate can be implemented. When either input is set to high, output goes high. NOR gate:- By connecting Normally Closed / XIO contacts in series, NOR Logic Gate can be implemented. If both inputs are reset to 0, output goes High otherwise remains in Low state. Or by inverting output of a OR Gate, that is by using output of OR Gate as an input of NOT Gate, NOR Gate can be implemented. NAND gate:- By connecting Normally Closed contacts in parallel to each other, NAND Gate can be implemented. Or by simply inverting output of AND gate, NAND Gate can be implemented. NOT gate:- By using just one Normally Closed / XIO contact, NOT Logic Gate can be implemented. Inverted state of input is obtained as an output. Ex-OR gate:- By connecting XIC and XIO in series with parallel to XIO and XIC in series as shown in diagram above, EX-OR Gate can be implemented. When both inputs are identical, output is 0. Output is high when A ≠ B. Note here that XIC of first series contacts and XIO of second series contacts must be given same address and similarly for the other two. Ex-NOR gate:- By connecting two XIO contacts in series with parallel to two XIC contacts in series, EX-NOR gate can be implemented. When both inputs are identical A=B=O or A=B=1, output goes high. It implies same here as in EX-OR gate that address must be given same. – By inverting output of EX-OR gate, implementation of EX-NOR can be accomplished. our other Lectures: 1. Wiring of 4-wire Transmitter & 2-wire Transmitter. 4-वायर ट्रांसमीटर और 2-वायर ट्रांसमीटर की वायरिंग। Hindi version    • 4-20 mA Transmitter Wiring: 4wire Transmit...   English version    • How to wire a 4-20mA transmitter?|2wire (L...   2. what is a PID & how does it work ? | PID Controller क्या है और यह कैसे काम करता है?    • PLC Training | what is a PID & how does it...   3. PLC Programming in RsLogix500 | Explanation of OR Gate | Practical Testing    • PLC Training | PLC SCADA Programming | RsL...   4. PLC Input/output wiring Concept of Sinking and Sourcing    • PLC Training | sinking & sourcing | what i...   5. Analog Input Scaling in PLC RSLogix5000 | How to scale a 4-20 mA transmitter signal ?    • PLC Training | Analog Input Scaling in PLC...   6. PLC Programming for Beginners | Micro800 programming Step-by-step    • Allen Bradley Micro800 PLC Programming | C...   7. What is SCADA & How does it work? What is the purpose of SCADA? | Buttons in SCADA    • What is SCADA & How does it work? What is ...   9. Introduction Micro810 PLC | USB Adaptor | LCD | Ladder programming in CCW    • PLC Training | Introduction Micro810 PLC |...   10 HOW TO SET IP ADDRESS IN MICRO820 PLC | BOOTP/DHCP CONFIGURATION    • PLC TRAINING | HOW TO SET IP ADDRESS IN MI...   11 How to Reset Fault in MicroLogix1400 PLC? | How to Clear Fault in PLC?    • PLC Training | How to Reset Fault in Micro...   12 What are Analog Tags? |digital vs analog tag| What are comparators?    • Allen Bradley Micro800 PLC | Chapter-4 Par...   #s71200 #siemens #TIAPortal #agein
