Lower Leg Support | Device Setup and Positioning

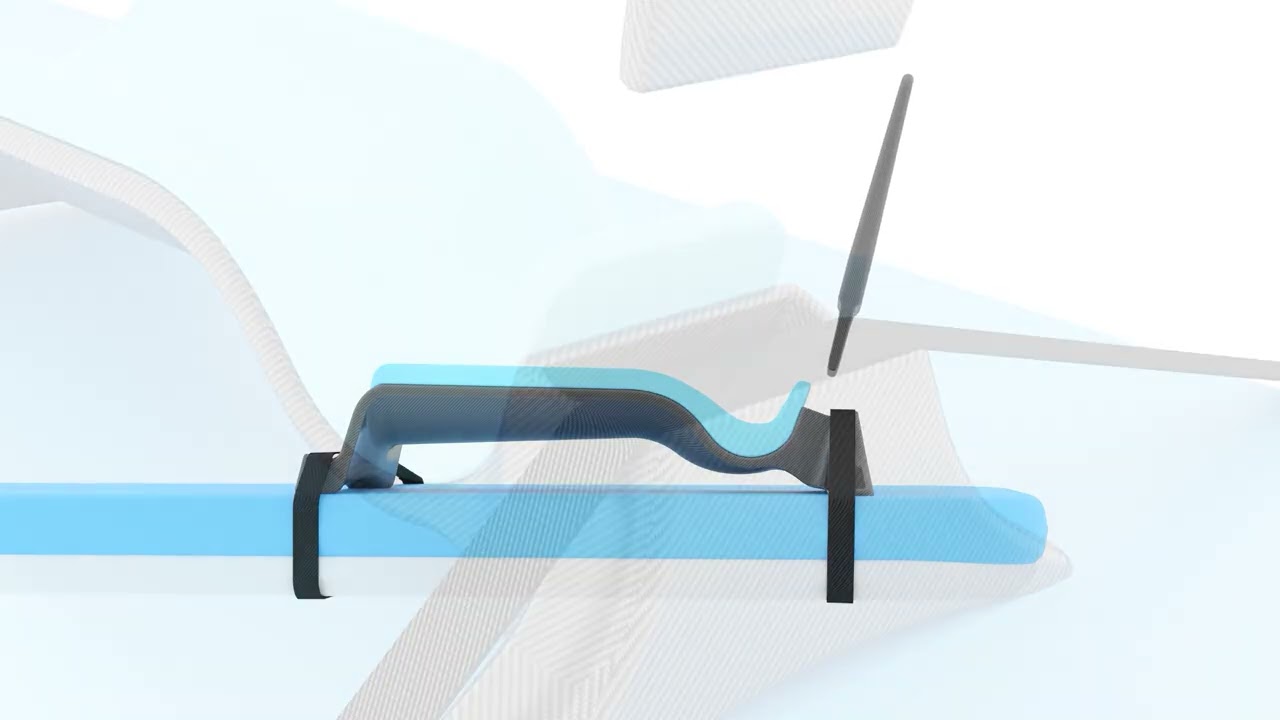

Ensure the side-release clip buckles on the table straps face the side opposite the leg being worked on, with the webbing running off the table edge. Secure one table strap near the bottom of the narrow end of the table and position the second strap approximately 500mm above it. Place the patient on the imaging table in a suitable orientation for an antegrade approach. Position the patient with the ankle by the bottom table strap and the knees by the top strap. Once positioned, place the Lower Leg Support on the table. Lift the patient’s leg onto the device, positioning it so the ball of the foot rests firmly against the foot plate. Adjust the location of the Leg Support up or down the table if required. Once both the patient and the Lower Leg Support are correctly positioned, lift the table straps onto the strap surfaces at either end of the Leg Support. You may need to slide the straps slightly to align them. Tighten both table straps firmly to immobilise the Lower Leg Support.
