How to Install the Kinetrol AP Pneumatic Postioner

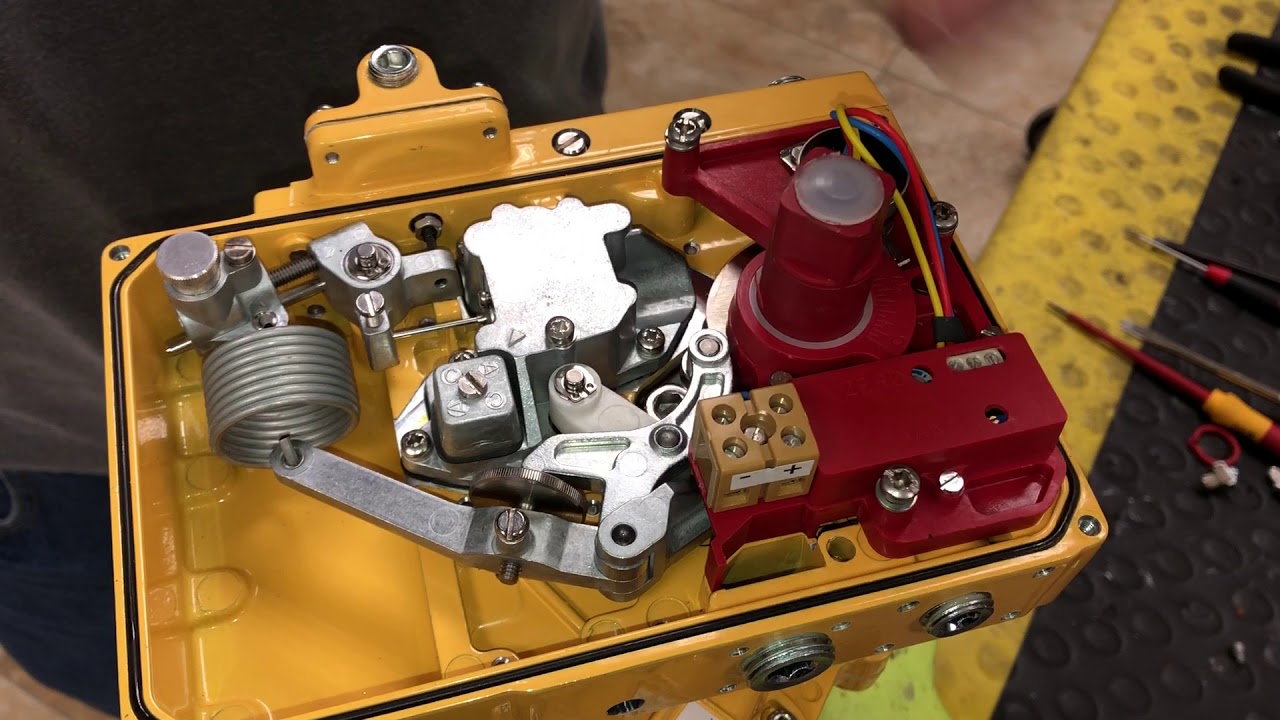

This video describes how to install a Kinetrol AP pneumatic positioner on a Kinetrol vane actuator. The Kinetrol AP positioner moves an actuator to a position set by a 3-15 psi control signal and holds it there. It is designed to drive a rotary or linear actuator to a position set by a 3-15 psi (0.2 to 1.0 bar) signal and hold it there until the signal changes. When a signal pressure is applied to the diaphragm it moves the force balance lever clockwise against the tension of the feedback spring. This moves the spool valve, supplying air pressure to one side of the actuator while exhausting trapped air from the other side. The feedback shaft follows the movement of the actuator and turns the cam counter clockwise, pushing the cam follower and increasing the tension on the feedback spring until it balances the forces on the diaphragm and moves the spool valve to its hold position. The input signal and desired position is determined by the cam profile. A cam giving 0-90° output movement linearly proportional to a 3-15 psi (0.2-1.0 bar) signal is standard, and almost any desired characteristic can be supplied to order; if it cannot be found in the list of existing options contact Kinetrol. Elevate your understanding of pneumatic positioning technology with Kinetrol. For additional details and inquiries, don't hesitate to reach out by visiting https://www.kinetrol.com/
