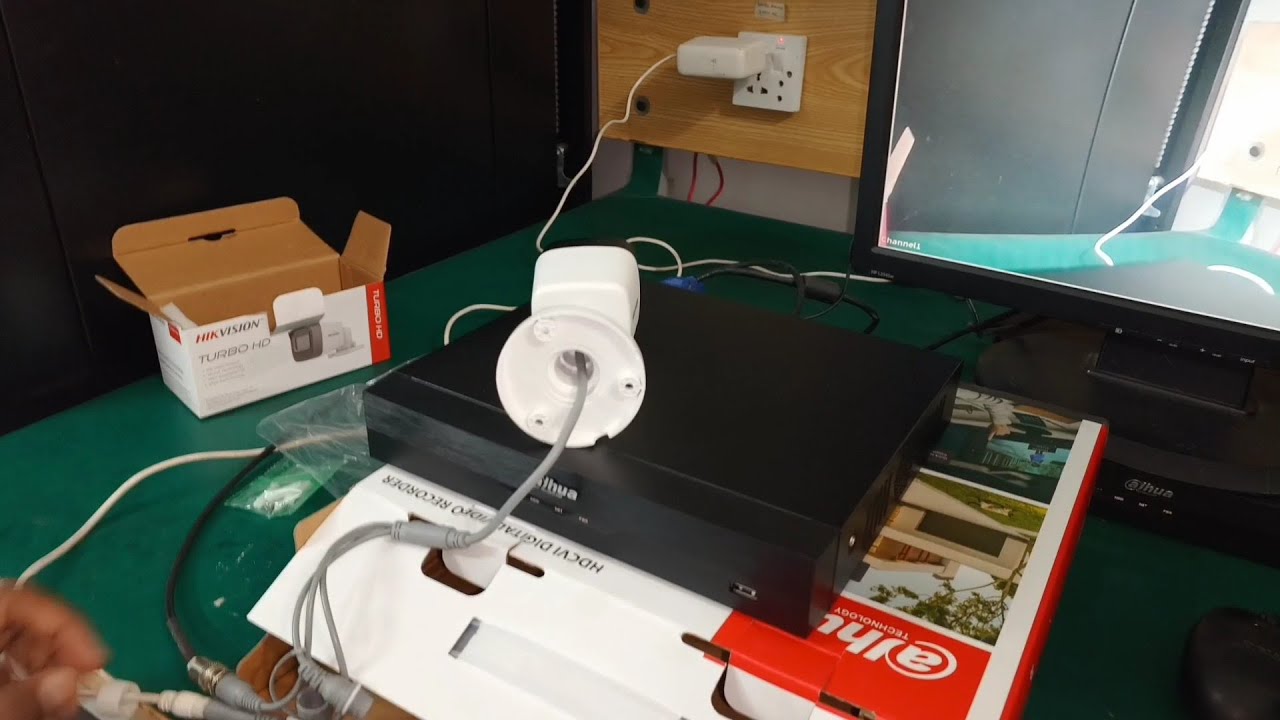

Title: "Connecting Your Analog DVR System: BNC, DC, Power, and RJ59 Cable Setup Guide" Video Description: Welcome to Netcam Solutions! In this tutorial, we'll guide you through the process of connecting your analog DVR system using BNC, DC power, and RJ59 cable to your cameras. Whether you're setting up a new surveillance system or troubleshooting an existing one, this step-by-step guide will help you make the right connections. Timestamps: 0:00 - Introduction 0:32 - Components You'll Need 1:10 - Connecting BNC Cables 2:25 - Powering Your Cameras 3:45 - Connecting the RJ59 Cable 5:12 - Testing Your System 6:30 - Troubleshooting Tips 7:15 - Conclusion Components You'll Need: Analog DVR System Analog Cameras BNC Cables DC Power Adapters Power Supply Unit RJ59 Cable Monitor (for testing) Steps: 1. Connecting BNC Cables: Locate the BNC connectors on both your DVR and cameras. Plug one end of the BNC cable into the DVR's BNC input. Connect the other end of the BNC cable to the camera's BNC output. Ensure that the connections are secure. 2. Powering Your Cameras: Attach the DC power adapter to the camera. Connect the DC pin from the adapter to the camera's power input. Plug the other end of the DC power adapter into the Power Supply Unit. Ensure that the power connections are secure. 3. Connecting the RJ59 Cable: RJ59 cable contains both video and power wires in one cable. Connect one end of the RJ59 cable to the DVR's BNC output. Attach the other end of the RJ59 cable to the camera's BNC input. Make sure the connections are secure and properly fastened. 4. Testing Your System: Power on your DVR and monitor. You should now see video from your cameras on the monitor. Test each camera to make sure all connections are functioning properly. 5. Troubleshooting Tips: If you encounter any issues, check all connections. Ensure that the power supply unit is providing the correct voltage. Verify that the BNC connections are tight and secure. Check for any damaged cables or connectors. 6. Conclusion: Congratulations! You've successfully connected your analog DVR system to your cameras using BNC, DC, power, and RJ59 cables. If you found this tutorial helpful, please like and subscribe for more helpful tips and tutorials from Netcam Solutions. Remember, if you have any questions or encounter issues, feel free to leave a comment, and we'll do our best to assist you. Thanks for watching, and stay tuned for more great content from Netcam Solutions! #netcamsolutions #analogcamera #dvr #bnc #dc #connectors
