Lamberet - SR2 Heavy Duty - Trailer Award 2011 (International Heavy Vehicles Courtrai Show)

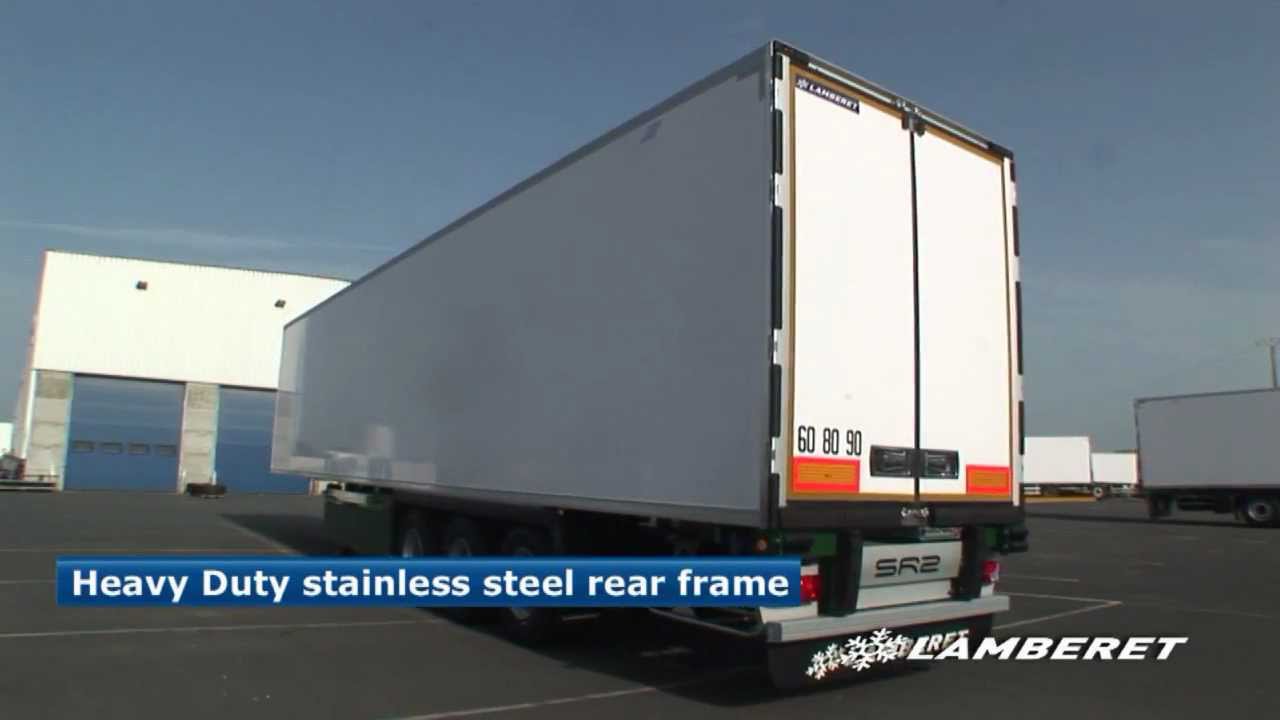

Refrigerated transport is evolving. Distribution through its intensive urban delivery cycles is putting new constraints on the equipment. The SR2 Heavy Duty, dedicated to the distribution trade, reinforces to the maximum all the stress zones. Our expertise in the implementation of composite materials and our progress in the control of weight enable us to offer an exceptional robustness while maintaining a maximised useful load and a minimised consumption of fuel. In order to sustain frequent couplings the SR2 Heavy Duty is equipped with a reinforced floor and a boxed front chassis module. In order to withstand the frequent platform loading/unloading operations, the rear stainless steel frame is fixed directly to the reinforced internal hinged edge of the panels and integrates a 12 mm triple-fold stainless steel threshold. Assembled by bolting, without any welding and therefore no weakness, with a VHYS(1) steel body structure, it ensures maximum rigidity. The frame is protected from impacts with 60 mm buffers. The 8 double-knot stainless steel hinges move away and protect the doors from the contact area. The shocks are absorbed by the rear chassis module through elastomer-steel rollers and large central buffers. Finally, the panel assembly is also equipped with specific and targeted reinforcements.
