(T-Car) Conveyor System - No Sound (Conveyors Help Beat the Heat)

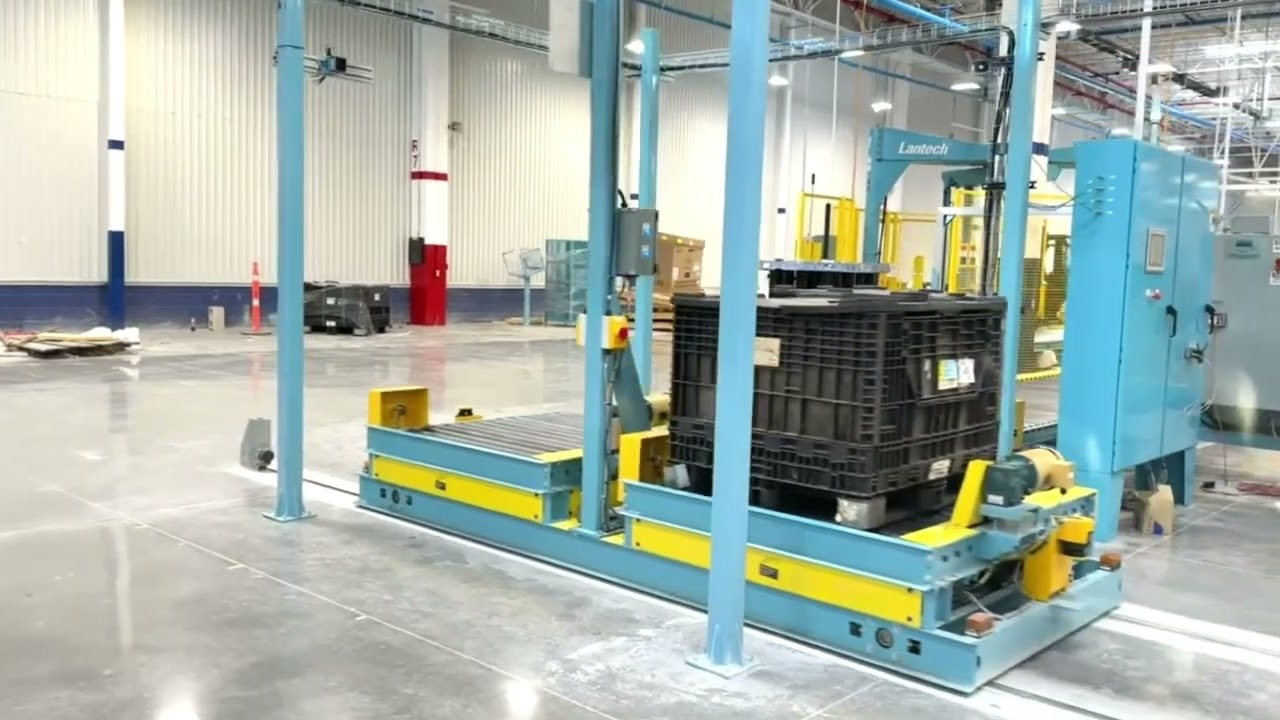

The project required a conveyor system to transport pallets of manually palletized scroll compressors from a pack-out area to a downstream strapping and wrapping line. The system needed to handle loads up to 2,700 lb. and accommodate two different types of pallets – a 4-way double-winged pallet and a larger CHEP-style pallet. The primary challenge in the application was to maintain accessibility to the manual packing area. The redesign ensured that this area remained fully accessible by avoiding the installation of a permanent conveyor line. This was crucial to enable the retrieval of components and pallets from this area during occasional line stoppages, without any obstructions. Innovative Design Features 1. Smart Laser Sensors: The transfer car was outfitted with advanced smart laser sensors at both the front and back, enhancing precision and safety in navigation. 2. Visibility and Audibility Enhancements: Four amber lights were installed at the corners of the car for improved visibility, accompanied by two horns to make the moving T-Car audible, thereby alerting nearby personnel. 3. Overhead Energy Chain: To power the T-Car and maintain a safe environment, Alba implemented an energy chain that was strategically positioned overhead. This design choice kept the energy supply out of the way of floor traffic, mitigating any potential safety hazards. 4. Support Structure for Energy Chain: The energy chain was supported by floor-mounted posts holding a formed cable tray, in which the energy chain laid and moved as the T-Car traversed back and forth. This setup ensured a clean and organized movement of the cables. 5. Elevated Mast Design: The T-Car featured a high mast that extended above the vehicle, routing cables up to the overhead energy chain. This arrangement kept the electrical connections elevated, avoiding interference with pedestrian traffic. 6. Embedded Track Design: The tracks for the T-Car were embedded in the floor at the final installation site to minimize trip hazards. This design not only enhanced safety but also preserved the usability of the space. 7. Extended Track with Safety Stops: The T-Car operated along a 48-foot-long galvanized track, which included stops at both ends to prevent the car from over-traveling, ensuring additional safety and reliability during operation. These design features showcased Alba's commitment to innovative solutions that enhance operational efficiency while prioritizing safety and accessibility. If you're seeking dependable and innovative material handling systems, Alba Manufacturing is your go-to partner. We have the expertise to address and resolve your most challenging applications. Visit us at www.albamfg.com or contact us at (866) 252-2634 to discover how we can assist you.
