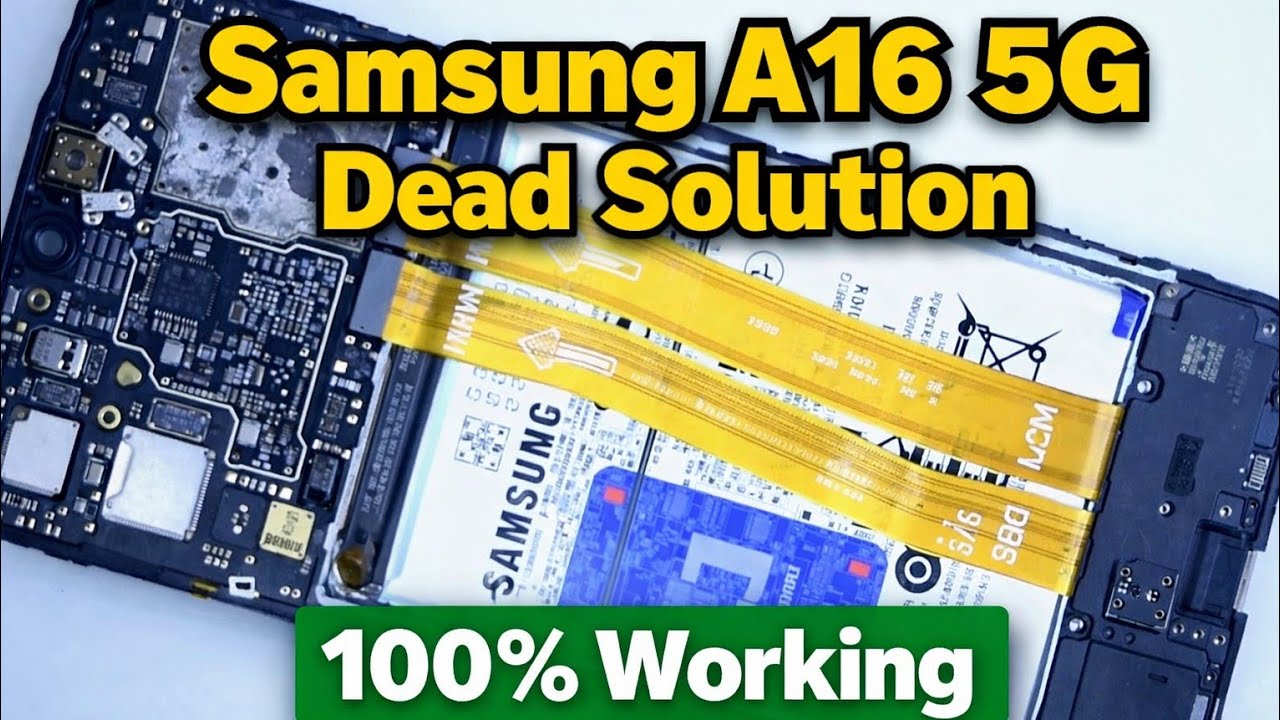

Samsung A16 5G DEAD SOLUTION

🔧 In this Samsung A16 5G repair video, we solve a classic "dead phone" symptom. The device was not powering on and showed an auto current consumption of 250mA when voltage was injected. The culprit? A shorted capacitor on the critical PMID line of the charging IC. 📈 Symptom & Initial Diagnosis: · Device: Samsung Galaxy A16 5G · Symptom: Completely dead, no signs of life. · Initial Test: Injected 4.2V on the battery connector. · Finding: Auto current consumption of ~250mA, indicating a partial short or leakage on a main power line. 🔍 Repair Process Step-by-Step: 1. IC in Focus: The Charging IC (UCCVA model) was the primary suspect for power management issues. 2. Pin Check: All 24 pins of the UCCVA IC were checked for shorts to ground. 3. Fault Found: Pin 23 (PMID - Power Middle Voltage) was found SHORTED to Ground. 4. Isolating the Fault: The PMID line is connected to a 10µF decoupling capacitor. Rosin flux was applied to the capacitor and charging IC area. 5. Smoke Test: 4.2V was carefully injected directly onto the PMID capacitor. The flux under the capacitor melted instantly, confirming it as the shorted component. 6. Solution: The shorted 10µF capacitor was removed and replaced with a new one. ✅ Result: After replacement, the short on the PMID line was cleared. The phone booted up normally, and charging functionality was fully restored. Problem Solved! ⚠️ Important Disclaimer: This video is for educational and informational purposes only. Mobile phone repair involves risks of permanent damage. This is a technical case study aimed at experienced technicians. If you are not qualified, please seek help from a professional repair shop. We are not responsible for any damage to your device. --- 📂 Video Chapters / Timestamps: 0:00 - Device Symptom & Introduction 0:53 - Motherboard Overview & Charging IC Location 1:28 - Initial Power Injection Test (250mA consumption) 2:33 - Identifying UCCVA IC & Checking PMID Pin (Pin 23) 6:16 - Finding the Short to Ground 8:30 - Applying Rosin Flux for Visual Inspection 8:48 - Voltage Injection on PMID Capacitor - SMOKE TEST Reveals Fault 9:22 - Removing the Shorted 10µF Capacitor 10:50 - Replacing with a 10µF Capacitor & Verification 12:53 - Post-Repair Test - Phone Powers On! 13:49 - Success --- 🔎 Relevant Keywords: Samsung A16 5G Dead Repair, Samsung A16 5G No Power, PMID Short, UCCVA Charging IC, 250mA Auto Consumption, Phone Repair, Microsoldering, Short Circuit Finding, Voltage Injection, Smoke Test Method, Decoupling Capacitor, Mobile Repair Tutorial, Hardware Solution, PCB Repair, Motherboard Repair. 📢 Connect & Support: If you found this deep-dive repair helpful, please give the video a THUMBS UP and SUBSCRIBE for more real-world repair case studies! Leave a comment below if you have questions (remember, for educational purposes). #SamsungRepair #A16Repair #PMIDShort #UCCVA #MobileRepair #HardwareRepair #ShortCircuit #Technician #RepairTutorial #LogicBoardRepair
