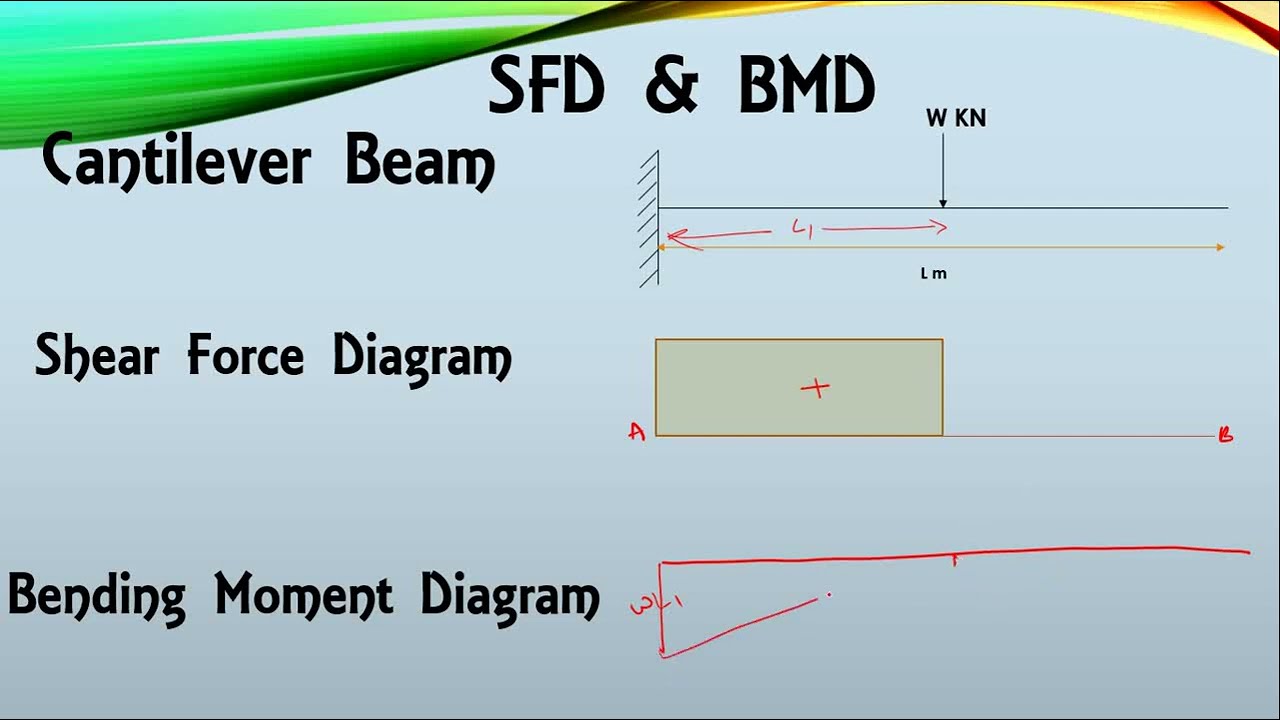

SFD & BMD of a Cantilever Beam having Point load at free end ||

The algebraic sum of all vertical force acting on the structure is known as shear force. The force acting on it may be toward upward or toward the downward direction. It’s SI unit is Newton (N) The algebraic sum of all moments acting on the structure is known as bending moment. It may be toward a clockwise direction or maybe an anti-clockwise direction. It’s SI unit is Newton-meter (N-m) Shear force Diagram (SFD) due to different load 1. Point load makes Constant Diagram 2. Uniformly Distributed Load (UDL) makes Linear Diagram 3. Uniformly Variable load (UVL) makes Parabolic Diagram Bending Moment Diagram (BMD) due to different load 1. Point load makes Linear Diagram 2. Uniformly Distributed Load (UDL) makes Parabolic Diagram 3. Uniformly Variable load (UVL) makes the Curve Diagram
