What is electromagnetic flow meter and how it works?

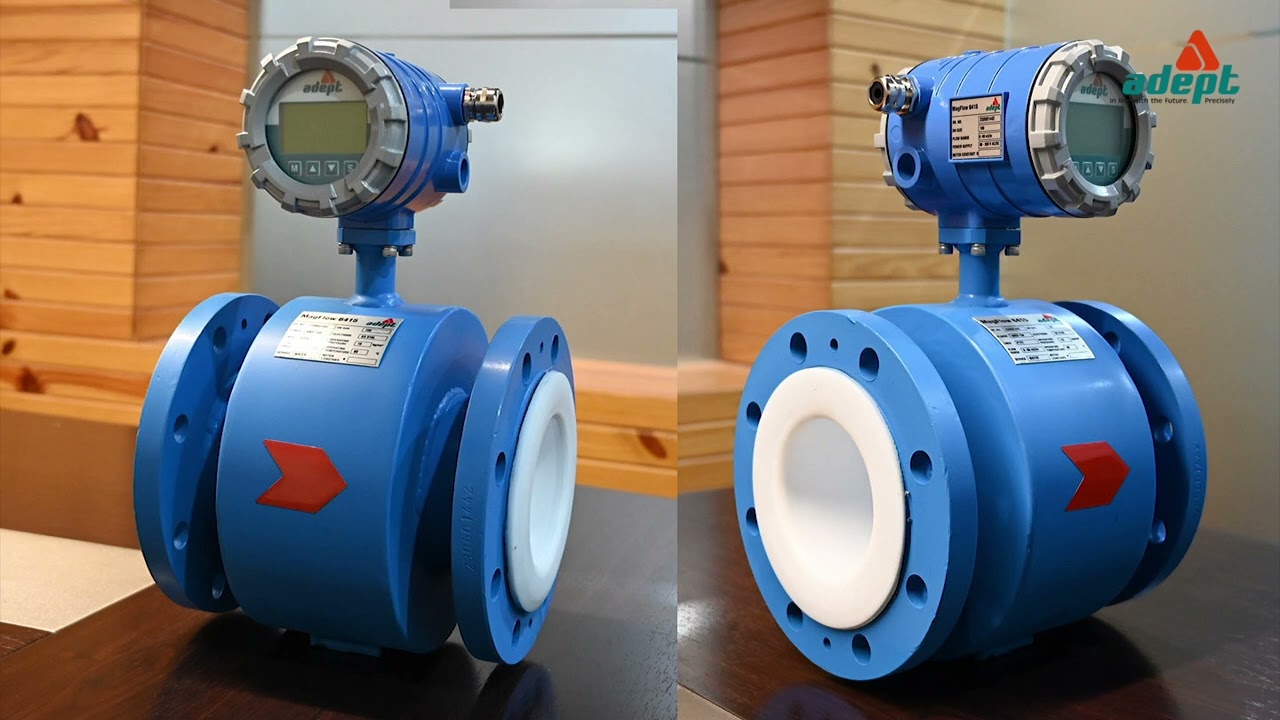

Join now our official WhatsApp Channel: https://whatsapp.com/channel/0029ValL... Click here to secure your purchase. "BUY NOW" Link: https://www.radicaltechmart.com/categ... An electromagnetic flow meter, also known as a mag meter, is a type of flow meter used to measure the flow rate of conductive fluids in a pipe. It operates based on Faraday's law of electromagnetic induction, which states that a voltage is induced in a conductor moving through a magnetic field. Components of an Electromagnetic Flow Meter: 1. **Flow Tube**: The section of pipe where the measurement takes place, typically lined with a non-conductive material to isolate the conductive fluid. 2. **Electrodes**: Two or more electrodes are mounted inside the flow tube, in contact with the fluid. These electrodes detect the induced voltage. 3. **Magnetic Coils**: Coils are placed around the flow tube to generate a magnetic field perpendicular to the flow of the fluid. 4. **Transmitter**: An electronic unit that processes the voltage signal from the electrodes and converts it to a flow rate reading. Working Principle: 1. **Magnetic Field Generation**: The magnetic coils generate a magnetic field across the flow tube. This magnetic field is perpendicular to the direction of the fluid flow. 2. **Induction of Voltage**: As the conductive fluid flows through the magnetic field, it induces a voltage between the electrodes. According to Faraday’s law, this induced voltage is proportional to the velocity of the fluid. 3. **Voltage Detection**: The electrodes detect this induced voltage. The voltage signal is directly proportional to the fluid velocity. 4. **Signal Processing**: The transmitter processes this voltage signal and converts it to a flow rate. It also compensates for any variations and can display the flow rate or transmit the data to other systems. Key Points: **No Moving Parts**: Electromagnetic flow meters have no moving parts, making them highly reliable and low maintenance. **Fluid Conductivity**: They can only measure fluids that are electrically conductive. Typical fluids include water, acids, alkalis, slurries, and other conductive liquids. **Accuracy and Range**: Mag meters provide accurate flow measurements and can handle a wide range of flow rates and pipe sizes. **Applications**: Commonly used in water and wastewater treatment, chemical processing, food and beverage, mining, and pulp and paper industries. Advantages: High accuracy and repeatability. Suitable for a wide range of flow rates. Minimal pressure drop due to lack of obstructions in the flow path. Can handle dirty or corrosive fluids without significant wear. Disadvantages: Not suitable for non-conductive fluids like oils or gases. Installation requires grounding and proper alignment of electrodes. Higher initial cost compared to some other types of flow meters. In summary, an electromagnetic flow meter is a precise and reliable instrument for measuring the flow rate of conductive fluids in various industrial applications, leveraging the principles of electromagnetic induction.
