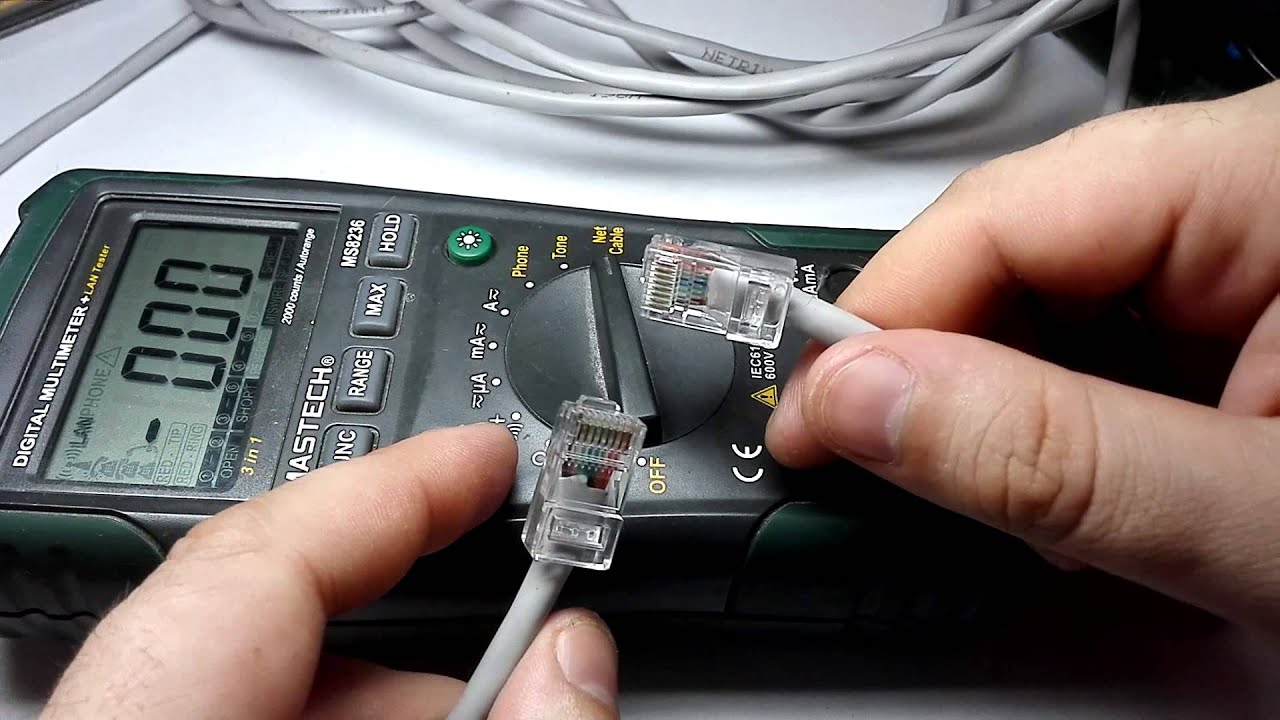

MS8236 digital multiple-purpose meter + cable tester MS8236 is a unique device combining the functions of a digital multimeter and a cable tester. When used as a digital multimeter, it can measure constant and alternating voltage of up to 600 V, constant and alternating current of up to 10 A, and resistance of up to 20 megohmы, check diodes and circuits integrity. A multiposition circular switch serves to choose measurement units and functions of cable tester. Sensing wires are connected to the input terminals on the lower part of the frame. The cable tester is used for identification and ringing out the conductors inside the cable without stripping, and also for telephone line function testing. For that purpose a special cable from the delivery set is connected to the device. The cable consists of a red and a black wires with alligator clips and a four-wire telephone network connector. The probe from the delivery set is used for tonetic signal identification. When the signal is detected, the probe gives an acoustic signal. The MS8236 device can also check LAN network cables. For that purpose one end of the device is connected to the slot on the end face of the apparatus, and the other end - to the slot on its lower part. The protective cover of slot on the lower part of the apparatus must be removed. The result of the test will be shown on the lower part of the display. For the measurement to be safe the device maintains the function of contact-free determination of critical voltage. For that purpose the circular switch is set in the NCV position. The detector is placed on the end face of the device. We bring it to the place of testing. In case of critical voltage the acoustic signal will be given and the light emitting diode will blink. A nice bag is provided in the delivery set to keep and to carry the device and the accessories conveniently!
