Remove rear door lock / latch Range Rover Evoque with Passive Entry

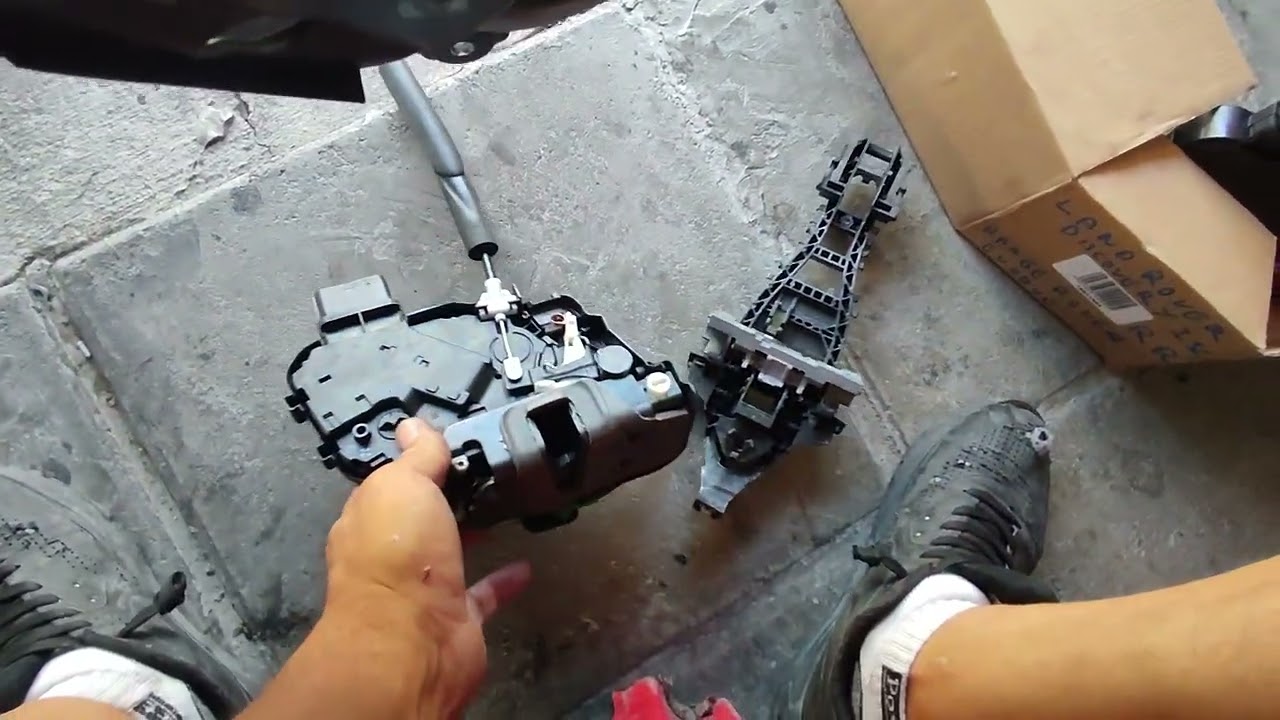

There is an excellent video describing how to remove these door lock / latches on the Evoque:    • How to Fix /Repair rear door lock/ latch f...   However when I attempted to remove the final cable I couldn't get the latch turned enough to remove the cable through the latch hole in the door. This is because my 2015 Dynamic has "Passive Entry" (you touch the door handle and it unlocks the door). The lock / latch module is larger so there isn't enough room to turn it inside the door. I checked the service manual and it says to remove the external door handle. Removing the external door handle enables the two most difficult steps (removing the cables) to be performed after the lock / latch is removed from the door. Here is an excellent video that explains how to take the door handle off.    • How to remove door handles on Range Rover ...   If you do not have passive entry, there are plenty of replacements available from $30-$50 on ebay. But for passive entry modules it seems Land Rover is the only solution (at least for now). The price is over $200 for these. Passive entry part #: :Left rear LR091348. Right rear LR091346 Left front LR091349 (315MHz) Right front LR091350 (315MHz) I apologize for not showing the full removal in the video, but I already had the part out when I decided to make this video. I try to point out everything you need to do once you following the initial steps in the first video linked to above.
