Mastering Freeform Surface Modeling: Swept & Through Curves Tutorial

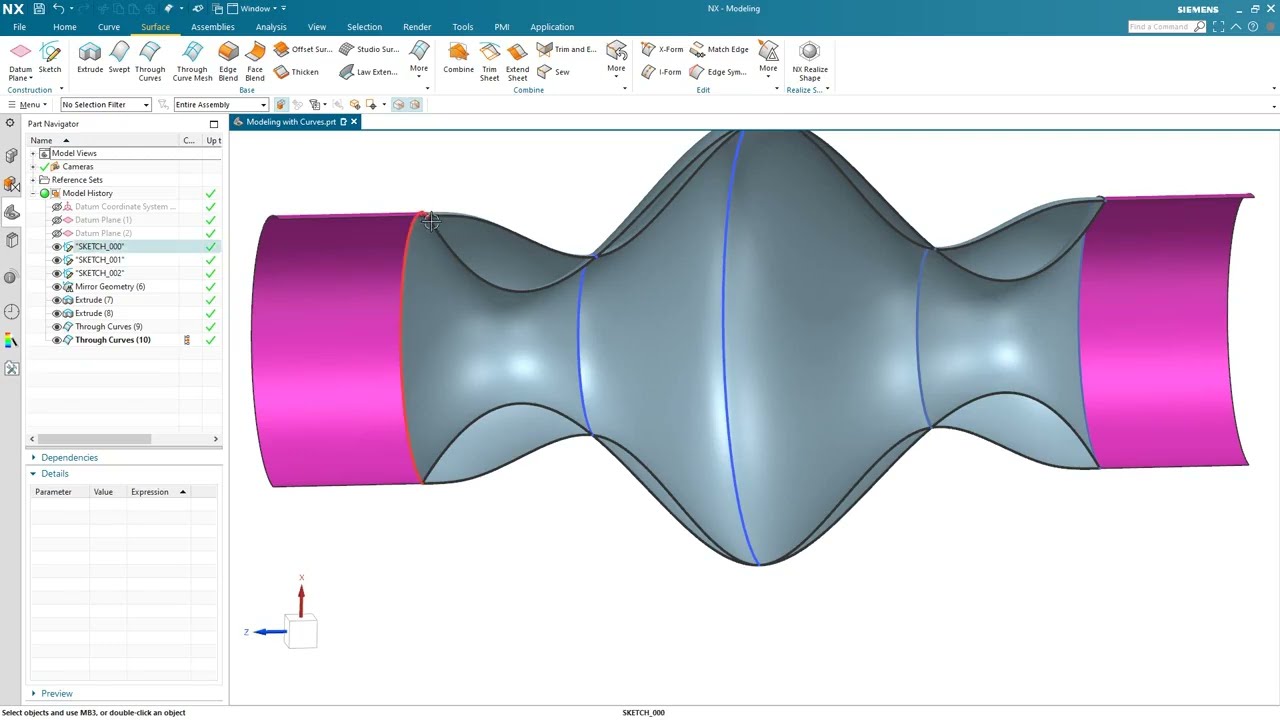

Unlock the power of surface modeling! 📐 In this tutorial, we walk through the process of creating complex freeform shapes using essential surface tools and converting them into high-quality solid bodies. What we cover in this video: Creating Swept Surfaces: Learn how to use sections and guide curves to build your initial shapes [00:41]. Handling Build Directions: Why paying attention to section arrows is critical to avoid 'ribbon' or 'bow tie' effects [02:07]. Interpolation Techniques: Using Linear vs. Blend transitions to morph shapes along a guide [03:24]. Through Curves & Continuity: Generating smooth surfaces between existing bodies using G1 Tangent and G2 Curvature continuity [05:09]. Cleaning Up Geometry: Using the Trim Sheet tool to remove overbuilt material and define your final regions [07:51]. Finalizing the Model: Sewing surfaces together, applying edge blends, and using the Thicken command to create a final solid part [09:26]. Whether you are working on automotive parts, consumer products, or complex industrial designs, mastering these surfacing techniques is essential for any professional CAD workflow. Don't forget to Like and Subscribe for more engineering and design tutorials! #CADModeling #SurfaceDesign #MechanicalEngineering #FreeformModeling #EngineeringTutorial #3DDesign #SolidModeling
