Video for Lab 4 - How to use Tektronix Oscilloscope in Multisim

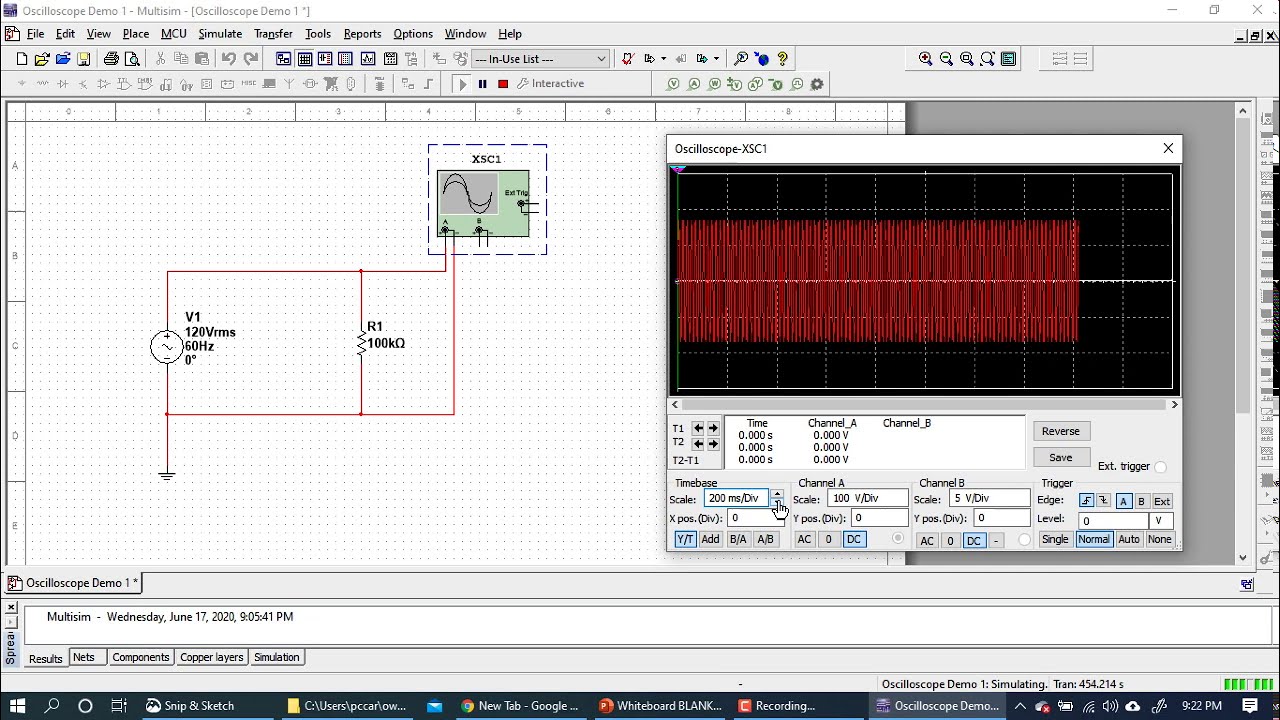

Key Points: 0:00 - How to add scope to your circuit. Note - do not use the autoset button. 6:40 - How the V/div and sec/div scale work. 8:12 - How to decide what to set the V/div scale to, based on your expected waveform values. 9:12 - Clarification: the 3.53 is Vp, the result of multiplying it by 2*sqrt(2) is Vp-p. 11:33 - How to set the sec/div scale based on expected frequency of the waveform. 13:47 - What to check if you don't see a waveform on the screen. 16:19 - Clarification: I said 0.25ms when I wrote 0.2ms. The 0.2ms is correct. 17:56 - How to change the position of your waveform on the screen. 19:00 - Screen capture rate a bit too slow at this time, compared to scope refresh rate. 19:30 - Taking a peak-peak voltage measurement. 20:21 - AC vs. DC Coupling, Where Ground is, DC Offset concept. 23:10 - Trigger Menu and Level (23:53, you can't see the jumping due to frame rate issues in the recording but try it for yourself.) 25:00 - Signals on Both Channels. (pay attention to V/div scale for each channel). 26:50 - Using the math function to subtract the waveforms: CH1-CH2. 29:40 - How to measure the Vp-p of a smaller waveform.
