14" OPTICAL GAGING PRODUCTS (OGP) OPTICAL COMPARATOR

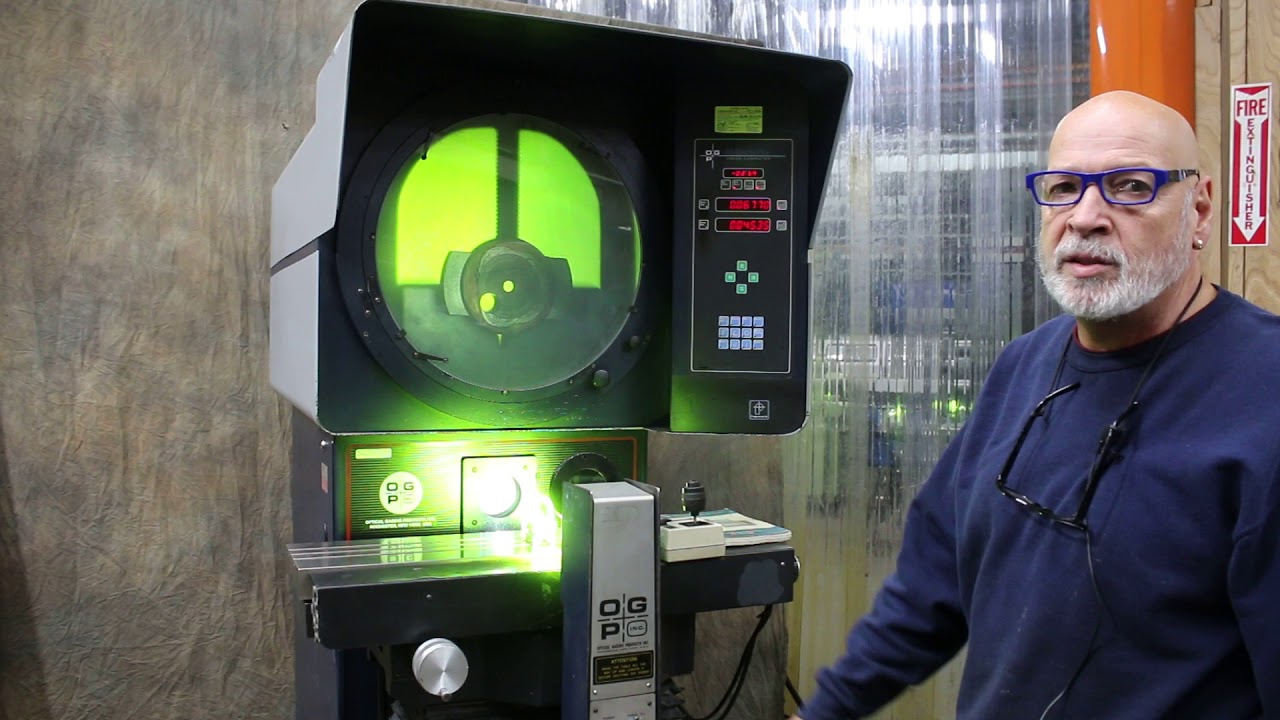

https://www.machineryvalues.com/inven... 14" OPTICAL GAGING PRODUCTS (OGP) OPTICAL COMPARATOR WITH DIGITAL READOUT (PROGRAMMABLE GEOMETRIC FUNCTIONS) & "PROJECTRON IV" EDGE DETECTION MODEL: TOP BENCH S/N: TB08061038 MFG. 1995 REVOLUTIONARY ACCUCENTRIC LENS SYSTEM" (PATENTED): THE ACCUCENTRIC OPTICS IN TOP BENCH PRESENT A FULLY CORRECTED, ERECT AND UNREVERSED IMAGE OF THE HIGHEST QUALITY. THE IMAGE ON THE SCREEN APPEARS EXACTLY THE SAME WAY AS YOU SEE THE PART STAGED ON THE WORKTABLE. SO THERE'S NO WONDERING WHICH WAY TO MOVE THE TABLE TO MEASURE A DIMENSION. YOUR HAND-EYE COORDINATION IS NATURAL, FATIGUE IS MINIMIZED, AND PRODUCTIVITY IMPROVED. THE ACCUCENTRIC OPTICS IN TOP BENCH ARE FULLY TELECENTRIC. THIS ENSURES THAT THE MAGNIFICATION OF THE IMAGE REMAINS ACCURATE EVEN WHEN DIFFERENT OPERATORS FOCUS THE SYSTEM AT DIFFERENT POSITIONS. IT ALSO MEANS A CONSTANT WORKING DISTANCE, OUTSTANDING DEPTH OF FIELD, SHARP IMAGE DEFINITION AND NEGLIGIBLE DISTORTION. ONLY TRUE TELECENTRIC SYSTEMS CAN MAKE THIS CLAIM. DON'T BE FOOLED BY THOSE SYSTEMS WITH SIMPLE OPTICS THAT PROMISE "TELECENTRIC ILLUMINATION". TO RECEIVE THE BENEFITS OF TELECENTRICITY, THE ENTIRE OPTICAL SYSTEM MUST BE DESIGNED ACCORDINGLY. OGP, WHO INTRODUCED THE TELECENTRIC RELAY LENS PRINCIPLE IN 1945, IS UNIQUELY QUALIFIED TO PROVIDE THE UNSURPASSED OPTICAL QUALITY YOU DESERVE IN A CONTOUR PROJECTOR. OGP'S EXCLUSIVE FRESNEL LENS TECHNOLOGY REDIRECTS ALL LIGHT TOWARDS THE NORMAL VIEWING POSITION. NO LIGHT IS WASTED, AND YOU GET THE BRIGHTEST, MOST EVENLY ILLUMINATED IMAGE IN THE INDUSTRY THROUGH-THE-LENS SURFACE ILLUMINATION DELIVERS BRIGHTER, MORE EVENLY ILLUMINATED IMAGES THAN THE "HIGH INTENSITY" FIBER OPTICS FOUND ON OTHER SYSTEMS. AND YOU WON'T HAVE TO ADJUST UNWIELDY FIBER OPTIC CABLES TOP BENCH USES A UNIQUE OPTICAL FOCUSING METHOD THAT REMOVES THE REQUIREMENT FOR A THIRD AXIS OF MOTION FOR THE WORKTABLE AND INCREASES THE ACCURACY OF HORIZONTAL AND VERTICAL MOTIONDUAL LCD DISPLAYS PROVIDE BRIGHT, EASY TO READ COORDINATE AND GEOMETRIC INFORMATION AND A WIDER VIEWING ANGLE THAN LED DISPLAYS OGP'S EXCLUSIVE PROJECTRON IV AUTOMATIC EDGE DETECTION IS INTERNALLY MOUNTED AND PERMANENTLY CALIBRATED. YOU WON'T HAVE TO WORRY ANYMORE ABOUT THOSE FLIMSY OVER-SCREEN UNITS YOU FIND ON OTHER SYSTEMS HELIX MOTION IS INCORPORATED WHERE IT BELONGS, THROUGH A PIVOTING WORKTABLE. SAY GOOD-BYE TO THE IMPROPER ILLUMINATION YOU GET WITH A PIVOTING LAMPHOUSE THE HARD COATED WORKTABLE ON TOP BENCH FEATURES 8" OR 12" OF TRAVEL AND AN INTEGRAL DOVETAIL SLOT FOR EASY MOUNTING OF FIXTURING ACCESSORIES. PATENTED BEARING CONSTRUCTION ENSURES YOU OF STRAIGHT LINEAR MOTION, HIGH ACCURACY , AND LONG LIFE. THE TOP BENCH SYSTEM CAN BE EQUIPPED WITH A THREE POSITION INTERNAL LENS TURRET FOR FAST CHANGING OF MAGNIFICATION. THE TURRET SENSES AND DISPLAYS WHICH MAGNIFICATION LENS IS IN USE AND AUTOMATICALLY SETS THE CORRECT EDGE DETECTION PARAMETERS THE EXCLUSIVE ACCUCENTRIC LENS SYSTEM (PATENTED) PROVIDES AN UNPRECEDENTED 5" OF WORKING CLEARANCE, REGARDLESS OF MAGNIFICATION. MAXIMUM WORKPIECE DIAMETER IS A STAGGERING 8", EVEN AT 100x! AND SINCE ALL LENSES ARE ENCLOSED, THERE'S NO CHANCE OF EXPENSIVE COLLISIONS. SPECIFICATIONS: SCREEN DIAMETER:............................................ 14" TABLE SIZE:................................................. 4-3/8" X 17-3/4" MEASURING CAPACITY-LONG. TABLE TRAVEL:...................... 8" VERT. TABLE TRAVEL:...................... 6" TABLE LOAD CAPACITY:........................................ 55 LBS. ANGULAR MEASURING CAPACITY:................................. 360 DEG. CHART ROTATION IMAGE TYPE:................................................. FULLY CORRECTED/ERECT FLOOR SPACE ................................................ 24" L-R x 36" F-B x 50" HIGH APPROX. WEIGHT ............................................. 650 LBS EQUIPMENT: BUILT IN "OGP" GEOMETRIC DIGITAL READOUT SYSTEM w/PROGRAMMABLE GEOMETRIC FUNCTIONS OGP "PROJECTRON IV" EDGE DETECTION MANUAL TABLE TRAVERSE DIGITAL ANGLE DISPLAY THREE POSITION LENS TURRET 10X, 20X & 100X TUNGSTEN HALOGEN PROJECTION BUILT IN SURFACE ILLUMINATION ELECTRICAL - 1/60/115 VOLT ** EXCEPTIONAL CONDITION & APPEARANCE ** ** INSPECT UNDER POWER IN CHARLOTTE, NC **
