2D Structured Quad Mesh Generation in Ansys Meshing for CFD

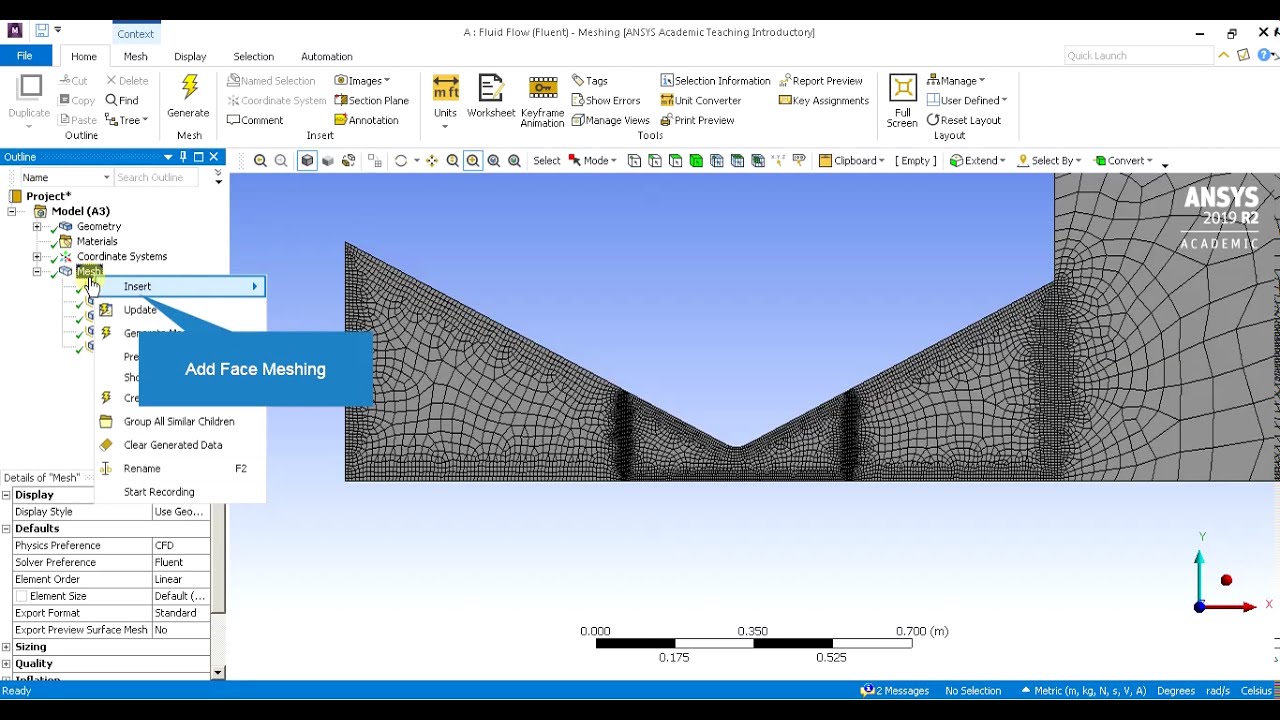

2D Hexa/Quad Meshing in Ansys Default Meshing Module for Computational Fluid Dynamics (CFD) Analysis This video shows how to create a 2D quadrilateral elements based grid/mesh for cfd analysis using the default meshing module available in Ansys Workbench. Note: At around 13:50 some steps look missing. It's because I paused the screen recording and forgot to unpause it back again. The procedure is the same as done earlier: add sizing to all edges with soft or hard behavior (which works best) and add bias where required. Hexa/Quad mesh is difficult to create but results in good quality, lesser number of nodes and elements as compared to a tetra/tri mesh, and hence takes less time in computing solution. A properly structured (mesh aligned with the direction of fluid flow) hexa/quad mesh can also give more accurate results. And above all it looks cool.
