How to install KITSEN Fastform Slab Formwork System

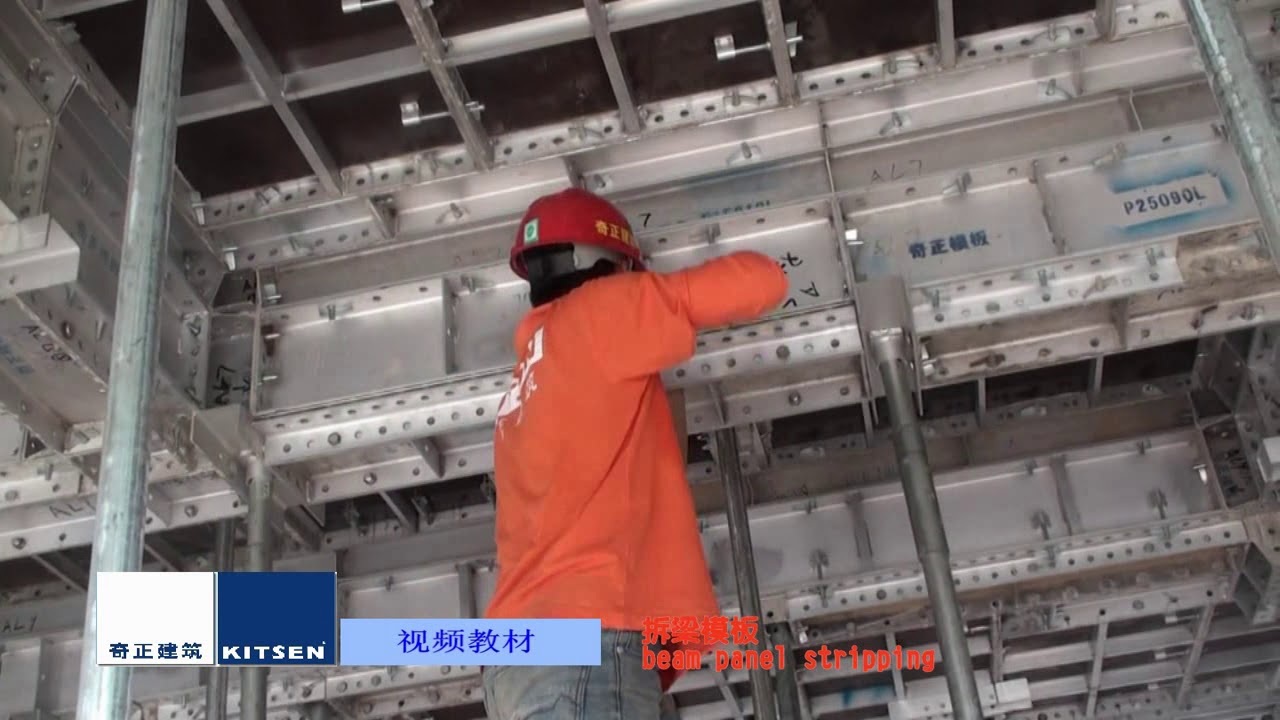

How to install KITSEN Fastform Slab Formwork System? 1) Assemble the props on the ground. Adjust the props to the required height. Install the early-stripping head on the top of the props. Install the truss on the lower part of the props. 2) Stand up the assembled props, one worker holds the prop, and the other two workers hang the Fastform panel. 3) The third worker uses the panel tool to prop up the other end of the panel, and the fourth worker installs the 3rd prop, and then the fourth prop. 4) After installing the first Fastform unit, and then continue to install the rest panels and props in sequence. 5) Attention points on installation: Check the position between the panel and the early-stripping head. Pay attention to the position of the spin lock and studs. The upper edge of the panel should be flush with the top plate of the early-stripping head. The seam between the panels needs to be sealed with cloth tape to prevent leakage. Contact: Ashley Email: +86-184 20221608
