GD&T Tutorial 07 : Actual Mating Envelope

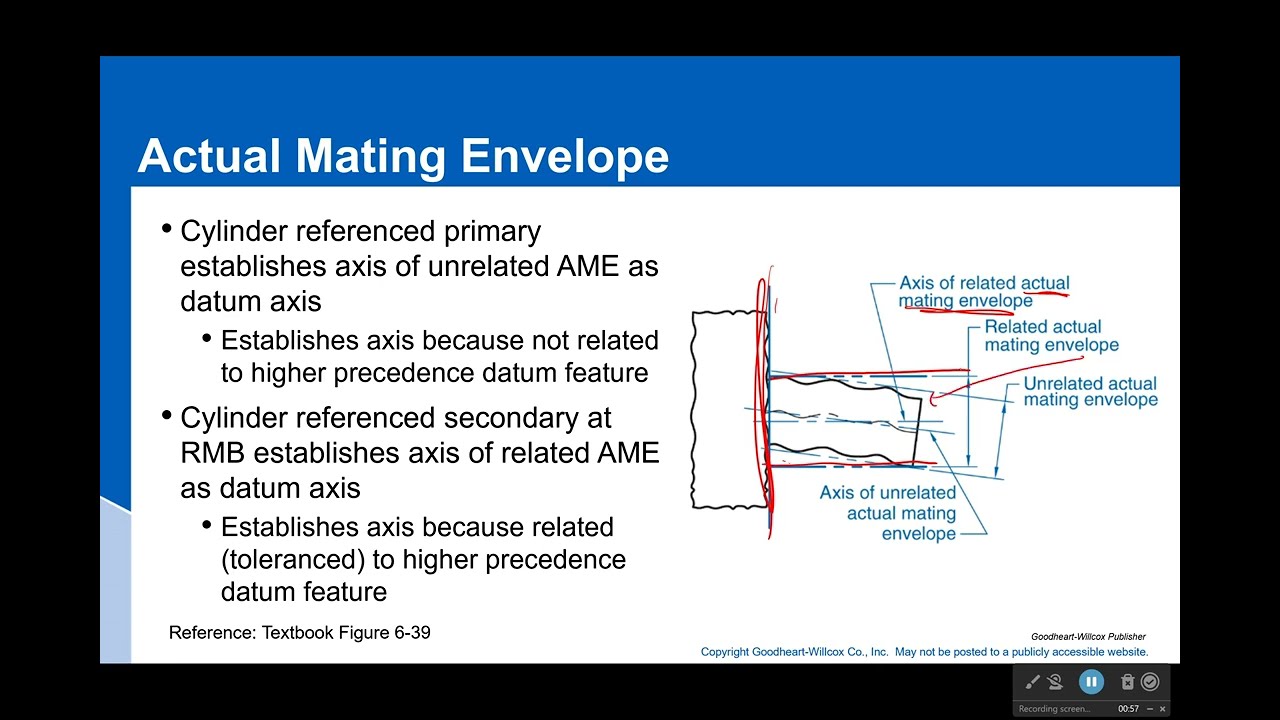

GD&T Tutorial : Actual Mating Envelope - This Video Explains about the GD&T Key Term Actual Mating Envelope For PDF Format Note click the below link we have removed the link due to miss use by viewers. Apologies for the inconvenience! for more videos and professional courses on GD&T visit lms.prolotek.com Actual Mating Envelope (AME) is an envelope that is inverse of a feature of size that just coincides with the extremities or high points of a feature. For Holes, an AME is the largest cylinder that may expand so that it coincides with the hole’s surfaces at the high points For Shafts, an AME is the smallest hole that may contract so that it coincides with the shaft’s surfaces at the high points Actual Mating Envelope (AME) are of Two Types 1. Unrelated Actual Mating Envelope (UAME) 2. Related Actual Mating Envelope (RAME)
