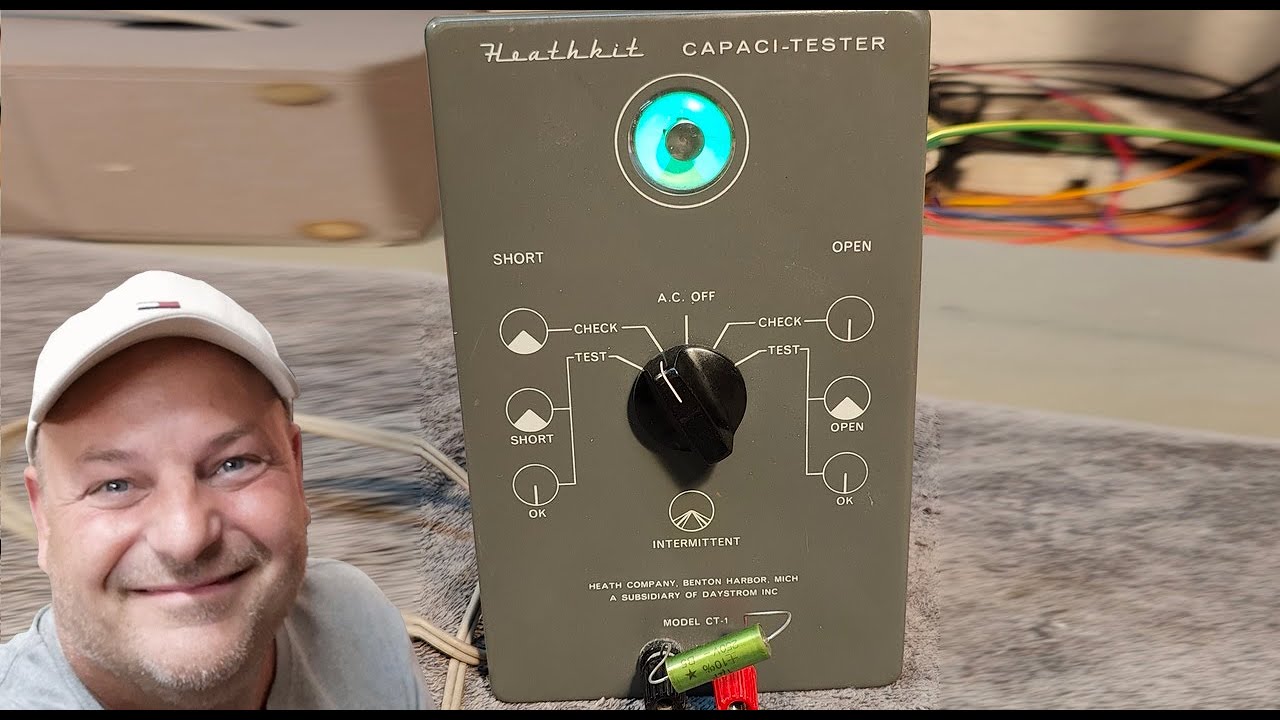

Heathkit CT-1 Capaci-tester 50Hz 19MHz Magic Eye 1959

Design is from 1959 found date in the manual, only one tube inside this quite simple capacitor open-short tester, the 1629 magic eye, they also use the same tube as a 19MHz oscillator, i found that fasinating worth a video to show this unusual idea. The last funny idea is a magic eye actually works on AC voltage, it just means it only make light when the wave is positive, so no need for rectifier or large caps on the anode. I really like Heathkit for making super good DIY manuals educating hobby people, good entry into the world of electronics. This is my #13 Heathkit video. when you are done with this video, PLEASE try scroll thru my other videos here    / @teardownoz2cpu   I found the capaci-tester in the heathkit catalog from 1959, it was 8$ back then, using inflation calculator it is 87$ in 2025 ---- #vintage #teardown #heathkit --- I use auto generated subs, I go thru them my self, but i am far from perfect at finding all errors, so if you find errors worth fixing, please comment (or PM) with the TIME in the video you saw the error, i will be happy to fix it. This also apply to the Danish version. -- (Thanks to all my Sponsors / Traders / Swappers / Sellers / Buyers, without your support and constant flow of cool items in/out, none of this would be possible)
