How to design a WDM-PON system using Optisystem I In English I

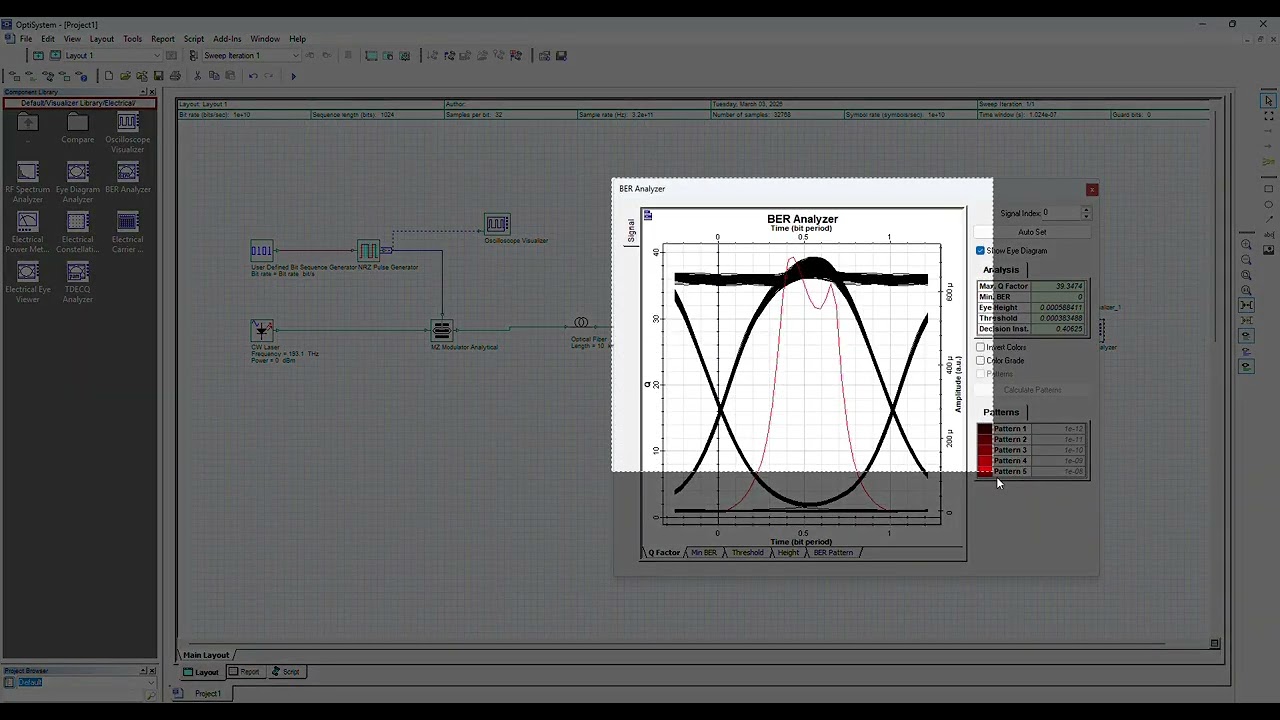

Dear friends, In this tutorial, you will learn, how to design & simulate a WDM-PON i.e, wavelength division multiplexing passive optical network system using Opti system Software just by varying the parameters of different input parameters such as Fiber range, data rate and input power by using different sweep iterations... You can also vary the data rate and see the received output in terms of Bit error rate (BER) & Q-factor. A passive optical network (PON) has been designed to deliver broadband Internet access to your home or office by connecting you as a subscriber to your ISP. Depending on where the PON ends, the system will be considered fiber-to-the-curb (FTTC), fiber-to-the-building (FTTB), or fiber-to-the-home (FTTH). Moreover, the internal system parameters considered during simulation of the model has been included as follows: Data Rate= 10 Gbps Optical Fiber Length= 10 Km CW laser Power= 10 and 12 dBm CW Frequency= 193.1 and 193.2 THz WDM Mux & De-Mux Frequency= 193.1 & 193.2 THz Sequence Length= 128 bits Sample per bit= 64 Number of samples= 8192 In order to achieve the maximum acceptable Bit error rate (BER) value of 10^-19. You can vary the internal parameters (Fiber range) values between 10 to 50 Km and check the variations in results in terms of Eye diagram & BER values. In this video you get an idea about how to simulate & design a WDM-PON system and check the results in terms of Eye Diagram , If not getting proper eye diagram then just change the values of parameters to see the variation in the desired output received. If you follow the steps while simulating your circuit the it will definitely help you in saving your time and also help you in better understanding of software. The research related content considering block diagram, graphs, paper format, writing Journal papers, Tables, references format, submission in journals, reply to reviewers comments, software use for simulation and obtaining results, Preparing research proposal for PhD . All the related contents are covered in this channel. So, stay tuned for such videos ...... For any queries related to Optisystem Software, MATLAB, Originlab, MS Excel, Implementation of Machine Learning using MATLAB in optical domain, research related project work, journal publication or manuscript submission in SCI, Scopus Indexed journals and IEEE conferences you can contact us on Email: edlearning2@gmail.com Also, follow us on Instagram for finding the latest updates related to research and technical contents https://www.instagram.com/official_ed... Also, you can follow me on my Instagram handle Insta Id- sharma_anchl   / sharma_anchl   ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ Also Like, Share & Subscribe our Technical Étudiants Channel    / @technicaletudiants3133   ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ 👋 About this channel: Hi, I am Aanchal Sharma and I am here to help you with all kind of research related queries whether it be related to software usage, writing synopsis or proposals, research paper writing and publication. #PONsystem #WDM #Optisystem #Tutorial #Simulation #Sweeps Shortcut Tricks to of designing simulation circuit in Optisystem, Checking errors while running model, Sweeps in input values, achieving acceptable BER value , Q-factor values, FSO system, How to create WDM PON in Optisystem, How to set parameters, How to auto connect components in optisystem, Passive Optical Network, Wavelength Division Multiplexing, How to take results plots in Optisystem, How to design a WDM PON for FTTH applications, Role of PON , PON system In Optisystem, Design 20GBps WDM PON in Optisystem. #Design&Simulation of WDM PON system #Results Analysis in Optisystem #Sweeps in Input Parameters #Passive Optical Network in Optisystem #Technical Étudiants
