Civil 3D Canal Design: Create Profile with List Command (2% Slope)

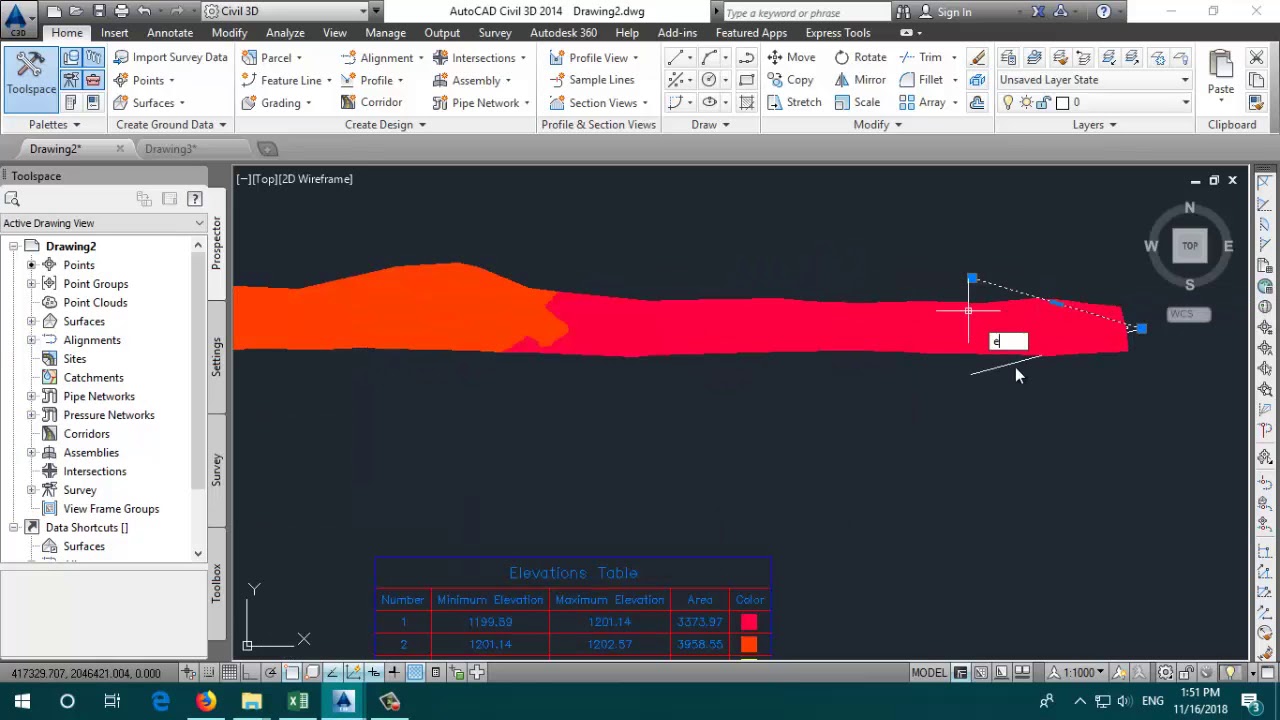

🌿 Civil 3D Canal Design – Part-3: Design Profile Creation Using LIST Command In this video, we explain how to create a design profile for a canal using a 2% slope and the LIST command in Civil 3D. This step is crucial for maintaining consistent slope in irrigation or drainage canal designs. 🔧 Steps Covered: Draw a polyline on the surface profile view Maintain 2% slope by snapping the polyline correctly Copy polyline from base point and paste at X=0, Y=0 Use LIST command to extract coordinates Copy X (horizontal distance) and Y (elevation) into Excel Use Text to Columns to format data Add starting elevation and calculate the design profile Paste final data into Notepad and save as .txt Return to Civil 3D and use Create Profile from File 🔁 Final profile follows the correct canal slope ✅ Perfect for: Canal designers Civil engineers Civil 3D beginners Infrastructure planners 👉 Subscribe for more step-by-step canal and Civil 3D tutorials! #Civil3D #CanalDesign #ProfileDesign #LISTCommand #2PercentSlope #CivilEngineering #CanalProfile #AutodeskCivil3D #Civil3DTutorial #IrrigationDesign Civil 3D Canal Design, Profile Design Civil 3D, List Command Civil 3D, Canal Profile, Civil 3D 2 Percent Slope, Civil 3D Profile from File, Create Profile Civil 3D, Civil 3D Tutorial, Autodesk Civil 3D, Civil Engineering Design
