Test Bench for High Pressure Hose

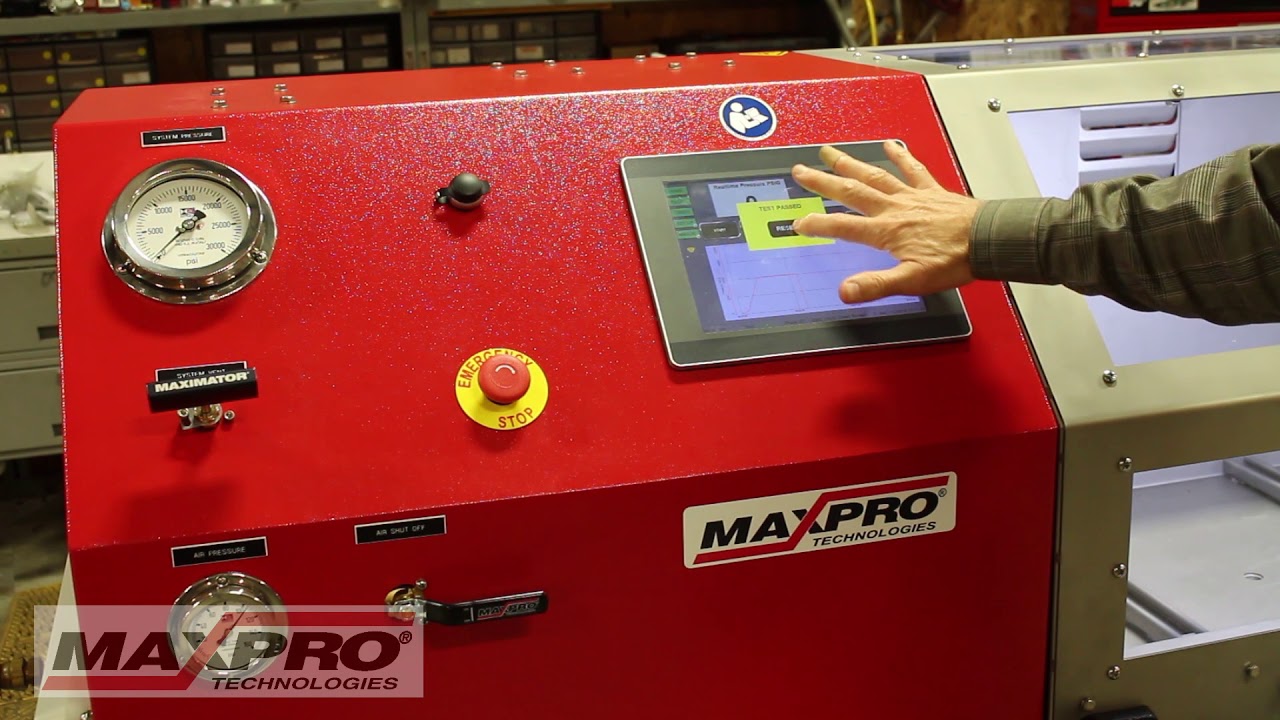

Demonstration of a Maxpro Technologies high pressure hose test bench, can test other items as well, tests to three different pressures, 10,000 psi. 16,000 psi and 65,000 psi. Watch us load this system on the truck at    • On the truck!   Contact us at Maxpro Technologies, 814-474-9191, sales@maxprotech.com, www.MaxProTech.com, 7728 Klier Drive S., Fairview, PA 16415 Video Transcript: Hi, my name is Brad, I'm an engineer at Maxpro Technologies. We manufacture high pressure test systems and I'm standing in front of a three circuit manual test bench that we build here. The system utilizes three Maximator air driven pumps, a L15, a L150 and a L150-2, and this gives us three distinct outlet ranges. Each pump has been equipped with an air relief to limit the outlet pressure to less than is on the gauge here. The unit is equipped with a pre-fill circuit on both the 16,000 psi circuit and the 65,000 psi circuit. The cabinet has a light, controlled right here, and the unit features multiple bulkheads, mounted inside the unit and also on the front. This will allow you to test things that are too large to get into the enclosure. We have tightened the fitting, we will close the enclosure door, and take the hose up to pressure. We are going to want to make sure the regulator is dialed all the way down, turn the air on, and turn the water on. You have three high pressure valves here, you have vent, the pump isolation, and the front outlet isolation. Be sure the vent is closed, the front isolation is closed and the pump isolation is open. Now we will slowly increase the air regulator and observe the pressure build on the gauge. As you can see we have taken it up to about 25,000 psi, and we are going to isolate the pump from the test. So at this point we have the pump isolated and we are holding pressure at 25,000. We are satisfied with the test, we don't observe any leaks in the chamber, we would consider this a successful test. This is a custom system built with a specific need in mind. We have built a lot of similar systems and are able to apply our experience to this. We can meet any of your high pressure needs. Our contact information is below.
