SoMachine DATA LOGGING (part 1) TM251

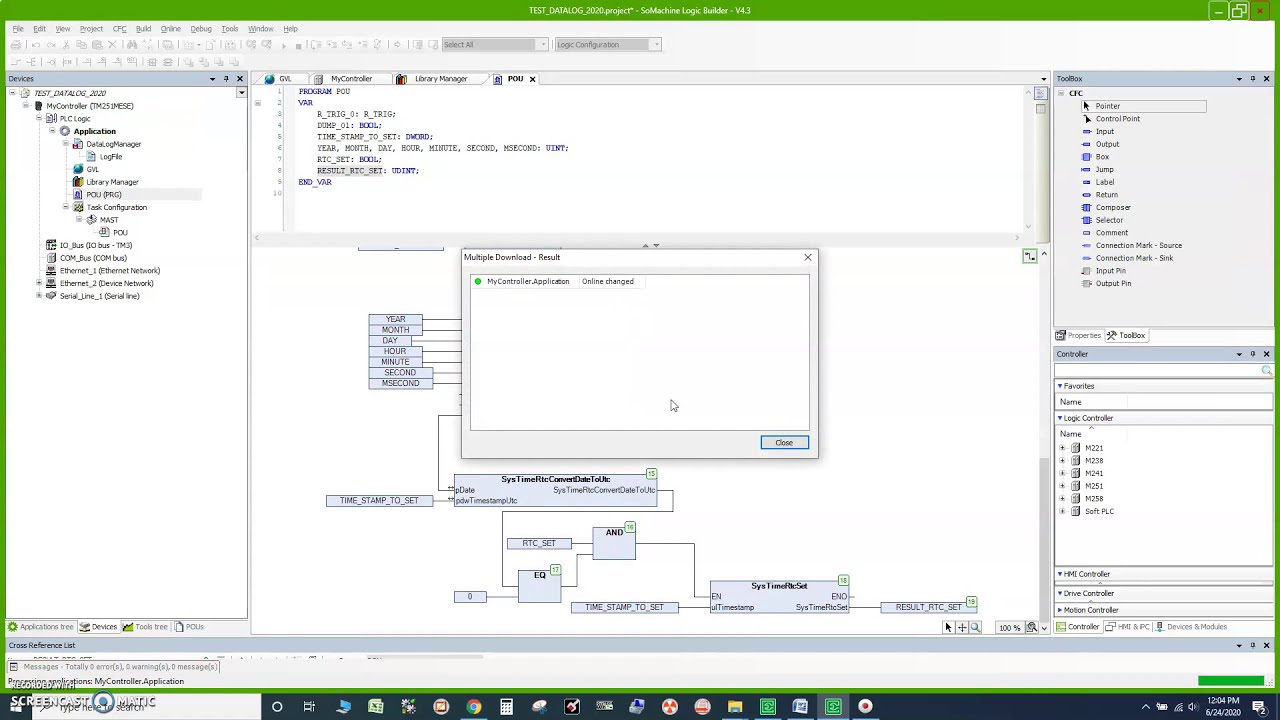

If this video is helpful, please like and subscribe to my channel! Thank you. PLC: TM251MESE Record to: Either to “Internal Flash” OR “SD Card” Data to be logged: VAR_1, VAR_2, VAR_3, VAR_4: REAL; Step 1: In “Devices”, “Application”→“Add Object”→ “DataLogManager…”→“Add Object” →“DataLog…” Step 2: In “Application Tree”, “Add POU” → “Continuos Function Chart (CFC)” Step 3: Convert all “data to be logged” to WSTRING then combine them into 1 WSTRING named “FINAL_STRING” Instructions: REAL_TO_WSTRING; WCONCAT. Step 4: Special variable: PLC_R.i_x1sClk (data logged every 1 s) Instruction: R_TRIG; LogRecord; LogRecord.Dump. Step 5: Testing… Set Controller Date and Time. A/ Internal Flash; Save datalog file to C:\DATALOG_06_20 B/ SD Card.
