Gemini 3 RTU product operation

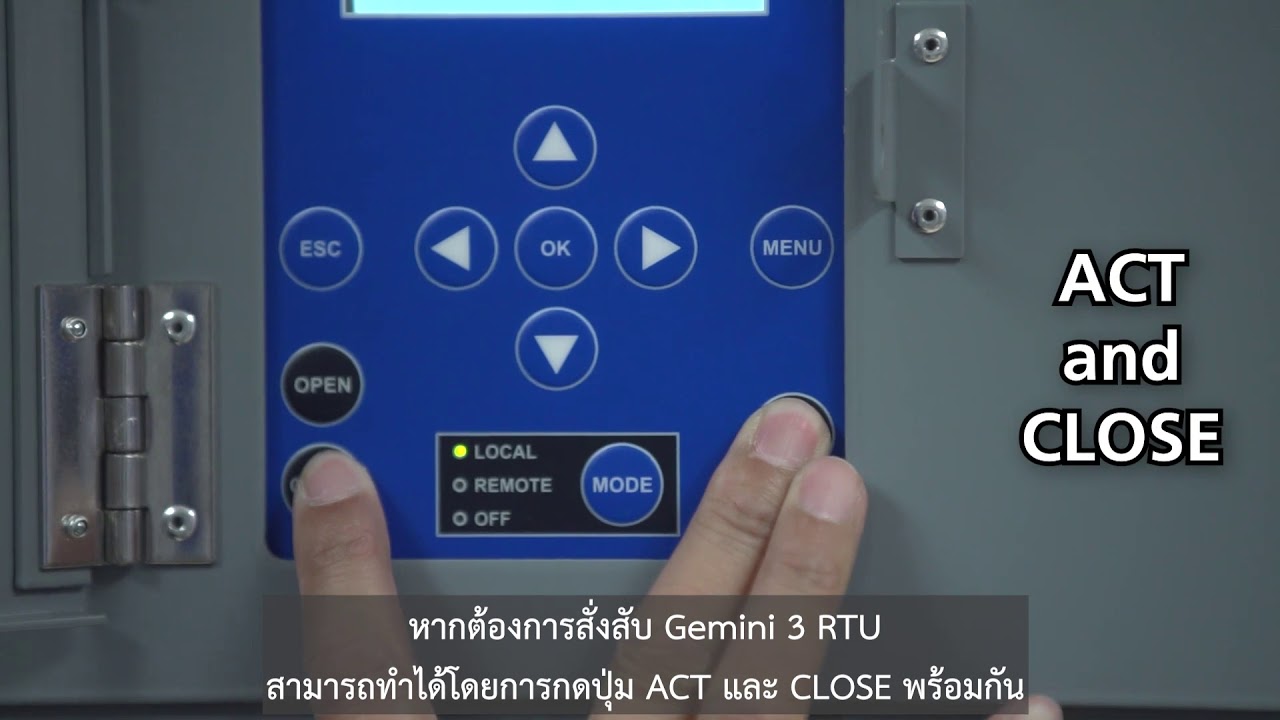

The Gemini 3 RTU onsite operation or LOCAL mode is designed to have easy and straightforward operation steps. Just follow these steps here: 1. Switch on the Gemini 3 RTU. First switch on power supply unit, then turn on battery switch. When both switches are on, wait until Gemini 3 RTU is ready (the menus will be displayed on HMI screen) 2. Select Local operating mode: Select operating mode to Local by holding mode button at HMI for 2 seconds then release. Once it changes to Local mode, LED light on HMI will be at Local 3. Open/close switch via HMI: In menu, it will display current open/close status of the switch for security reason and to prevent any unforeseen mistake during operation. To close Gemini 3 RTU, press ACT and CLOSE button at the same time. To open Gemini 3 RTU, press ACT and OPEN at the same time. Press either buttons till the operating bar is full or till HMI displays “Operating” then release Once the operation is completed, HMI will display the changing status of switch In case of remote operation from control centre, just only change RTU operating mode to Remote by pressing Mode button on HMI, hold for 2 seconds then release. The LED on HMI will be changed to Remote and Gemini 3 RTU will be ready for remote operation and control from control centre. To check other status of Gemini 3 RTU, select the preferred menu. Press OK button to look in to the menu. To go back to previous menu, press ESC. Or to go back to the starting menu, press MENU. More information of Gemini 3 RTU, visit: https://www.lucyelectric.com/product/...
