EGON RELAY-HUB. Circuit Overview скачать в хорошем качестве

EGON RELAY-HUB. Circuit Overview

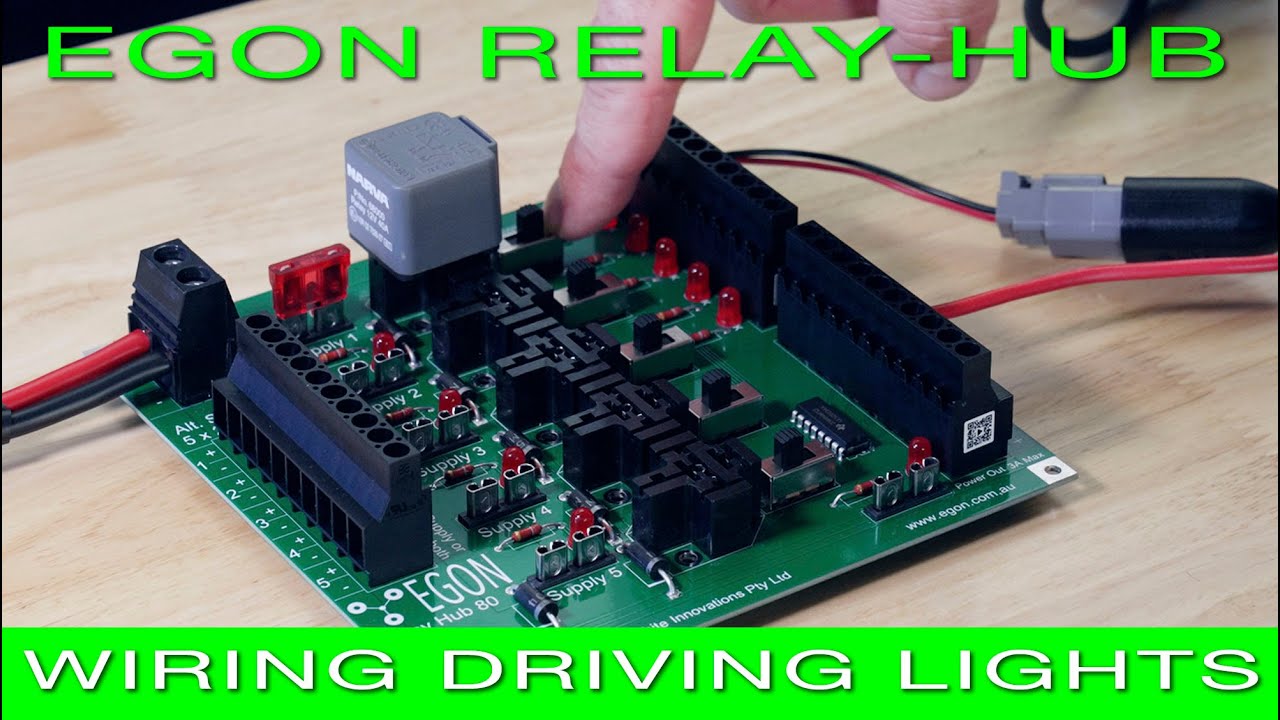

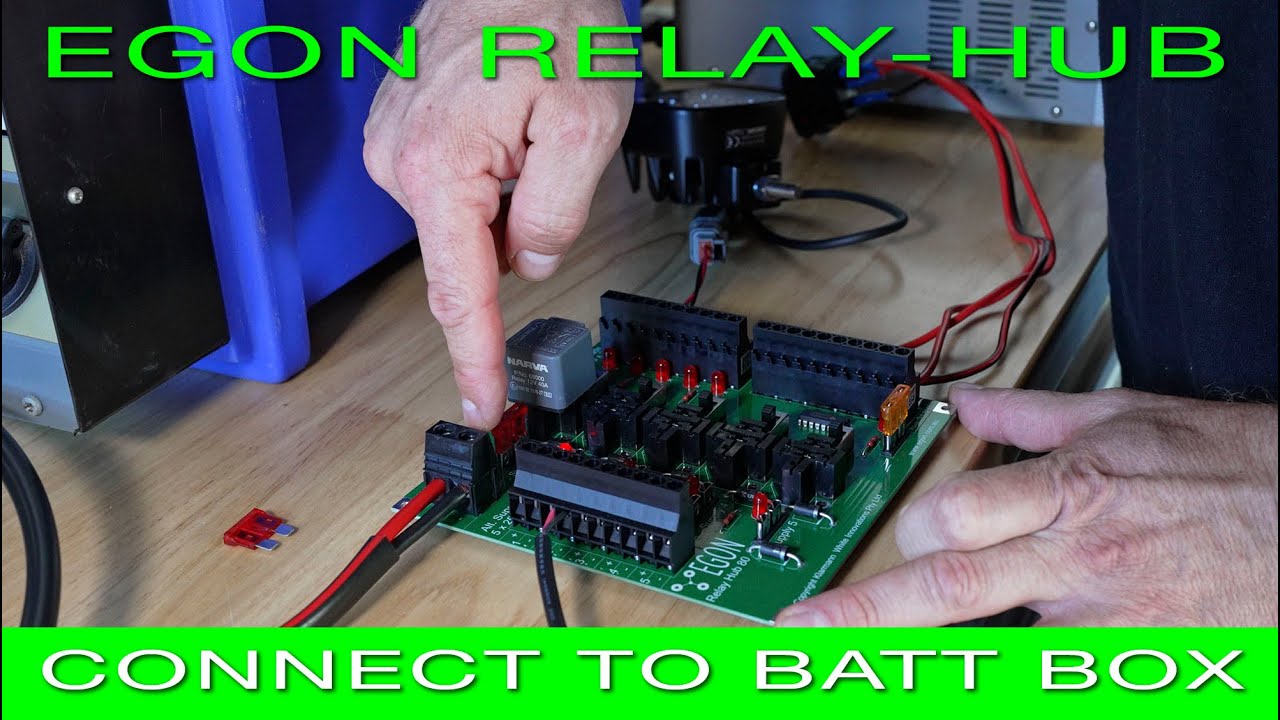

https://www.egon.com.au/ ORDER PRODUCTS HERE: AUSTRALIA: https://perthpro.com.au/search?q=egon... UK: https://www.beartoughltd.com/ Canada: https://g4o.ca/ The EGON Relay Hub is a 12 - 24 Volt combined switching and fusing hub which can be used as a standalone or in combination with an EGON DC Hub, it can be an add on for switching and or extra circuits. It has been designed to make it extremely easy to integrate switching into your electrical DC system. It also works great as a combination of switched outputs and constant outputs with a battery box or small system installation where a more simplified version of the DC Hub is required. It features: Blown fuse indicators Outputs active indicators 5 individual switching / constant power supply circuits Override switches on the board for added redundancy Switch power supply circuit High quality screw connectors for easy connection of cables (no special tools needed) Sockets for 5 x standard automotive relays (available worldwide) 80A maximum current throughout 5 x 25A output circuits The following connection diagram shows a combination of switched, constant power loads and external switching. EGON takes a fresh look at product shortfalls and the needs of the adventure motoring, sail boats cruising and recreational vehicle builds. The company was formed in 2019. Owned and operated by automotive engineer Heiner Klarmann and award-winning 4WD author and overland explorer, Andrew St Pierre White. The company is based near the city of Perth, Western Australia. CHECK OUT THESE VIDEOS: Assembly of Egon EGON Relay-Hub    • EGON RELAY-HUB. Unboxing and Assembly@EGON...   Basic installation guide for the EGON DC-Hub | EGON    • Basic installation guide for the EGON DC-H...   WIRING A SHUNT TO THE EGON DC-Hub | EGON    • WIRING A SHUNT TO THE EGON DC-Hub | EGON
