Perform Slope Analysis using Civil 3D

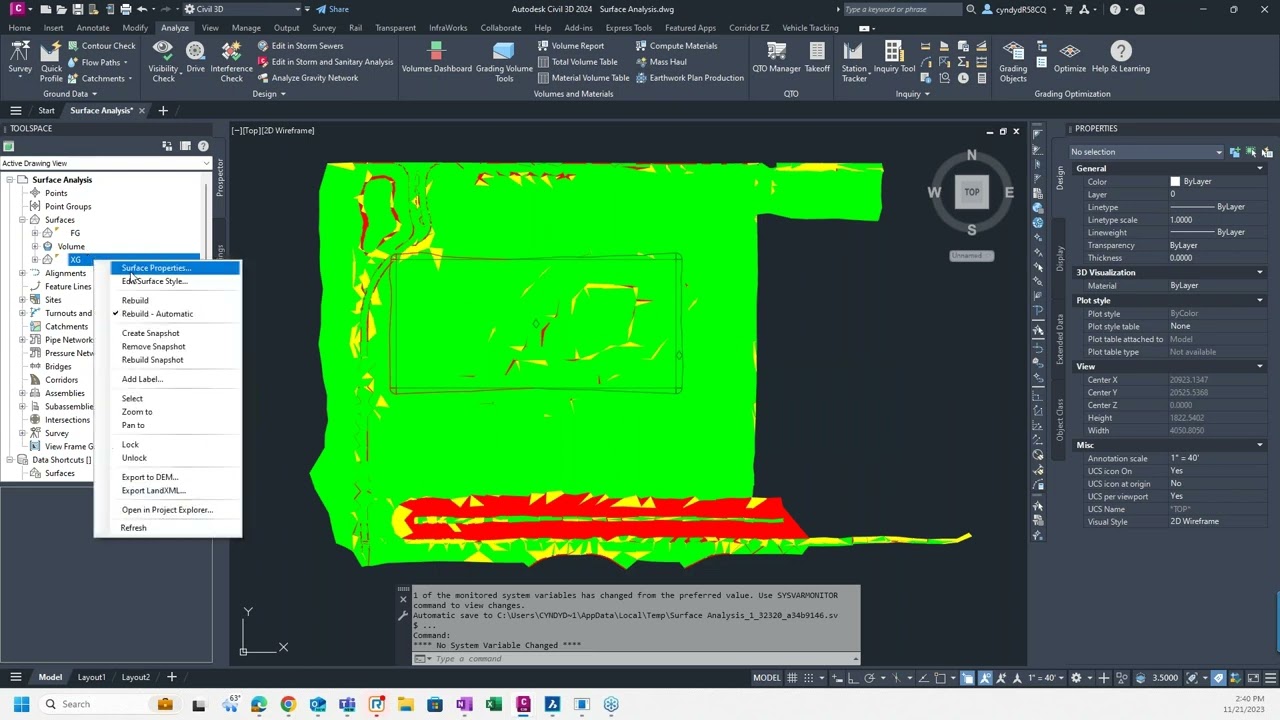

The process described involves creating a new surface for slope analysis in a drawing, similar to the creation of an existing ground surface. The steps include saving the drawing as a slope analysis drawing, creating a new surface under the 'c topo' layer, and naming it 'slopes' with a 'slope banding 2D' style. The description can be customized to indicate slope intervals. Data is added by expanding the 'slopes' definition and adding contours, isolating layers, and defining a boundary called 'property' as an outer boundary. The surface properties are accessed to perform a slope analysis with four ranges, assigning colors to different slope percentages: green for 0-15%, yellow for 15-25%, orange for 25-50%, and red for critical slopes. The analysis results in a slope table, and the surface is visually represented with color-coded slopes, indicating mostly acceptable slopes with some critical areas. This analysis can be used in exhibits for approval or permitting purposes.
