Frequency Generator / Counter - Low Cost (Function Details)

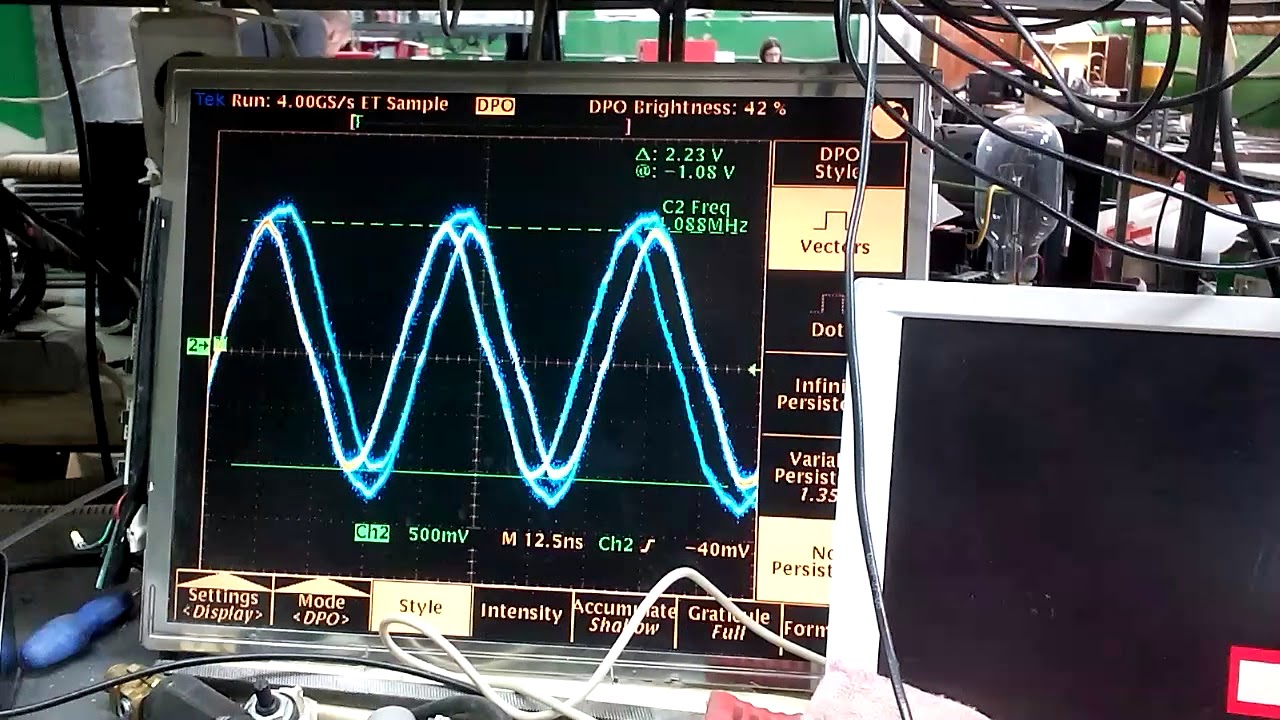

More details on features and functions of a Feeltech FY3200s low cost frequency generator / counter. BASICS 2 channel output (generator) 1 channel input (counter) 2 TTL ports 85 to 220 volts AC power input ------------------------------ Waveforms: Sine, Square, Triangle (Ramp), Arbitrary, Sawtooth, Pulse, Noise, etc. Waveform Length: 2048Points Sampling Rate: 250MSa/s Vertical Resolution: 12 Bits ---------- Output Characteristics: Amplitude (50Ω): 10mVpp~20Vpp (No load) Amplitude Resolution: 10mV Amplitude Stability: ±0.5%/ 5 Hours Amplitude flatness: ±5%(LT 10MHz)；±10%(GT 10MHz); --------- Waveform Output: Impedance: 50Ω±10%（Typical） Protection: GT 60 secs when short-circuited. --------- Dc Offset: Offset Range: ±10V Offset Resolution: 0.01V TTL Output: Dual-channel TTL electric level synchronize CH1 & CH2. Phase differences are adjustable. Electrical Level Amplitude: GT 3Vpp Fan-out: GT 20 TTL Load Rise/Fall Time: LE 20ns --------- CMOS Output: Low Electric Level: LT 0.3V High Electric Level: 1V~10V Rise/Fall Time: LE 20ns
