Low-jitter LVCMOS Fanout Clock Buffers by IDT

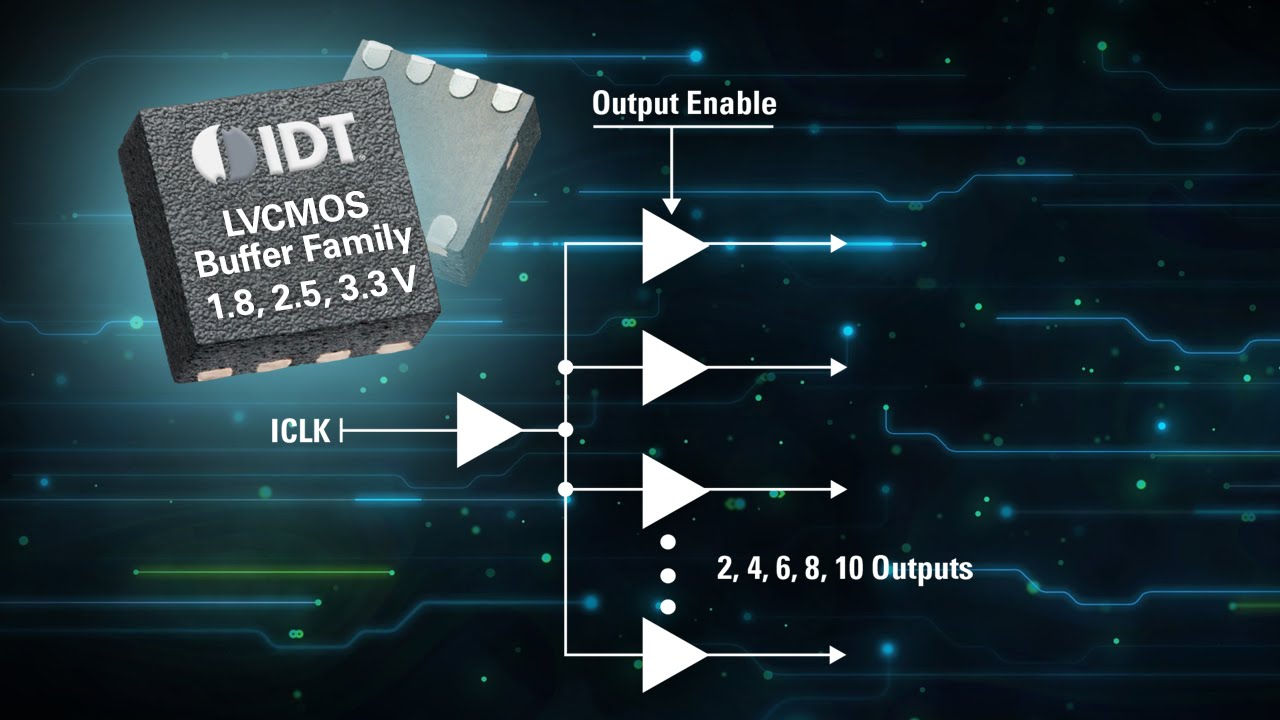

The 5PB11xx family of LVCMOS fanout buffers provides low-jitter metrics of sub-50 fsec RMS additive phase jitter (12 kHz to 20 MHz), offering system designers greater jitter margin than competitive products to help them meet system clock requirements. The small die size enables the chip to fit within a DFN 8-pin package as small as 2 by 2 millimeters. The buffers are available with 2, 4, 6, 8 and 10 LVCMOS outputs and can support 1.8 V, 2.5 V and 3.3 V power supplies and outputs. They have a low output skew of 50 psec with only 14 mA core current consumption. The buffers are ideal for high-end consumer, industrial, data communications, telecommunications and computing applications where both timing budget and board space are at a premium. All the devices in the new buffer family are characterized at an extended temperature of -40 C to 105 C enabling the new buffers to meet the requirements of automotive infotainment applications as well. Presented by Baljit Chandhoke, marketing manager at IDT. For more information about IDT's clock buffer solutions, visit http://www.idt.com/go/FanoutBuffer.
