Guide for Star Wars Disney park Exclusive/Legacy Rey (Anakin) Lightsaber Neopixel+CFX Conversion

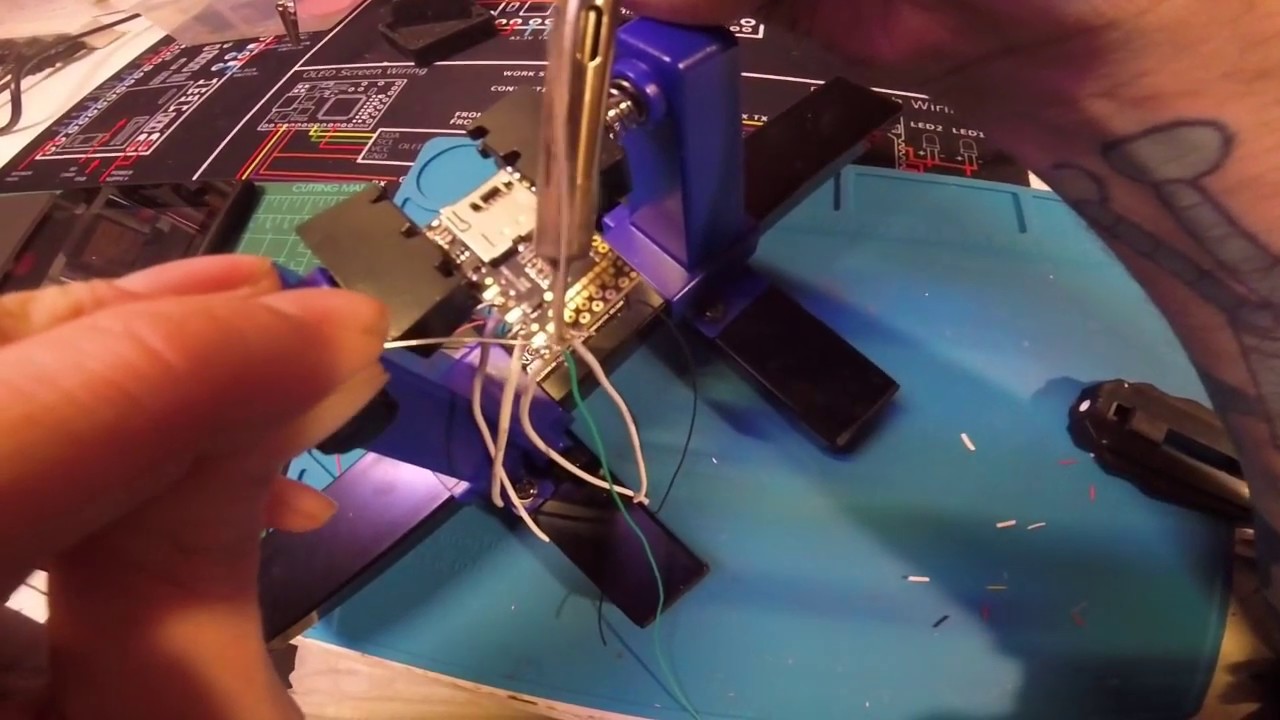

Edit 2020/10/4: This is my early work when I was a noob haha. I now have my own Saber studio and my first hilt run. My Facebook page CCSabers:   / ccsabers   My First TCW S7 Ahsoka Tano Inspired Lightsaber run: https://www.facebook.com/103446498073... ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ This is a quick guide of converting the Disney park Exclusive Rey/Anakin lightsaber using CFX board. Forgive my poor English. Plz Feel free to ask me any questions! Checklist: !!!!!!!!!!The battery-related wire must use 22AWG!!!! This is a must-do!!!! Others can use 26-28AWG The things need to convert: Battery chassis: need to change it into parallel!!! The speaker (This is a must-do) : The original one is 0.5W. However, the output of this soundboard is 2W to 3W. The speaker will die after you use it several times. So you need at least 2W speakers. There's tiny extra space after you install a 2W speaker. Watch out not to stop the diagram working. Or IT WILL BROKEN immediately because of the high current. The Soundboard: Dissodering everything and change the wire! I strongly recommend soldering the wire on the end of the front pins(which connect the hilt and the blade). And hardwire the battery chassis and main one It can prevent power loss when you do the clash! The lightship: Either SK6812 OR WS2812 One 470 Ohm resistor on Dataline in the blade. I also resoldered the wire later since there is too many exposed metal. ENABLE the Neopixel: Go to the CFX root menu and find config ledstrip=122 (Number matches your LEDs) strippower=1111 Single switch Setting: menugest=1 switch=3 offd=1500 spectrum_mode=2
