Hdpe Pipe Joint | Hydraulic 200mm

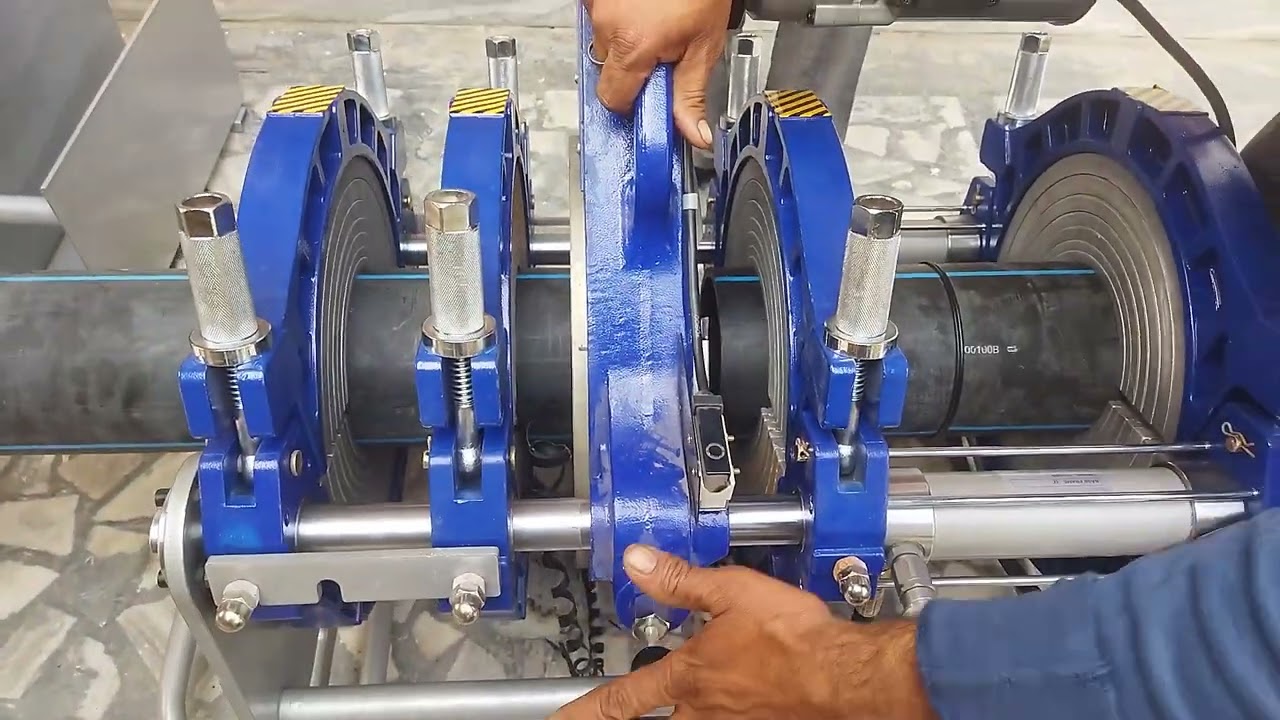

​ ‪@marutisafex‬ Model: CN-63/200H Semi automatic hydraulic welding machine Butt fusion welding is an effective, trouble free connecting method for PE, HDPE, PP, PVDF pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe. CN-63/200H provides standard welding range of 63mm to 200mm Data Sheet Model: CN-63/200H Welding range(mm): 63-200 Standard reducers(mm): 63-75-90-110-125-140-160-180-200 Weldable material: PE PPR PB PVDF PP MPP(HDPE MDPE LDPE) Power supply: 220V, 50/60Hz, 1PH Total power: 3.25 KW Heating plate: 1.5 KW Planing tool: 1 KW Hydraulic station: 0.75 KW Pressure adjusting range: 0-6.3 MPa Max. Temperature : 270ºC Temperature Deviation: ±5ºC Piston Area: 11CM² Package data Frame: 91X54X54cm Hydraulic Unit: 70X54X51cm(2/Plywood box-125kgs) Body Dimension Frame: 77X43X38cm Hydraulic Unit: 59X34X42cm Product Description PE, HDPE pipes have been used extensively around the world. It is a cost effective solution for a broad range of piping applications in the municipal, industrial, marine, mining, landfill, duct and agricultural industries. Butt fusion welding is an effective, reliable connecting method for PE, HDPE, PP, PVDF pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like a whole pipe. To achieve a good jointing, a steady, precise, robust butt welding machine is critical. MARUTI SAFEX had been developing, manufacturing and distributing plastic butt welding equipment since 2015. It's our pleasure to help you build reputation in the piping project. The Hydraulic butt fusion welding machine, mainly consists of 4 major parts: Carriage (also called frame or base), Planing tool(also called trimmer or facer), Mirror(also called heater or hot plate) And Hydraulic station(also called hydraulic unit or electric unit) with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control. Product Characteristics 1. Reinforced structure of carriage part 2. Durable copper wiring motor, PTFE coating from Dupont or Daikin 3. Full chain transmission in planing tool, More heavy duty 4. Data logging device optional 5. Italy DNP Hydraulic quick coupling Basic frame *Italy DNP Hydraulic quick coupling *Machine frame Complete welded base structure, Steady and robust *Lock bolt set & fine machined clamping set *Chromated hydraulic cylinder *Die casting aluminium reducers A380, A360(EN AC-46500) sandblasting & spraying treatment *Chromated integral shaft made of 1045(ASTM)/S45C(JIS)/C45(DIN) steel Base made of Q235 steel with spraying treatment *Frame made of square pipe & sheet metal Hydraulic Unit *Open design structure *Electricity leakage protection switch *220V asynchronous motor *Precise valve *16Mpa pressure gauge *High quality motor & hydraulic seals Trimmer *HSS blade with double edge *Die-cast aluminum trimmer plate, durable & anti-corrosion *Chain transmission *Aluminum alloy frame of motor with good heat dissipation performance *Pure copper wire full size strong motor *Carbon brush Heating plate *Bakelite handle with high insulating property and thermal insulation *Thermocouple temperature sensor *PTFE Teflon Coating from Dupont or Daikin *Aviation plug ​ ‪@marutisafex‬
