Firmware Modding Guide for H96 Max H313 and bypass Burn Firmware Failed скачать в хорошем качестве

Firmware Modding Guide for H96 Max H313 and bypass Burn Firmware Failed

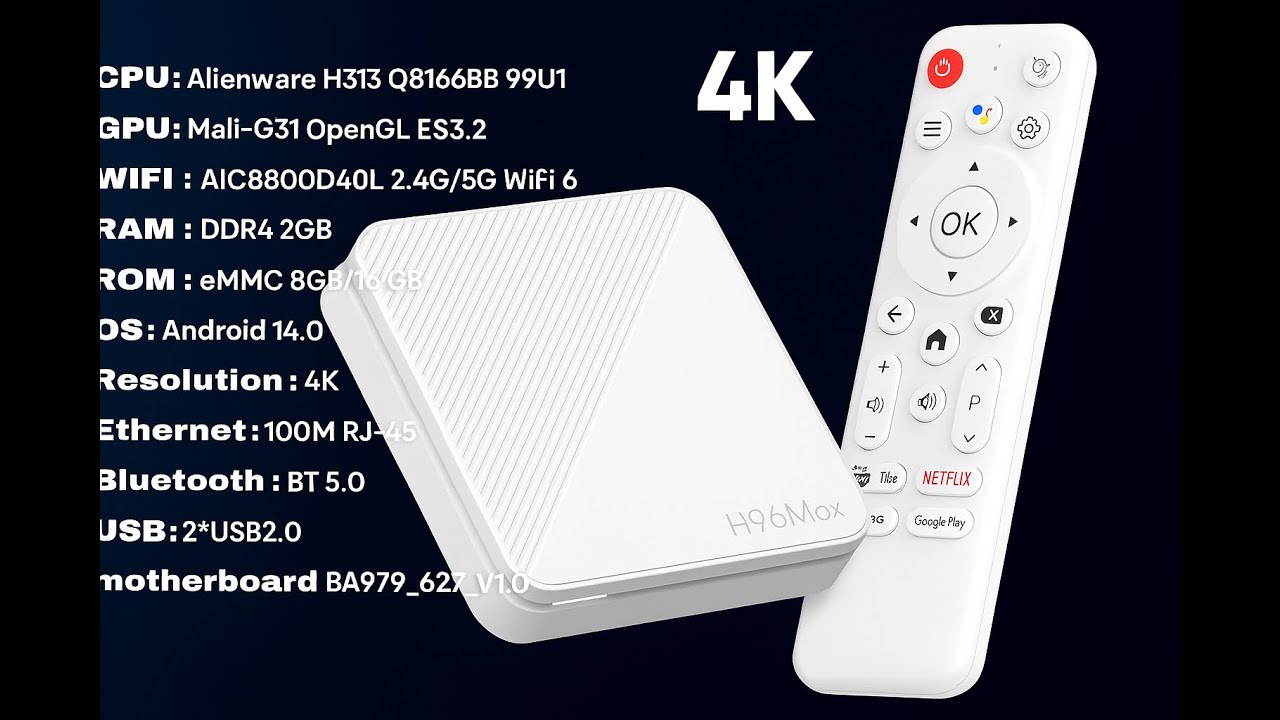

🔧 Firmware Modding Guide for H96 Max H313 Device Specs : motherboard BA979_627_V1.0 CPU:ALienware H313 Q8166BB 99U1 Quad Core ARM Cortex A53 GPU: Mali-G31 OPenGL ES3.2 WIFI : AIC8800D40L 2.4G/5G WiFi 6 RAM : DDR4 2GB ROM : eMMC 8GB/16GB OS : Android 14.0 Resolution : 4K Ethernet: 100M RJ-45 Bluetooth: BT 5.0 USB:2*USB2.0D ⚙️ Goal: Create a working hybrid firmware with Wi-Fi and IR remote support. 🟡 Phase 1: Unpack Firmwares Download MIK Multi Image Kitchen from : https://github.com/CryptoNickSoft/MIK Unpack Q1H313A33ATV.img ✅ System works, ❌ No Wi-Fi, ❌ No IR Download: https://www.needrom.com/download/q1-h... Unpack Mortal_T1_A34_20250304.img ✅ System + Wi-Fi, ❌ No IR Download : https://disk.yandex.ru/d/8mxAXYE7sYDIhA Unpack official H96 Max firmware ❌ Doesn’t boot, ✅ Needed only for IR remote drivers Download: https://disk.yandex.ru/d/N9avgV_wJyn7OA 🟠 Phase 2: Mix Bootloader Copy bootloader files from a working firmware. Do NOT copy dtb files — avoid conflicts. Env + sunxi + sys_config.fex files keep the original of mortal 🔵 Phase 3: Fix IR Remote Copy IR remote control files from the official firmware to your hybrid system remote.txt and keylayout folder in system Repack the hybrid firmware into a .img file. 🟢 Phase 4: Setup Tools Download and install the latest PhoenixSuit install the driver of the allwinner H313 too Put your H96 Max into FEL mode: Hold the AV button, plug in the USB cable, and wait 3–10 seconds. PhoenixSuit will detect the device — install the driver if needed. 🟣 Phase 5: Flash Hybrid Firmware Open PhoenixSuit, load the new .img file. Do not click anything yet. Enter FEL mode again: Hold AV button, plug USB, wait for PhoenixSuit to detect the device. Let PhoenixSuit flash the image automatically. ✅ Done! You now have a working system with Wi-Fi + IR Remote support.
