CA18DET Variable Twin Turbo Start up

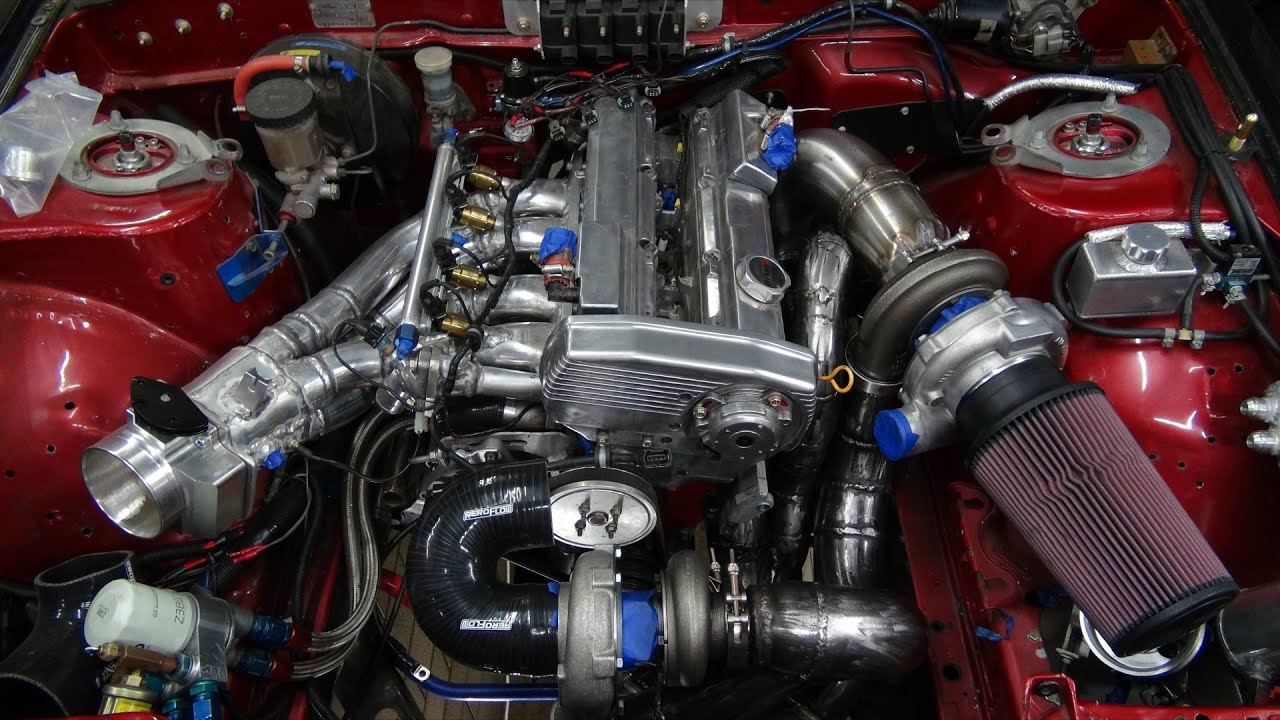

for up to date progress on the car have a look at my Facebook Page:   / styleslider400   i have to give credit to twinchargedca18 for the cool idea with the bypass valve and turbo actuator. quick explanation of the setup down below. thanks for your patience and sorry for the long wait on another video guy's i really wanted to get this setup done with out having to work around a camera, only a few jobs left to do before tune time which it badly needs in this video with all the new mods, the manifold is very responsive considering injectors are 70% further away from the flange plate on this manifold so the injector timing will be way out and a larger throttle body with a different type of throttle position sensor which will probably need re calibrating on the ecu. on the exhaust side, exhaust air flows through a Garrett gtx2860 then into the gtx3076, 2x 60mm turbosmart waste gates flow exhaust around the gtx2860 turbo and into the gtx3076 when a desired boost pressure is obtained then a final 60mm waste gate controls overall boost pressure for the 3076, Air intake runs through the air filter through the gtx3076 turbo then into the gtx2860, the air coming out of the small turbo plumbs into the bottom of the intercooler then into the intake manifold. the small turbo should create boost quickly when the small turbo has ramped up to around 12-13psi the big turbo will have all the air it needs to build whatever boost pressure the boost controller is set to (17psi and higher) when the big turbo has reached a higher pressure then the 2 60mm waste gates spring pressure (ones sending exhaust gasses around the small turbo) the throttle body on the intercooler then starts to open up. as the boost pressure climbs higher the valve opens up more the actuator that controls the bypass valve gets its pressure on the alloy pipe brass fittings fitted in between the large turbo's outlet and the small turbo's inlet, the small turbo should start to loose energy due to the 2 waste gates opening up as the gtx3076 is now working all by it's self and is continually building boost. -the intercooler is plumbed up like the old one coolant flow's from the radiator after being cooled down then through the intercooler and into the motor then back to the radiator. the intercooler's core has 2x the surface area as the old one so a much lower pressure drop across the core should be gained.
