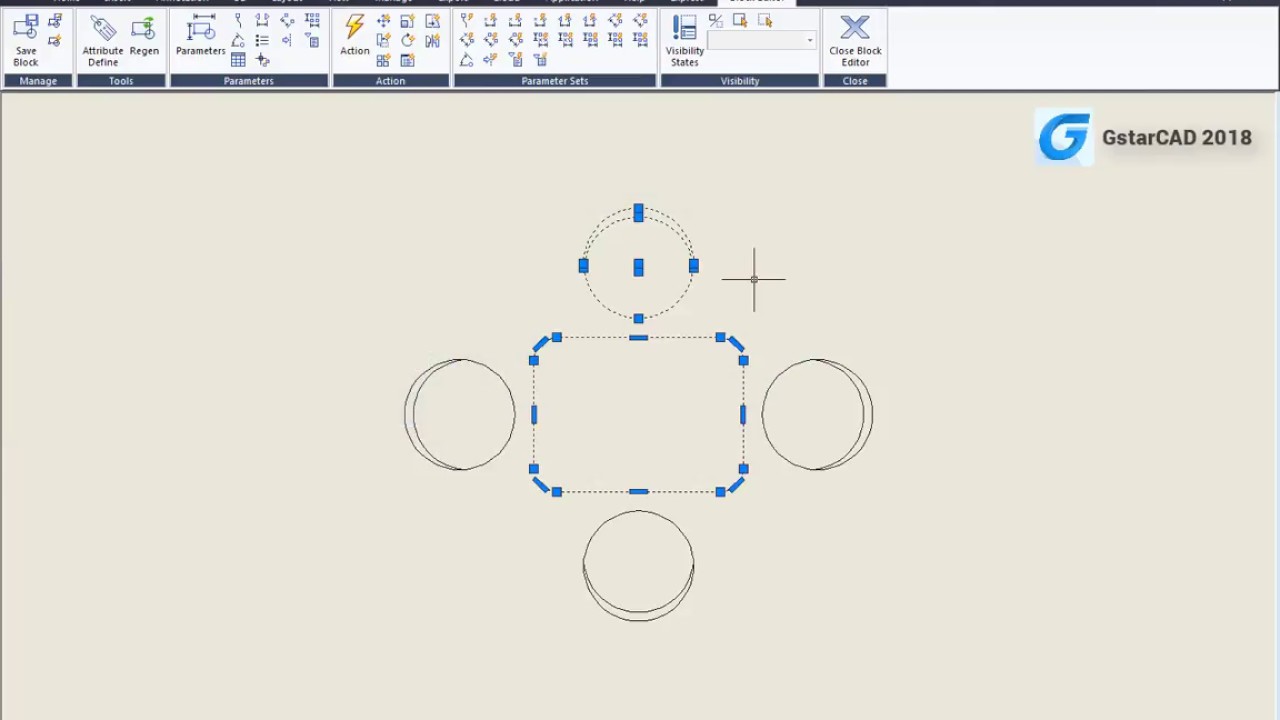

PART 2 VISIBILITY STATES -We already created a dynamic block with Linear parameter and stretch action. -What about if we show and hide the chairs of our dynamic block. -Select the block, do right -click mouse and select the “Block Editor” option from the menu. -Select the block name from the list and press “Ok” button. -Today let’s perform “Visibility Sates”. -What we want to do show and hide the chairs of the table. -First, select the “Visibility” parameter. -On the command prompt select “Name” option. -Input a proper name like “Display Chairs”. -Then specify the parameter location. -We double-click the parameter label to open the “Visibility States” dialog box. -Click the “Rename” button and name it as “With Chairs”. -Click the “New” button and name it as “Without Chairs”. -Now on the visibility panel we have created two visibility states. -Select the “Without Chairs” visibility. -Then select the four chairs. -Press the “Make Invisible” button to make the chairs invisible. -Now select the “With Chairs” visibility from the panel. -We’ll see the chairs again. -If we press the “Visibility Mode” button, we will see both states. -Press the “Close Block Editor” button and “Save” the changes. -If click the block, notice there is a grip arrow head there. -Click the grip to deploy the visibility options from the menu. -And select the desire state “With or Without Chairs”. Learn more GstarCAD: GstarCAD 2018: http://en.gstarcad.com/cad/ GstarCAD Mechanical 2018: http://en.gstarcad.com/mechanical/ GstarCAD Architecture 2017: http://en.gstarcad.com/architecture/ Updating .... Thanks for watching!
