CHARGE CORONA WIRE RICOH GRID REPLACEMENT RICOH

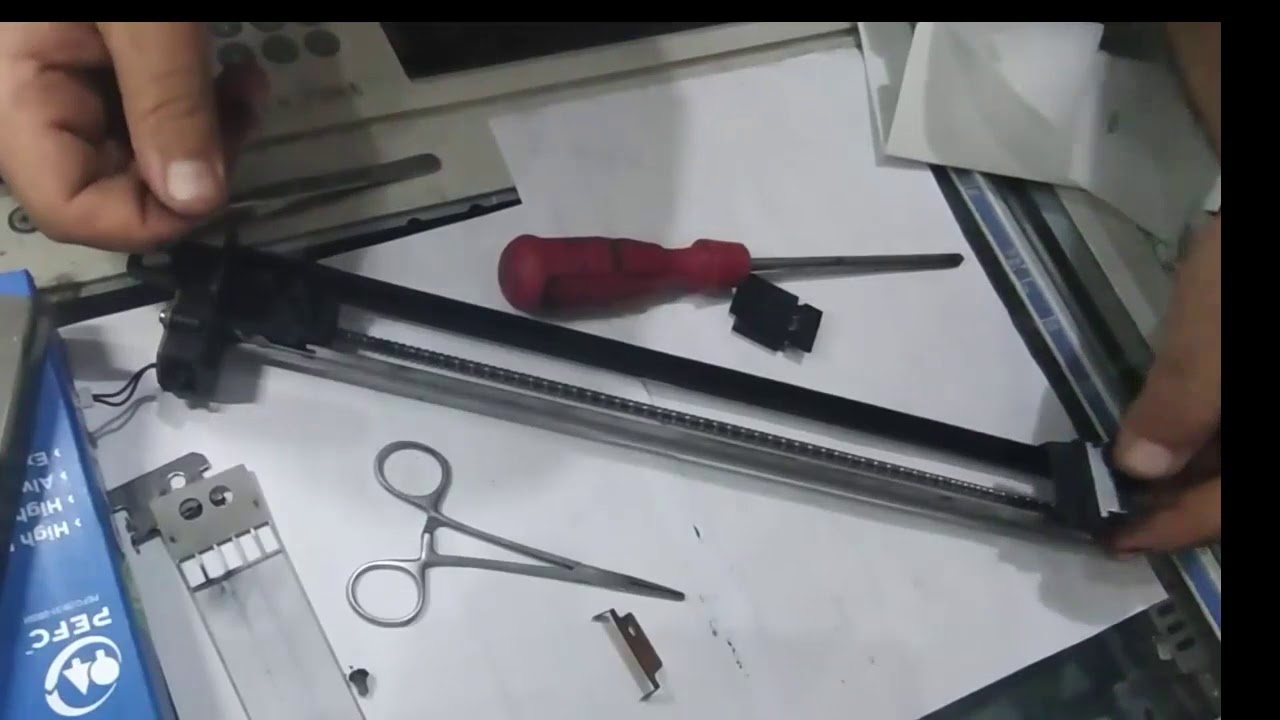

Kod błedu który wskazuje na uszkodzenie elektrody ładującej jest poniżej SC300: Charge Corona Output Error 1 SC301: Charge Corona Output Error 2 SC303: Charge Grid Output Error 1 SC304: Charge Grid Output Error 2 SC305 SC306: corona error problem CHARGE CORONA 1. Clean the corona wires with a dry cloth. Do not use sandpaper or solvent. 2. Clean the charge corona casing with water first to remove NOx based compounds. Then clean it with alcohol if any toner still remains on the casing. 3. Clean the end block with a blower brush first to remove toner and paper dust. Then clean with alcohol if any toner still remains. 4. Do not touch the corona wires with bare hands. Oil stains from fingers may cause uneven image density on copies. 5. Make sure that the wires are correctly between the cleaner pads and that there is no foreign material (iron filings, etc.) on the casing. 6. When installing new corona wires, do not bend or scratch the wire surface. Doing so may cause uneven charge. Also be sure that the corona wires are correctly positioned in the end blocks. (See Charge Corona Wire Replacement) 7. Clean the grid plate with a blower brush (not with a dry cloth). 8. Do not touch the charge grid plate with bare hands. Also, do not bend the charge grid plate or make any dent in it. Doing so may cause uneven charge. After installing new wires, reset SP2-001-1 to 2-001-6 (corona voltage and current) to the defaults. Then do SP2-962 (process control initialization). YOUTUBE SUPPORT:    / @mrricoh   PATREON:   / copyexpertmoviestudio   PATRONITE: https://www.patronite.pl/1796 📽Camera: CANON EOS250D 🎬 Plan lighting: Sachtler Reporter 200D 🎤 Microphone: Trust GXT 252 + Emita Plus Steraming 💻 Movie editing program: WonderShare Filmora Copier parts http://www.copy-expert.pl/ Facebook:   / copy-expert-113431678801597   Used copier parts http://www.copy-expert.com/ Are you interested in cooperation? That's good. 📧 Please contact: copy-expert@wp.pl
