Telescopic Belt Conveyor

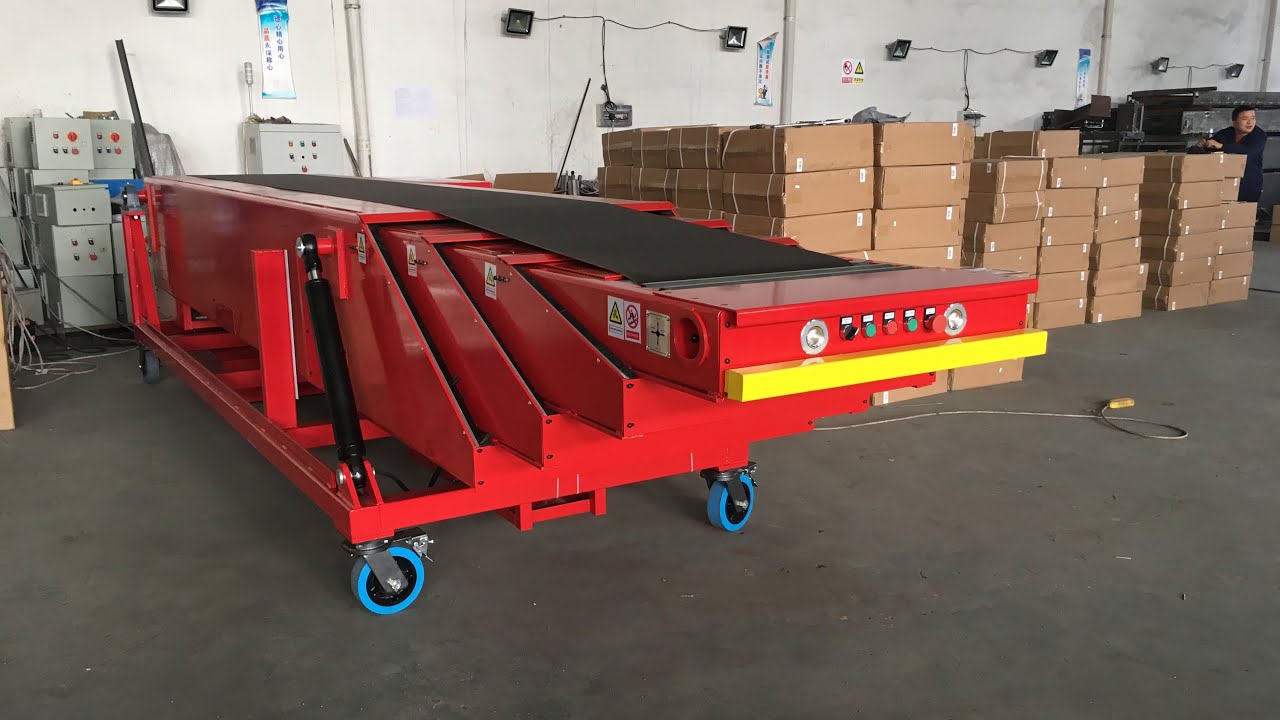

BRAND: ANH A high chassis telescopic belt conveyor is suitable for dockless warehouses. This is a complete movable loading and unloading equipment, by manual movement or equipped with a motorized movement system. Widely used in Textiles, E-commerce, Third party logistics, Food, Beverages, Pharmaceuticals, Clothes, furniture and FMCG, etc. ☆ Base section 5000mm+4500mm, extension sections 6500mm ☆ Overall Width: 1390mm ☆ Overall Weight: 4000kg (Approximately) ☆ 2nd section height to ground: 1800mm ☆ Belt width: 3mm thickness black PVK belt, width 800mm ☆ Running speed: 10-35m/minute (adjustable with Schneider frequency converter) ☆ Belt running direction: Bi-directional (Forward& Reverse) ☆ Belt driven/ Telescopic motor/ Inclined part motor: SEW or Nord brand ☆ Hydraulic up/down: 0~4°, can lift up 780mm at the front from belt level ☆ PLC: Siemens brand ☆ Frequency converter/contactor/relay/button: Schneider ☆ Control panel: 2 sets (1 set at electrical control box included EMERGENCY STOP, START, STOP, EXTEND, RETRACT, UP, DOWN, CW/CCW for running direction switch and POWER/RUN indicator, another set at the front of conveyor included START, STOP, EXTEND, RETRACT, UP, DOWN, LIGHT, EMERGENCY STOP) ☆ Surface treatment: powder coated, color to be confirmed. ☆ Use: Mobile with caster wheels by manual ☆ Capacity: maximum 50kg/m ☆ Power supply: 3 phase +N+PE, 380V 50HZ ☆ Electrical cable: 10 meters with a set of female/male plug
