555 Timer as Bistable Multivibrator Explained

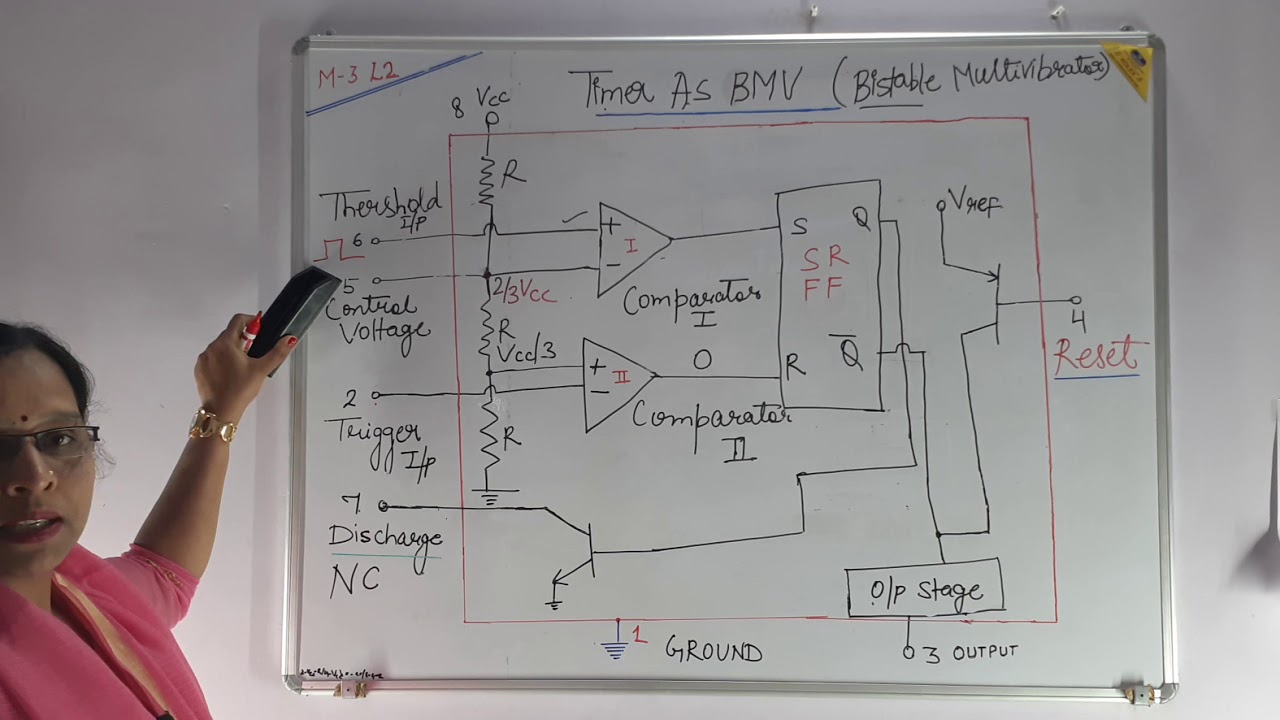

In this video, the design of Bistable Multivibrator using 555 Timer and the working of the circuit has been explained. By watching this video, you will learn the following topics: 0:22 What is Bistable Multivibrator 1:00 The Design and Working of 555 Timer as Bistable Multivibrator What is Bistable Multivibrator : The Bistable Multivibrator has two stable output states and at any given point the output will be in one of the two stable states. Depending on the external triggering action the output will switch from one stable state to the other stable state. And the circuit acts like a flip-flop. In this video, the design and working of Bistable Multivibrator using 555 Timer have been explained. The circuit does not require charging capacitors (unlike astable and monostable operation). By controlling the input at Reset and Trigger pin, 555 timer can be configured as Bistable Multivibrator. This video will be helpful to all students of science and engineering in understanding the design and working of 555 timer as Bistable Multivibrator. The more videos on 555 timer ic: Introduction to 555 Timer :    • Introduction to 555 Timer: The Internal Bl...   555 Timer as Monostable Multivibrator:    • Monostable Multivibrator using 555 Timer E...   #BistableMultivibrator #555Timer Follow me on YouTube:    / allaboutelectronics   Follow me on Facebook:   / allaboutelecronics   Follow me on Instagram:   / all_about.electronics   Music Credit: http://www.bensound.com/
