V2 P6 3.5 Kilowatt Hour LiFePo4 DIY Portable Solar Power Generator

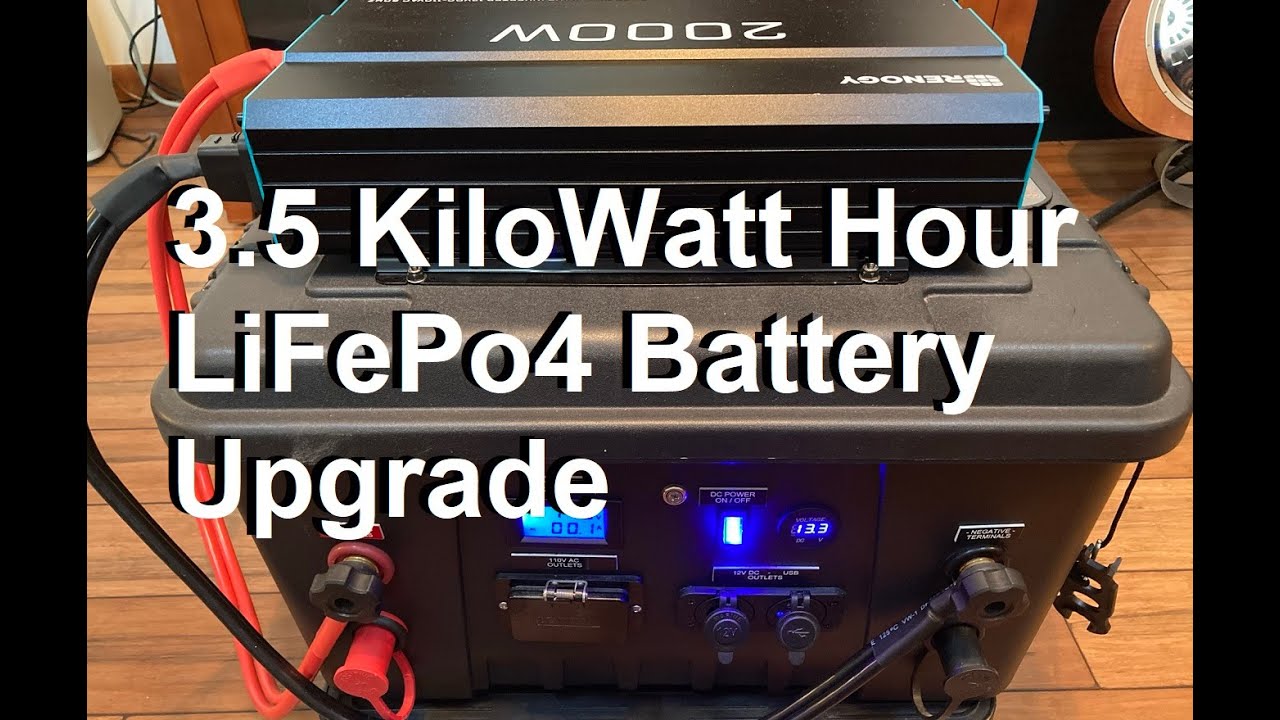

I completed the final rewiring of my portable solar power generator following the retrofit installation of a new 12V 280Ah lithium iron phosphate battery pack. I made a few important changes to my original plan for rewiring the system that will be described in detail in this video. One of the changes involved installing a current meter that will improve the ability to accurately and reliably monitor the state of charge of the LiFePo4 battery. Links are provided below to: my FINAL wiring schematic for this upgrade a guide sheet for assembling, top balancing, and commissioning 3.2V 280Ah LiFePo4 prismatic cells products and supplies used during this LiFePo4 battery upgrade. 2021 LiFePo4 Upgrade WIRING SCHEMATIC http://www.creeksideartifacts.com/PSP... LiFePo4 3.2V 280Ah Prismatic Cells Assembly, Top Balancing, and Commissioning GUIDE SHEET http://www.creeksideartifacts.com/ATB... COMPONENTS 3.2V 280 Ah Lithium Iron Phosphate LiFePo4 Cells (I purchased from a different vendor, but these are comparable to what I used) https://amzn.to/40uZ7lM Daly BMS 4s 12V 150 Ah Battery Management System https://amzn.to/2QUx0hv ISDT BattGo BG-8S Battery Meter https://amzn.to/31sWJj0 Renogy 3000W Pure Sine Wave Inverter 12V DC to 120V AC Converter for Home, RV, Truck, Off-Grid Solar Power Inverter 12V to 110V with Built-in 5V/2.1A USB Port, AC Hardwire Port, Remote Controller https://amzn.to/3ZpEUN3 AiLi Voltmeter Ammeter Voltage Current Meter Voltmeter Ammeter 100V 350A Caravan RV Motorhome 999 AH https://amzn.to/3z7fWrl WIRE, HARNESSES, CONNECTORS Apex RC Products JST-XH 4S Balance Plug W/ 6" / 150mm Wire Lead https://amzn.to/3wepPk2 Heat Shrink Wire Connectors 1/4" Red 22-16 AWG Copper Ring Terminals https://amzn.to/3rvDuQt BNTECHGO 22 Gauge Silicone wire red and black each 10ft Flexible 22 AWG Stranded Copper Wire https://amzn.to/3dhO8VV TOOLS DC Power Supply Adjustable (30V 10A), Eventek Variable Switching Regulated Digital Power Supply with Alligator Leads US Power Cord (30V 10A) https://amzn.to/42HIepS AstroAI Digital Multimeter https://amzn.to/31x8MMk Crimping Tool Set 5 PCS by Wirefy - Ratcheting Wire Crimper Tool with Interchangeable Dies https://amzn.to/3fuzs8q HARDWARE M6-1.0 x 20mm - Stainless Steel Socket Set Screws Grub Screws https://amzn.to/3m2BbDc Stainless Steel Round Flat Washer for Bolt Screw M6x18mmx1.5mm https://amzn.to/2QUygkJ M6 Thread 304 Stainless Steel Serrated Flange Metric Hex Lock Nuts https://amzn.to/39tCfLh KAPTON TAPE High Temperature Kapton Tape https://amzn.to/3g1tYT8 HEAVY DUTY CABLE TIES Extra Heavy-Duty Cable Ties, 48 Inch., 175 Lbs. Tensile Strength https://amzn.to/323Scnj As an Amazon Associate I earn from qualifying purchases. Allright in Louisiana - Instrumental (ID 1303) by Lobo Loco is licensed under an Attribution-NonCommercial-NoDerivatives 4.0 International License.
