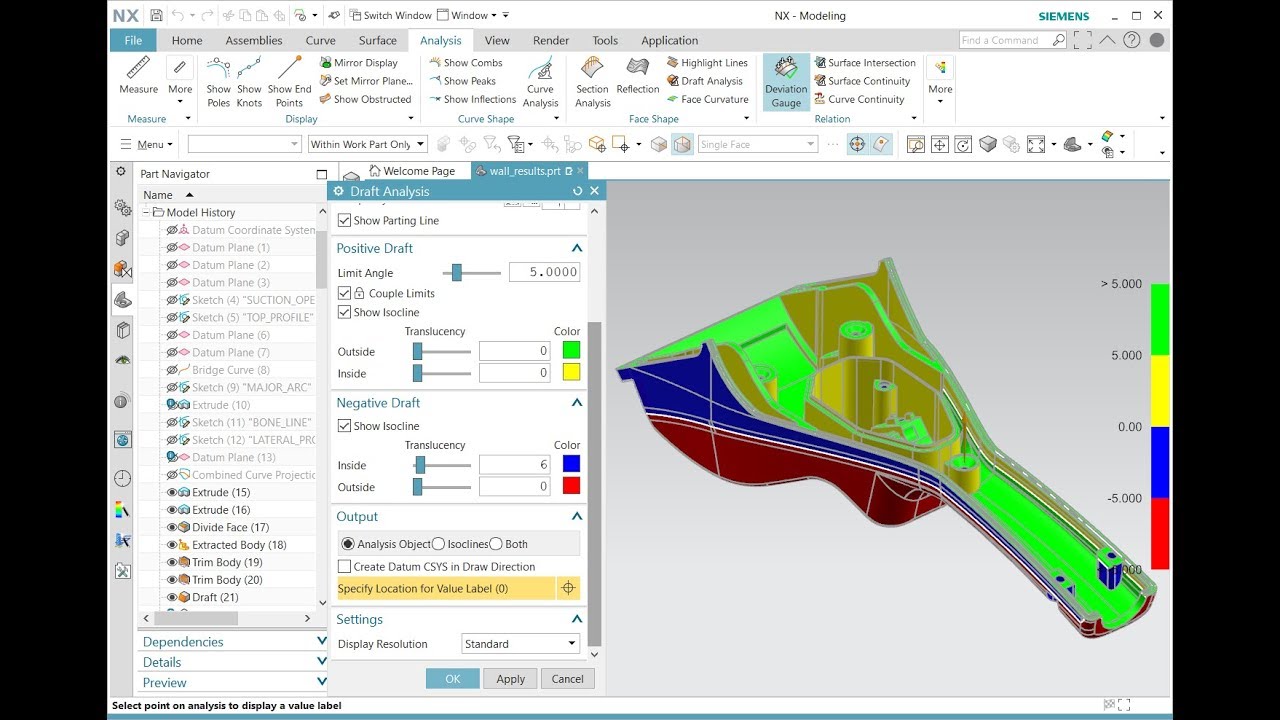

Please subscribe to my channel -    / @nikhil_desai   In NX CAD, both the Draft Analysis and Slope Analysis commands are essential tools for assessing the draft angles and surface slopes of a part or model. Let's delve into each command and discuss their differences in terms of flexibility: 1. **Draft Analysis**: The Draft Analysis command in NX allows you to visually inspect the draft angles of surfaces within a model. Draft angles are crucial in injection molding and other manufacturing processes to ensure parts can be easily ejected from molds. When you activate the Draft Analysis command, NX displays surfaces in different colors based on their draft angles. Typically, surfaces with the desired draft angle are displayed in green, while those with insufficient or excessive draft are shown in different colors to indicate areas of concern. This tool provides a clear visual representation of where draft corrections may be necessary to optimize part manufacturability. 2. **Slope Analysis**: The Slope Analysis command, on the other hand, goes beyond draft angles to analyze the surface slopes of a model. It evaluates the curvature and gradient of surfaces, which is useful for various applications such as aerodynamics, toolpath generation for machining, and ergonomic design. Similar to Draft Analysis, Slope Analysis provides a visual representation of surface slopes using color gradients. It helps identify regions where surface curvature might not meet design requirements or where modifications are needed for functional or aesthetic reasons. Slope Analysis is particularly valuable when designing products where smooth transitions between surfaces are critical, such as automotive bodies or consumer electronics. In terms of flexibility, both commands offer valuable insights into the geometry of a model, but the choice between them depends on the specific requirements of your design and manufacturing process: *Draft Analysis* is more focused on assessing draft angles for manufacturing purposes, making it indispensable for injection molding or casting applications. It provides a straightforward evaluation of draft angles, helping you ensure parts can be manufactured without issues. *Slope Analysis* offers a broader analysis of surface curvature and gradient, making it suitable for a wider range of applications beyond draft assessment. It provides a comprehensive understanding of surface geometry, aiding in design optimization for various purposes. Ultimately, the command that provides more flexibility depends on the specific requirements of your project. If ensuring proper draft angles for manufacturing is your primary concern, Draft Analysis may be the preferred choice. However, if you need to analyze surface slopes for design optimization or other purposes, Slope Analysis offers a more comprehensive toolset. #nxtutorial #cadcamtutorials #cadtutorials #nxcad #siemensnx #3dmodeling #nx12 #siemensnxtutorial #unigraphics #nxdesign #nxshortsvideo #shortkeys #injectionmoulding #software #nx12 #moulds #newdesign #nxdesign Siemens NX tutorials Siemens NX tutorial for beginners Siemens NX tutorial free UG NX tutorial Siemens NX advanced tutorial Siemens NX 12 tutorial Siemens NX 12 basics NX cad tutorial NX cad full course NX tutorial for beginners NX 12 tutorial for beginners Unigraphics NX tutorial for beginners Thanks, #nikhildesai
