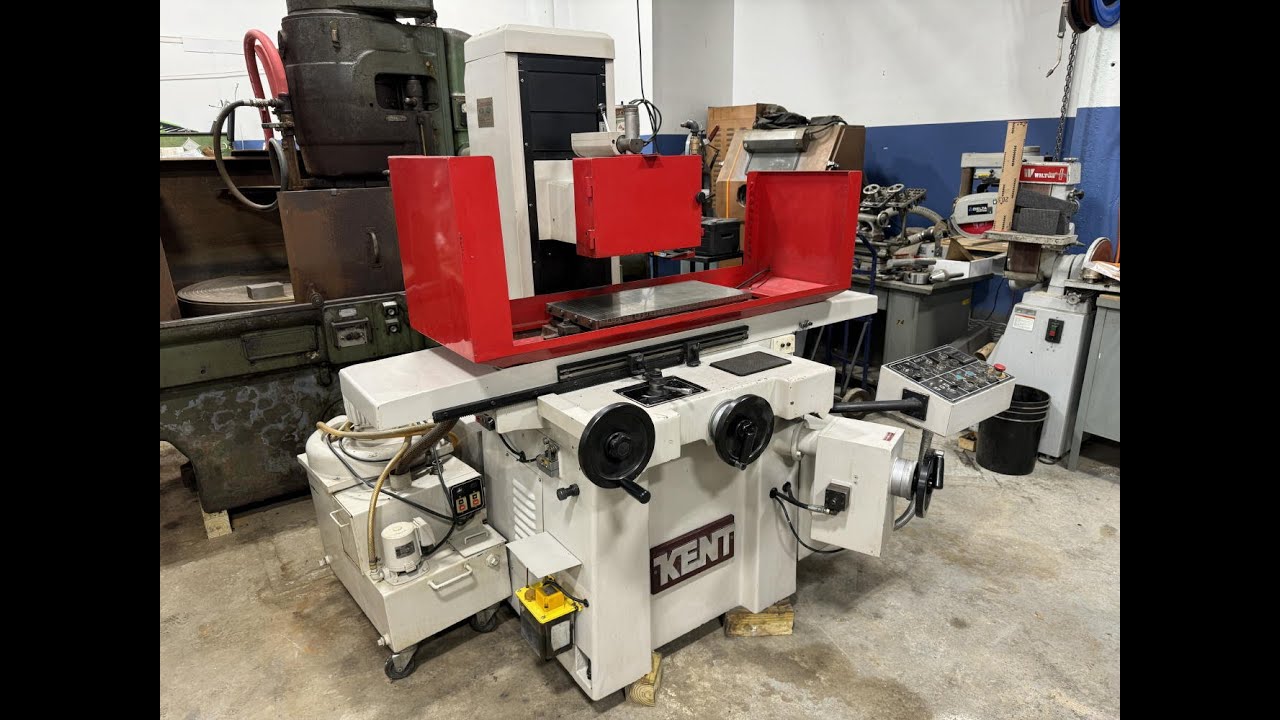

12" x 24" Kent Hydraulic Surface Grinder w/ Automatic Incremental Downfeed

https://www.machineryvalues.com/inven... 12" x 24" Kent Hydraulic Surface Grinder w/ Automatic Incremental Downfeed Model: KGS-63AHD S/N: 143550 New: 2014 Capacity Overall table working area .................... 11.81" x 25.59" Longitudinal table travel:..................... 27.95" Cross table travel:............................ 13.39" Maximum table load (with chuck)................ 550 Lbs. Maximum/Minimum distance betweek working table and spindle center:.................... 21.25"/4.72" Table Cross Feed Longitudinal table speed:...................... 8 to 100 F.P.M. Cross feed handwheel is graduated in increments of:............................... 0.0001" Automatic cross feed per stroke of table:...... 0.02" to .4" Grinding Wheel Standard wheel dimensions:..................... 14" diameter Spindle Speed:................................. 1,740 R.P.M. Downfeed Automatic down feed increment:................. 0.0001" to .004" Downfeed handwheel is graduated in increments of:............................. 0.0001" Downfeed per revolution of handwheel: ......... 0.02" Approximate Weight: ........................... 4,000 Lbs. Equipped with: Hydraulical longitudinal feed Automatic Electro-mechanically powered cross feed Automatic incremental downfeed of grinding wheelhead Power rapid elevation of grinding wheelhead 12" x 23-5/8" Fine division electromagnetic chuck with console mounted controls including ..... variable magnetic strength, magnetization/demagnetization mode selector, and voltage gauge meter 14" Diameter x 1.5" Width x 5" Bore Grinding Wheel External Hydraulic pump and tank External coolant system with magnetic separator 5 HP 3/60/230-460 volt spindle drive motor with electrical ** Exceptional Condition & Appearance (Original Paint) ** ** Inspect Under Power in our Harrison, NJ Warehouse **
