How I turn a 2D image into a 3D stamp for custom pottery logos

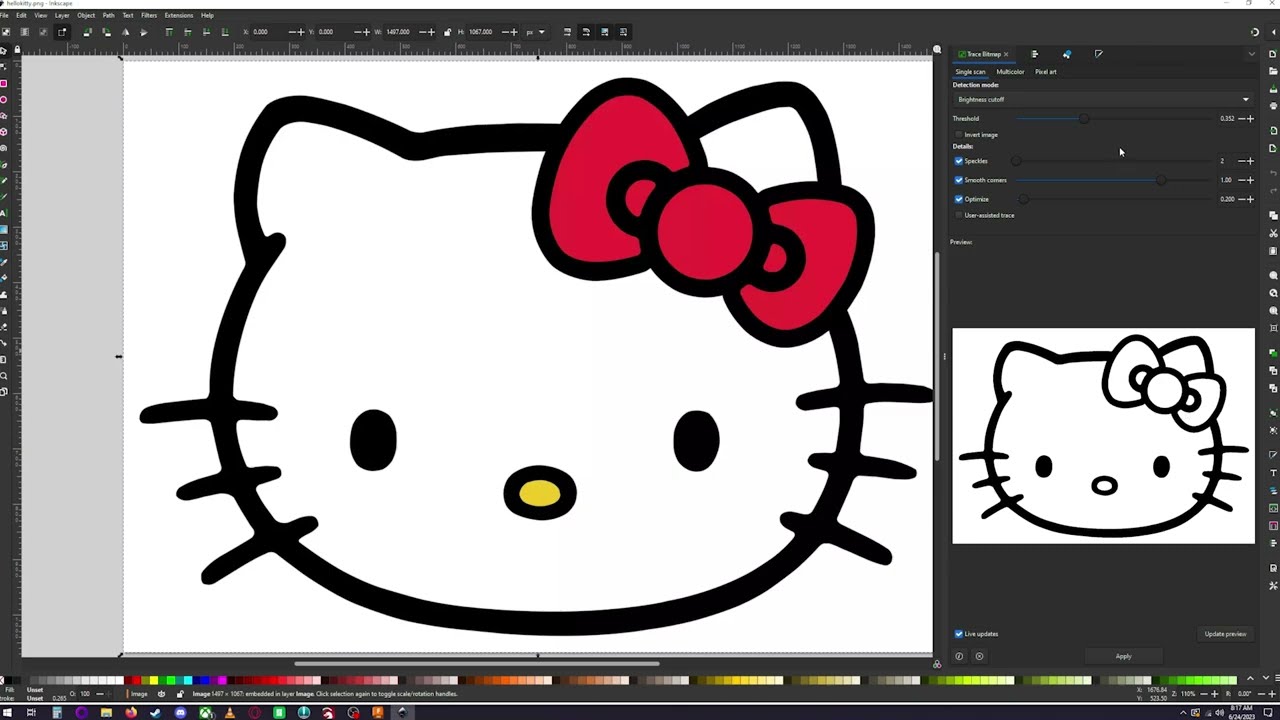

Turn a 2d logo into a 3d stamp 1. Inkscape - save 2d image as a SVG ⁃ open Inkscape ⁃ Open desired image ⁃ Select image ⁃ Click the path tab up top, and select trace bitmap ⁃ Choose which style works for your image (brightness cutoff or edge detection, etc) ⁃ Click apply ⁃ Drag tracing to the side and select the original and hit delete. ⁃ Move tracing back to the center ⁃ Save file as SVG 2. Blender - turn SVG into 3d file ⁃ open Blender ⁃ Delete the cube, light, etc. ⁃ File , import, SVG, select the file you just saved ⁃ Scroll in to see image ⁃ Select it by clicking it ⁃ Type “r” on the keyboard, type “x” on the keyboard, type “90” on the keypad, hit enter ⁃ Type “3” on the keypad ⁃ Select image by clicking ⁃ Right click image “convert to” “mesh” ⁃ Change from object mode to edit mode ⁃ Type “A” type “E”, drag mouse to the right or hit right arrow to extrude. Don’t need too much depth ⁃ Enter ⁃ Change back to object mode ⁃ Type “R” type “X” type “-90” enter ⁃ Use move tool to bring it above the green plane, center over dot ⁃ Select cube tool and add cube ⁃ Check the different views by typing “3” and “7” and “1”. ⁃ If the cube needs to be scaled, type “s” “x” for x axis or “s” “y” for y axis and drag to the right to expand ⁃ The cube should slightly overlap the image ⁃ Type 3 on the keypad ⁃ Select the black part of the image ⁃ Select the wrench tab on the right ⁃ Click add modifier, generate, Boolean, select union, and select “cube” from the dropdown ⁃ Save file ⁃ Export as an STL 3. Ultimates Cura - slice program ⁃ open the STL file ⁃ Scale it to the size you need ⁃ Flip the file horizontally so it’s backwards ⁃ Slice ⁃ Preview to ensure everything will print correctly ⁃ Save to the SD card 4. Print your new stamp 😊 My printer: Ender 3 Pro https://amzn.to/421xF2Y Ready 3D cleaner and adhesive https://amzn.to/3BMMg7X Filament https://amzn.to/428Q8Lf **As an Amazon affiliate, I earn commissions on purchases made through the links above** #pottery #ceramic #custompottery #3dstamps #3dprinter #ender3pro
