FERMAT Floor Type Horizontal Boring Mill WRF 160 Heavy CNC - Drilling with Through Spindle Coolant

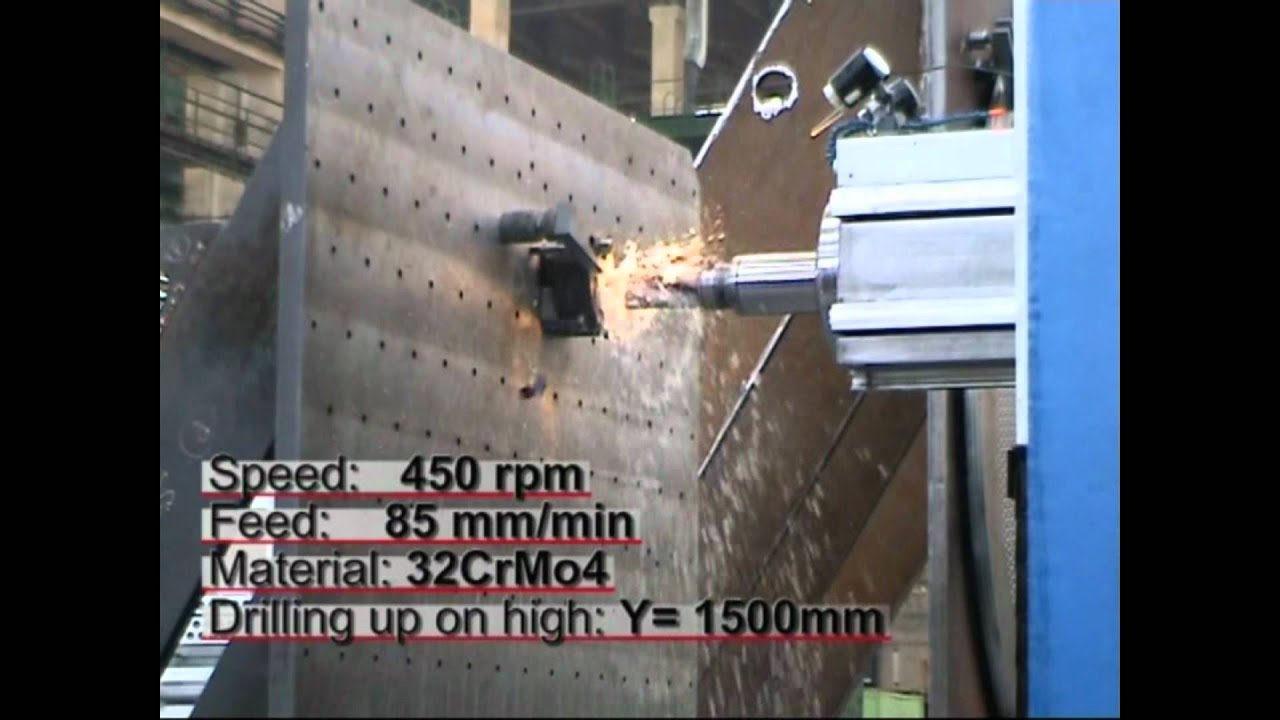

Drilling operation through spindle coolant on floor type horizontal boring machine, WRF 160 Heavy CNC. through spindle coolant supports higher cutting speeds, this enables the use of higher quality carbide tools that produce better overall quality. Better throughput: The through-spindle coolant improves throughput since it allows machinists to cut more holes in the same amount of time used by other tools. WRF is FERMAT’s large, robust series of floor-type horizontal boring mills, excellent for powerful and precise machining of enormous, heavy workpieces. Spindle diameter of 130 mm, 150 mm, or 160 mm; spindle travel from 800 mm to 1 meter. Ram stroke from 900 mm to 1.2 meters. Optional tilting headstock. Equipped with operator’s cabin with both horizontal and vertical travel. Equipped with floor plates and/or rotary tables that can hold up to 100 metric tons. Units: WRF 130 WRF 150 WRF 160 -Spindle diameter mm 130 150 160 Spindle taper ISO50 / BT50 / CAT50 / BIG+ Spindle speed (max.) rpm 3000 (opt. 4000) 2800 (opt. 3500) 2500 (opt. 3200) Max. Power Heidenhain or SIEMENS CNC (S1/S6) kW 41 / 61,5; 53 / 77,9 58 / 86; 74 / 109 Max. Torque Heidenhain or SIEMENS CNC (S1/S6) Nm: 2099 / 3149; 2713 / 3989 3281 / 4988; 3349 / 4923 Please visit, http://www.fermatmachinery.com/products, for information on the different FERMAT machine tools and accessories that can improve your manufacturing business. Also, try to Build Your Own machine using our on-line configurator found on our homepage, http://www.fermatmachinery.com/. Should you have any inquiries, please send us an e-mail: export@fermatmachinery.com, or for the U.S. market, e-mail Lucas Precision, a FERMAT Group company: sales@lucasprecision.com, or call toll-free: 1-800-336-1262, or telephone in the U.S.: (216) 451-5588, or send us a fax (216) 451-5174.
