FMS Reflex V2 Dual Ail Stab using Spektrum Tx

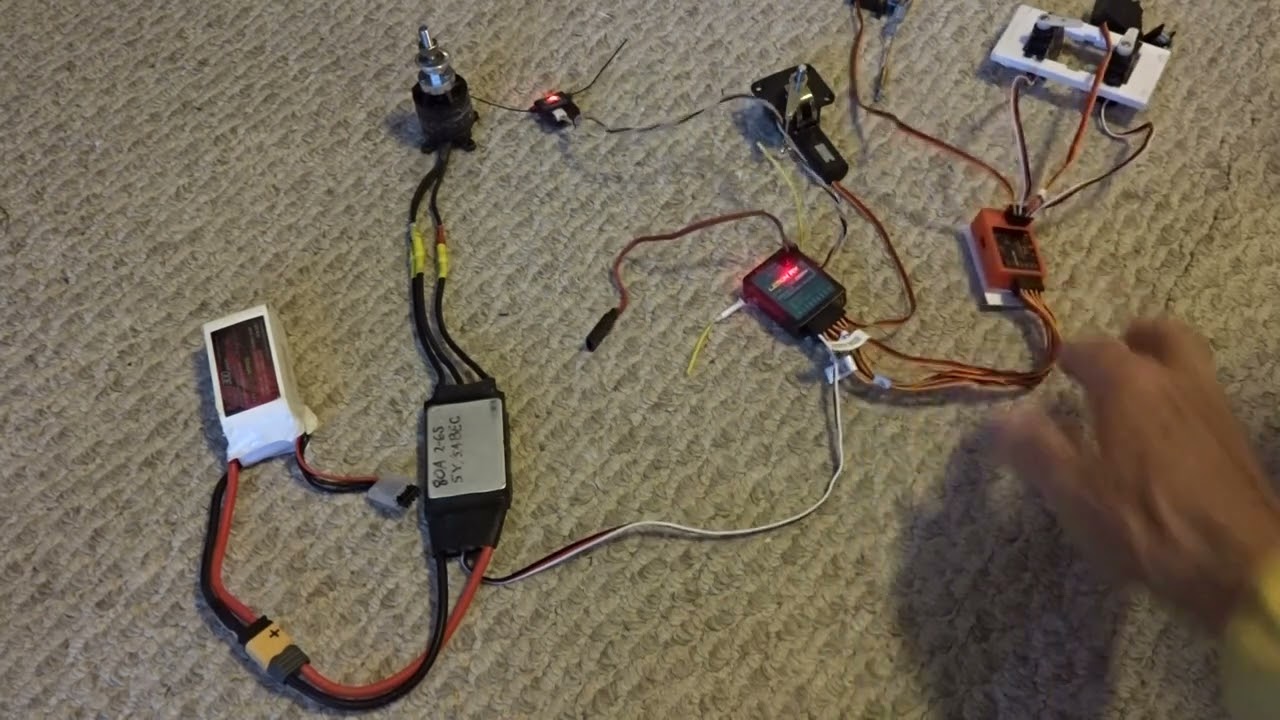

Since the last post, I changed the channels feeding the non-stabilized aileron in order to get both ailerons stabilized. When I did the experiment and changed the designation of the LAL channel to the RAL channel. I also tried changing the wing TYPE to SINGLE AIL and designating Ch6 as an AIL. But nothing changed insofar as only 1 AIL being stabilized in the 2 experiments. I did notice that there was interference or a crossover with the rudder and the ailerons. The rudder seemed to be mixed to the ailerons, EVEN though there is no MIX. It may be there from the pre-loaded file for the FMS Voodoo Mustang this Reflex came from. IDK So I went back to the setup in my last post and video. But I swapped out the Rudder and Left Aileron wires from the Lemon Rx and then swapped them out accordingly on the Reflex outputs to correspond to the Lemon Rx outputs. The apparent but non-existent AIL to RUD mix interference disappeared as a benefit also. Now both ailerons are stabilized (but LAL is gyro corrected to the YAW axis; see EDIT above) but the rudder is not gyro stabilized (on THR output of Reflex). The THROTTLE port (Ch3) on the Reflex OUTPUT side is not stabilized if paired to a servo.    • FMS Reflex 2 setup for dual ailerons or fl...
