Growatt Inverter Warning Code 401 Troubleshooting Guide

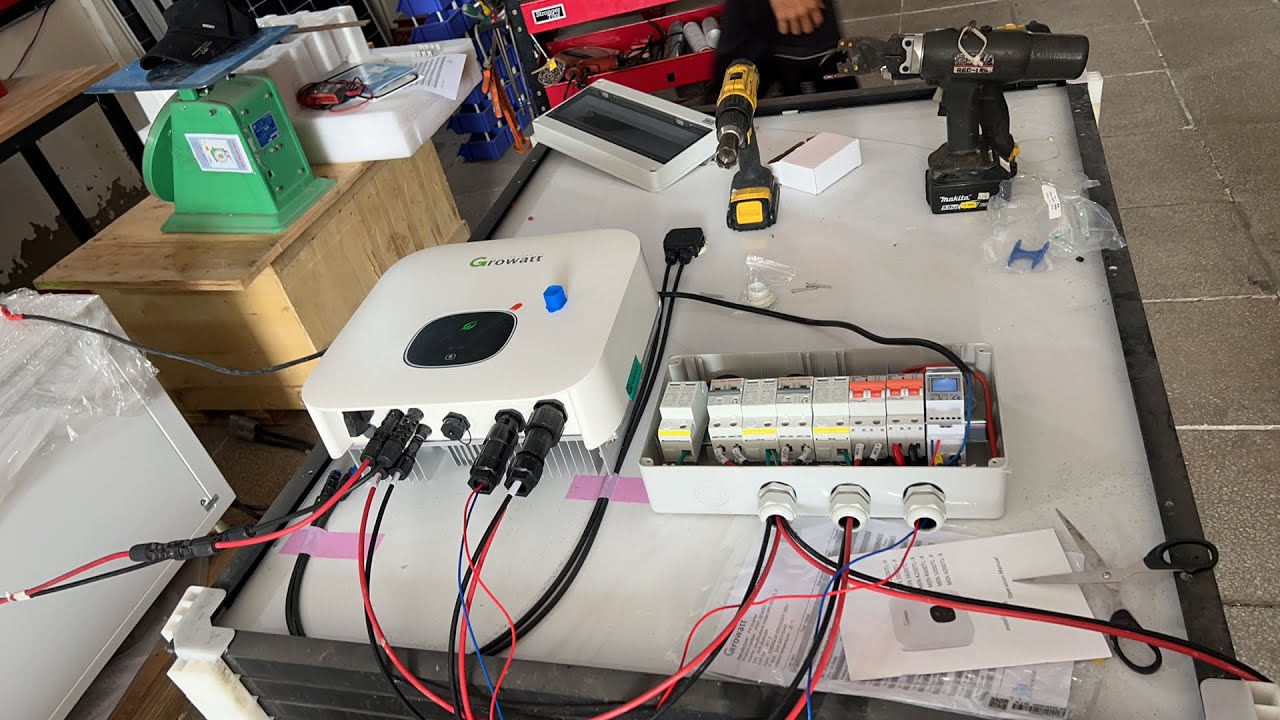

Troubleshooting guide for Warning code 401: 1.Check the communication cable connection: For Min 2.5-6K TL-X inverter, syscom pin 7 to meter Pin 10 RS485A, syscom pin 8 to meter pin 9 RS485B For Min 7-10K TL-X inverter, syscom pin 7 to meter pin 9 RS485B, syscom pin 8 to meter pin 10 RS485A For Min 2.5-6K TL-XH inverter, syscom pin 5 to meter pin 10 RS485A, syscom pin 6 to meter pin 9 RS485B For Mod three-phase inverter with SDM630 three phase meter, syscom pin7 to RS485A, syscom pin 8 to RS485B 2. Check the inverter's setting for export limitation: Gesture: single tap to choose, double tap to confirm, triple tap to go back. Set parameter -- advanced -- password 123 -- export limit on -- choose meter -- choose SW -- set export limit ratio 3. Check the CT's position and direction: Position: put it before all the loads, for example, put it before the main circuit breaker of the house or put it before the electricity meter. Direction: the arrow towards the load, the letter L is facing the load. 4. Check the syscom connection and meter settings: Please connects the plug to syscom port, not DRM port
