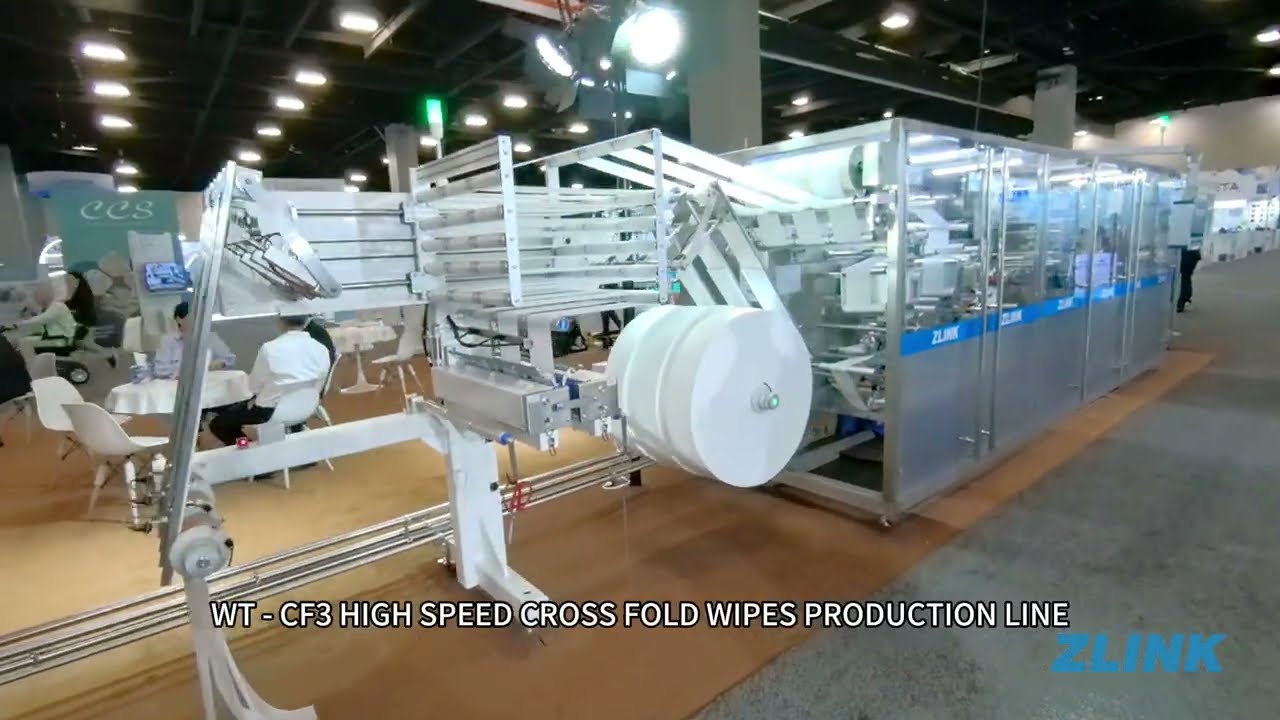

ZLINK | WT-CF3 Auto Tension Control, Auto Splice and Auto Reject

Independent automatic tension control system. Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system. 1.Electric system:Electrical safety circuit design and comply with CE safety standard 2.Control system:Multi-axis servo motion controller, full servo control 3.HMI:LCD Color touch screen display interface 4.Unwinding device:Independent automatic tension control system 5.Auto splicing:Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system 6.Automatic edge position controller:Automatic edge position controller for jumbo roll and four lanes after slitting, to ensure high speed stable running and folding accuracy 7.Wipes cutting module:Use screw type flexible cutting blade, without mechanical vibration and shock, increase of service life for cutting blade 8.Cleaning and disinfection:Hygiene grade design, wipes conveyor belt is designed for easy disassembly and it is easy to clean and disinfect 9.Wetting flow control:Electronic flowmeter control wetting flow,reduce recycle liquid, wetting range 2.5-4.5 times 10.Pipeline disinfection:Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead corner, apply to pasteurization or CIP (Clean In Place) 11.Spectral decomposition detection:Nonwoven, label, packing film, wetting weight, packaging on-line monitoring 12.Spectral decomposition detection:Nonwoven, label, packing film, wetting weight, packaging on-line monitoring 13.Quality control (Optional):Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labelling visual inspection 14.SCADA application program (Optional):(Supervisory Control And Data Acquisition) equipment operating and detection data output port 15.Applied nonwoven material:Spunlace or flushable material and degradable material 16.Nonwoven specification:Maximum W800mm, Φ1200mm, coreφ76.2mm(3”), online slitting 17.Nonwoven quantity:Two-axis non-woven fabric, automatic splicing without stopping, three rolls in operation, three rolls on standby 18.Applied packing film:PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials 19.Packing film specification:Maximum W420mm, Φ360mm, coreφ76.2mm(3”) 20.Packing film quantity:2 rolls of packing film, non-stop auto splicing 21.Applied sticker:Transparent sticker or non-transparent sticker 22.Sticker specification:Maximum W100mm,Φ400mm, coreφ76.2mm(3”), 2 rolls of sticker, non-stop switch 23.Fold type:Z fold (otherwise indicated) 24.Folded size:L90-100mm, W50-100mm 25.Unfolded size:L180-200mm, W140-200mm 26.Package size:L130-250mm, W50-100mm, H10-70mm 27.Production speed:150 packages/min or 1800 wipes/min, whichever comes first 28.External dimension:L15000mm, W4500mm, H2350mm 29.Rated power:AC380V (Customizable), 50/60Hz, three-phase five-wire, 28KW 30.Compressed air:0.6-0.8Mpa, 165L/min 31.Net weight:About 8500KGS --------------------------------------------------------------------------------------------------------------------------- 标签：#Wet wipes case packing machine#Wet wipes carton filling machine#Wet wipes box filler#Wet wipes packing machine #WetWipeMachinery #WetWipesMachine #WetWipeMakingMachine #HighSpeed #Fastest #WetWipes #Machinery #Machine #Automatic #AutomaticPackaging #Efficiency #WetTissue #wetwipesproductionline #Zlink #Wet tissue packing machine#Wet wipes flow pack machine#Wet tissue flow pack machine#Wet wipes converting machine#Wet tissue converting machine#Wet wipes folding machine#Wet tissue folding machine#Wet wipes machine#Wet tissue machine#Wet wipes making machine#Wet Tissue Making Machine#Wet wipes production line#Wet Tissue production line#Wet wipes manufacturing machine#Wet tissue manufacturing machine#Wet wipes lid applicator#Wet tissue capping machine#Wet wipes automatic case packer --------------------------------------------------------------------------------------------------------------------------- Website: https://www.zlink2012.com Contact information: China Branch: marketing@zlink2012.com, export@zlinkmc.com, sean@zlinkmc.com India Branch: piyush@zlinkmc.com, sales.india@zlinkmc.com Japan Branch: shigeru.r@zlinkmc.com Korea Branch: peterpark@zlinkmc.com Editor: rick@zlinkmc.com Publisher: rick@zlinkmc.com
